Harmony XVUSchneider Electric XVUZ12 Harmony XVU Vertical Fixing Plate Black Automation Component

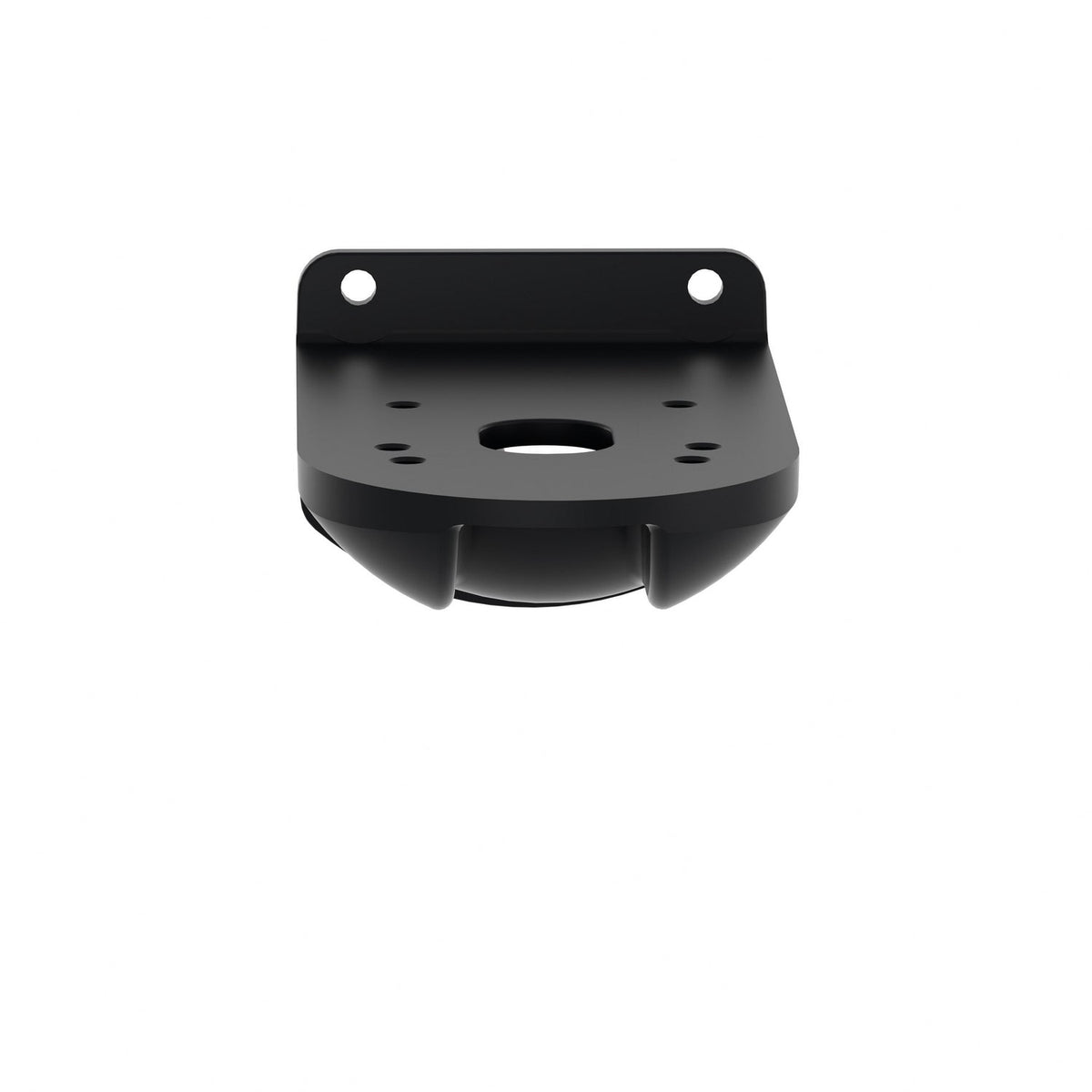

Schneider Electric XVUZ12 – Harmony XVU fixing plate for vertical (wall) support, black.
Description
About the XVUZ12
About the XVUZ12
The Schneider Electric XVUZ12 is a fixing plate for vertical (wall) support for the Harmony XVU modular tower light range, in black, used to mount or extend an XVU base unit rather than to signal on its own. It has an IP65 degree of protection and is compatible with XVUZ02, XVUZ02Q, XVUZ05, XVUZ400 and XVUZ800.
Certifications & Standards
- CSA
- UL
- CE
Compatibility
The XVUZ12 converts any of the XVUZ02/02Q/05/400/800 pole-and-plate assemblies from a flat-surface mount to a wall mount, so specify it alongside one of those parts rather than on its own — it has no pole of its own and does not fit directly to an XVU base unit.
Specification
Full specification
Main 6
| Range of Product | Harmony XVU |
|---|---|
| Product or Component Type | Modular tower light |
| Accessory / Separate Part Type | Fixing plate |
| Accessory / separate part category | Mounting and fixing accessory |
| Component name | XVU |
| Mounting diameter | 2.4 in (60 mm) |
Complementary 7
| Mounting Support | Wall mounted |
|---|---|
| Product compatibility | XVUZ05, XVUZ800, XVUZ400, XVUZ02Q, XVUZ02 |
| Material | Aluminium V-0 UL 94 |
| Housing Colour | Black |
| [Us] Rated Supply Voltage | 24 V AC/DC, 110...240 V AC |
| Length | 0.3 in (8 mm) |
| Net Weight | 0.79 lb(US) (0.36 kg) |
Environment 4
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13…122 °F (-25…50 °C) |
| IP degree of protection | IP65 |
| Product Certifications | CSA, UL, CE |
Show all 30 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XVUZ12 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480887154 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.36 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVUZ12
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
Quick answers
Questions about the XVUZ12
What is the HS code of XVUZ12 for customs?
The tariff (HS) code on file for XVUZ12 is 853890.
What is the EAN of XVUZ12?
The EAN (GTIN) of XVUZ12 is 3606480887154.
Where does XVUZ12 ship from, and how fast?
XVUZ12 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
