Harmony XVUSchneider Electric XVUZ02Q Harmony XVU Fixing Plate, 100 mm Pole Silver Automation Component

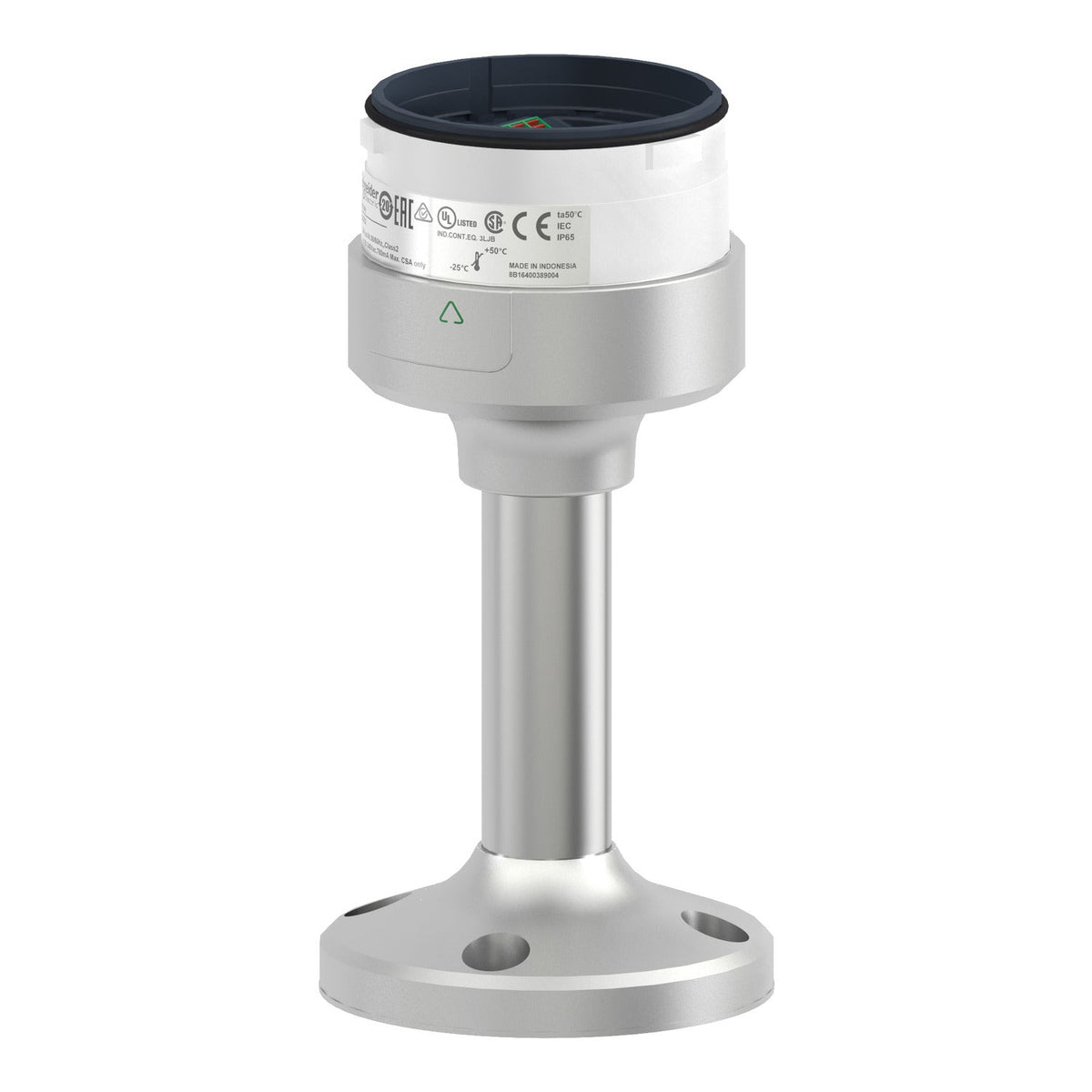

Schneider Electric XVUZ02Q – Harmony XVU fixing plate with 100 mm aluminium pole, silver.
Description
About the XVUZ02Q
About the XVUZ02Q
The Schneider Electric XVUZ02Q is a fixing plate with 100 mm aluminium pole for the Harmony XVU modular tower light range, in silver, used to mount or extend an XVU base unit rather than to signal on its own. It has an IP65 degree of protection and is compatible with the XVU top AC body, top DC body and top swivel mounting support.
Certifications & Standards
- CSA
- CE
- UL
Compatibility
The XVUZ02Q is the silver-housing version of the XVUZ02, for towers built from silver XVUC-series parts. Pole height, push-in terminals and IP65 rating are unchanged from the black variant.
Specification
Full specification
Main 6
| Range of Product | Harmony XVU |
|---|---|
| Product or Component Type | Modular tower light |
| Accessory / Separate Part Type | Fixing plate |
| Accessory / separate part category | Mounting and fixing accessory |
| Component name | XVU |
| Mounting diameter | 2.4 in (60 mm) |
Complementary 9
| Pole heigth | 3.9 in (100 mm) |
|---|---|
| Mounting Support | Plate with pole |
| Product compatibility | Top AC body, Top DC body, Top swivel mounting support |
| Material | PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene), PC (polycarbonate), Aluminium |
| Housing Colour | Silver |
| Connections - Terminals | Push-in |
| [Us] Rated Supply Voltage | 24 V AC/DC, 110...240 V AC |
| Length | 4.6 in (117 mm) |
| Net Weight | 0.291 lb(US) (0.132 kg) |
Environment 4
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13…122 °F (-25…50 °C) |
| IP degree of protection | IP65 |
| Product Certifications | CSA, CE, UL |
Show all 43 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XVUZ02Q |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480556029 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.740 in (9.500 cm) |
| Package 1 Width | 3.740 in (9.500 cm) |
| Package 1 Length | 10.551 in (26.800 cm) |
| Package weight(Lbs) | 10.335 oz (293.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 9.804 lb(US) (4.447 kg) |
| Shipping weight | 0.132 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVUZ02Q
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
Quick answers
Questions about the XVUZ02Q
What is the HS code of XVUZ02Q for customs?
The tariff (HS) code on file for XVUZ02Q is 853890.
What is the EAN of XVUZ02Q?
The EAN (GTIN) of XVUZ02Q is 3606480556029.
Where does XVUZ02Q ship from, and how fast?
XVUZ02Q ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
