Schneider Electric XVUZ01 Harmony XVU Fixing Unit, 3-Pin Direct Mount Black Automation Component

% $-23.17

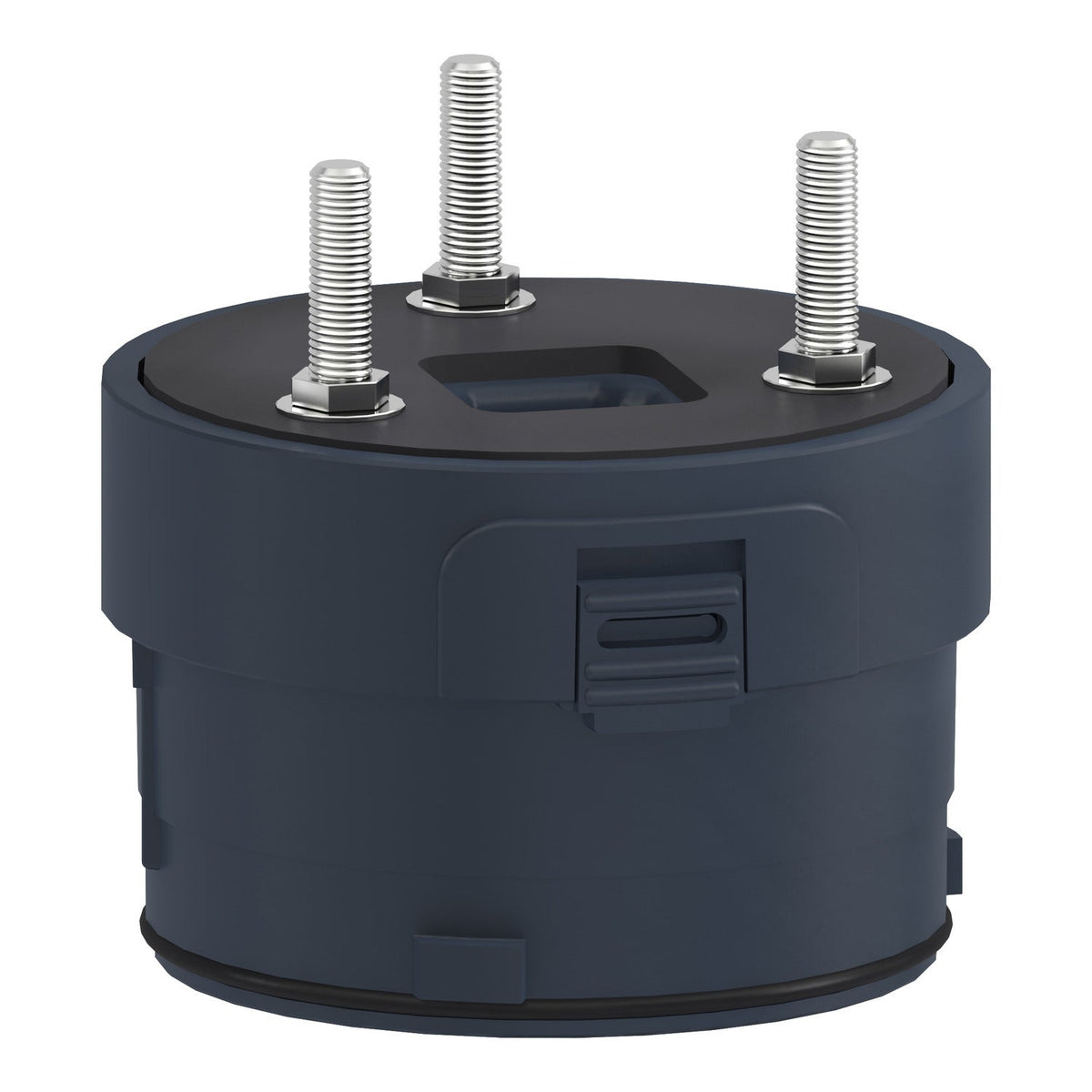

Schneider Electric XVUZ01 Harmony XVU black fixing unit (3-pin direct mounting plate)
Schneider Electric XVUZ01 Harmony XVU black fixing unit (3-pin direct mounting plate)

Schneider Electric XVUZ01 Harmony XVU Fixing Unit, 3-Pin Direct Mount Black Automation Component

Brand: Schneider Electric
Reference No: XVUZ01
Catalog No: XVUZ01
Series: Harmony XVU
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$23.17

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XVUZ01 is a fixing unit (3-pin direct mounting plate) for the Harmony XVU modular tower light range, in black, used to mount or extend an XVU base unit rather than to signal on its own. It has an IP65 degree of protection and is compatible with the XVU top AC body, top DC body and top swivel mounting support.

Technical Specifications

SKU XVUZ01
Brand Schneider Electric
Range of Product Harmony XVU
Accessory / Separate Part Type fixing unit (3-pin direct mounting plate)
Mounting Diameter 60 mm
Number of Pins 3
Mounting Support Direct mounting
Connections – Terminals Push-in
Material PBT, ABS, PC
Rated Supply Voltage of Mounted Unit (Us) 24 V AC/DC or 110...240 V AC
Housing Colour Black
Length 17 mm
Net Weight 0.063 kg
Ambient Temperature, Operation -13…122 °F (-25…50 °C)
IP Degree of Protection IP65

Certifications & Standards

  • CSA
  • UL
  • CE

Compatibility

The XVUZ01 bolts an XVU base directly to a flat surface with 3 push-in pins and no pole, the shortest fixing option in the range. Use it where panel space is limited and the tower does not need height above the mounting surface; for a raised installation, choose the XVUZ02 (100 mm pole) or XVUZ05 (210…385 mm adjustable pole) instead.

Technical Details

Short Description
Schneider Electric XVUZ01 – Harmony XVU fixing unit (3-pin direct mounting plate), black.
Catalog No
XVUZ01
Delivery Date (Days)
30 days
Model Number
XVU
Tariff Code
853890
