Part number
XPSMCMMX0802
Model no
XPSMCM
$579.37 On request Dispatch — · From TürkiyeGet a Quote
Preventa Safety automation

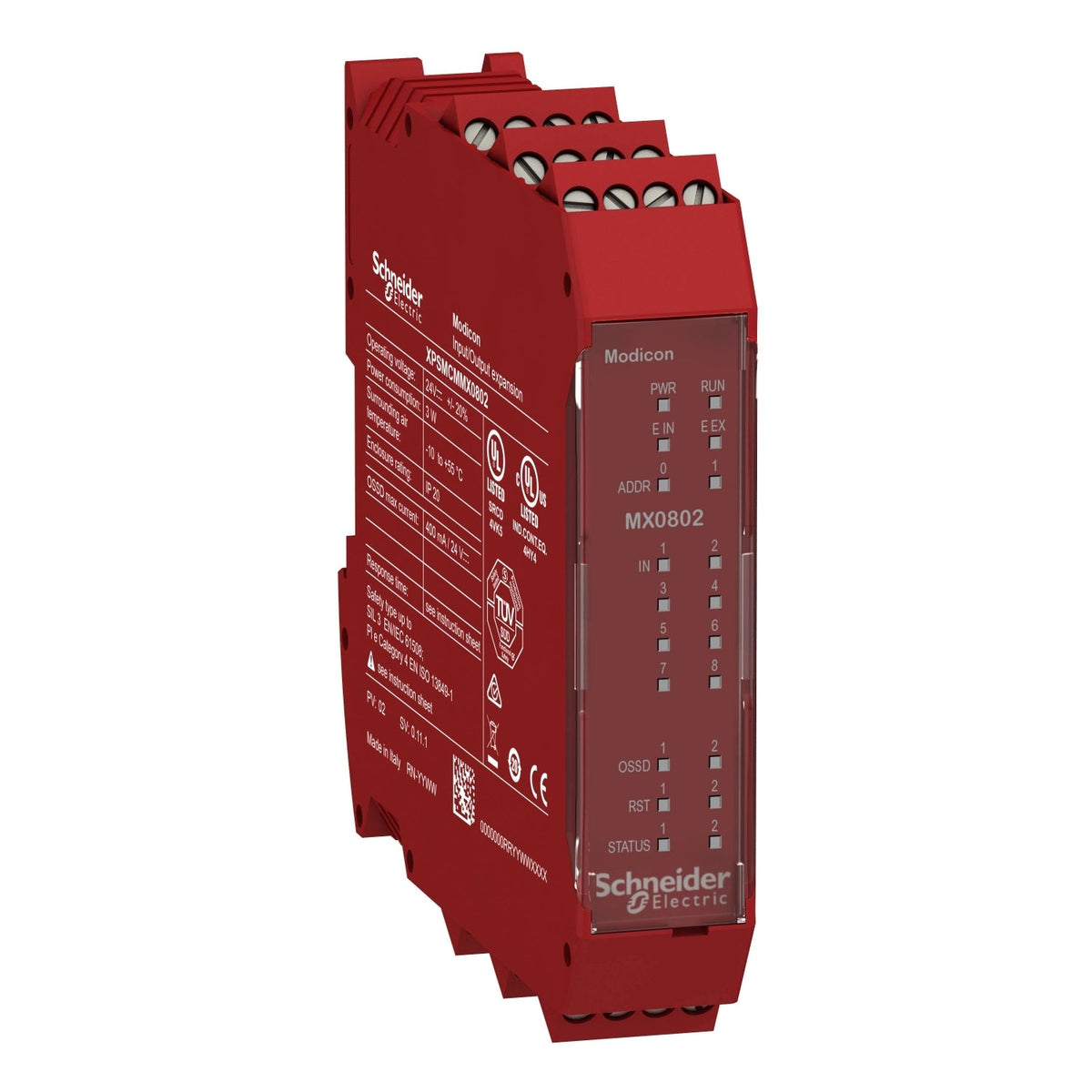

Schneider Electric XPSMCMMX0802 Modicon MCM 8 Input 2 Output Pair Mixed I/O Expansion Module Safety PLC

Modicon MCM safe mixed I/O expansion module, 8 inputs, 2 OSSD output pairs, 24 V DC, category 4 / PLe, SIL 3.

Rated operational voltage
24 V DC
EAN
3606480748851
Description

About the XPSMCM

The Schneider Electric XPSMCMMX0802 is a Modicon MCM safe mixed I/O expansion module that adds 8 digital safety inputs, 2 start/restart interlock inputs and 2 OSSD output pairs to an XPSMCM safety controller over the backplane expansion bus. It reaches category 4, PLe per ISO 13849-1 and SIL 3 per IEC 61508. The module expands an XPSMCM controller and cannot work stand-alone.

Certifications & Standards

  • cULus
  • TÜV
  • RCM
  • IEC 61800-5-1
  • IEC 61508
  • ISO 13849-1
  • IEC 62061

Selection Notes

Choose the XPSMCMMX0802 when a machine zone needs both safety inputs and safety outputs from one expansion slot instead of two separate modules — its 8 inputs cover guard switches and E-stops while its 2 OSSD pairs drive contactors or drive STO circuits directly. Configurable filters and on/off delays per input let it absorb mechanical bounce from limit switches without adding an external timer relay. Like the other XPSMCM modules it only operates behind an XPSMCM base controller on the backplane bus.

Specification

Full specification

58 values · Last verified 30 Oct 2026

Main 10

Range of Product Preventa Safety automation
Product or Component Type Safe mixed I/O expansion module
Device short name XPSMCM
Electrical Connection Screw terminal
[Us] rated supply voltage 24 V - 20...20 % DC
Input type 8 digital, 2 digital external device monitoring
Output type 4 test line control, 2 safety outputs OSSD contactor/drive connection, 2 configurable diagnostic connection
Discrete input type Isolated
Discrete output type PNP
Function of module Monitoring safety detection discrete input, Monitoring safety dialogue discrete input, Monitoring safety actuators discrete output

Complementary 19

Power Consumption in W 3 W
Power dissipation in W 3 W
Integrated connection type Backplane expansion bus
Number of terminal blocks 6
Connections - terminals 2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
load type Resistive load
Safety level Can reach category 4 ISO 13849-1, Can reach PL = e ISO 13849-1, Can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Quality labels CE
Discrete input voltage 24 V DC
Discrete output voltage 24 V DC
Discrete output current 400 mA, 100 mA
Output load 60 Ohm
Local signalling 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 8 LEDs yellow IN input status, 2 LEDs green/red OUT output status, 2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output status
Cable cross section 0.0003…0.002 in² (0.2…1.5 mm²) - 24 AWG...16 AWG flexible without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG flexible without cable end, 0.0004…0.002 in² (0.25…1 mm²) - 23 AWG...18 AWG flexible with cable end, without bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, with bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, without bezel, 0.0008…0.002 in² (0.5…1.5 mm²) - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.0003…0.002 in² (0.2…1 mm²) - 24 AWG...18 AWG solid without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG solid without cable end
Mounting support Omega 35 mm DIN rail EN 50022
Depth 0.9 in (22.5 mm)
Height 3.9 in (99 mm)
Width 4.5 in (114.5 mm)
Net Weight 0.55 lb(US) (0.25 kg)

Environment 15

Standards IEC 61800-5-1, IEC 61508, ISO 13849-1, IEC 62061
Product Certifications cULus, TÜV, RCM
IP degree of protection IP20 enclosure)
Ambient air temperature for operation 14…131 °F (-10…55 °C)
Ambient air temperature for storage -4…185 °F (-20…85 °C)
Relative Humidity 10…95 %
Pollution degree 2
[Uimp] rated impulse withstand voltage 4 kV IEC 61800-5-1
Safety reliability data DC > 99 %, MTTFd < 100 years high, PFHd = 5.72E-9 1/h
Insulation 250 V AC between power supply and housing IEC 61800-5-1
Overvoltage category II
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Vibration resistance +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Service Life 20 year(s)
Show all 58 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XPSMCMMX0802
Type designation XPSMCM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480748851

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IT
Shipping weight 0.25 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
