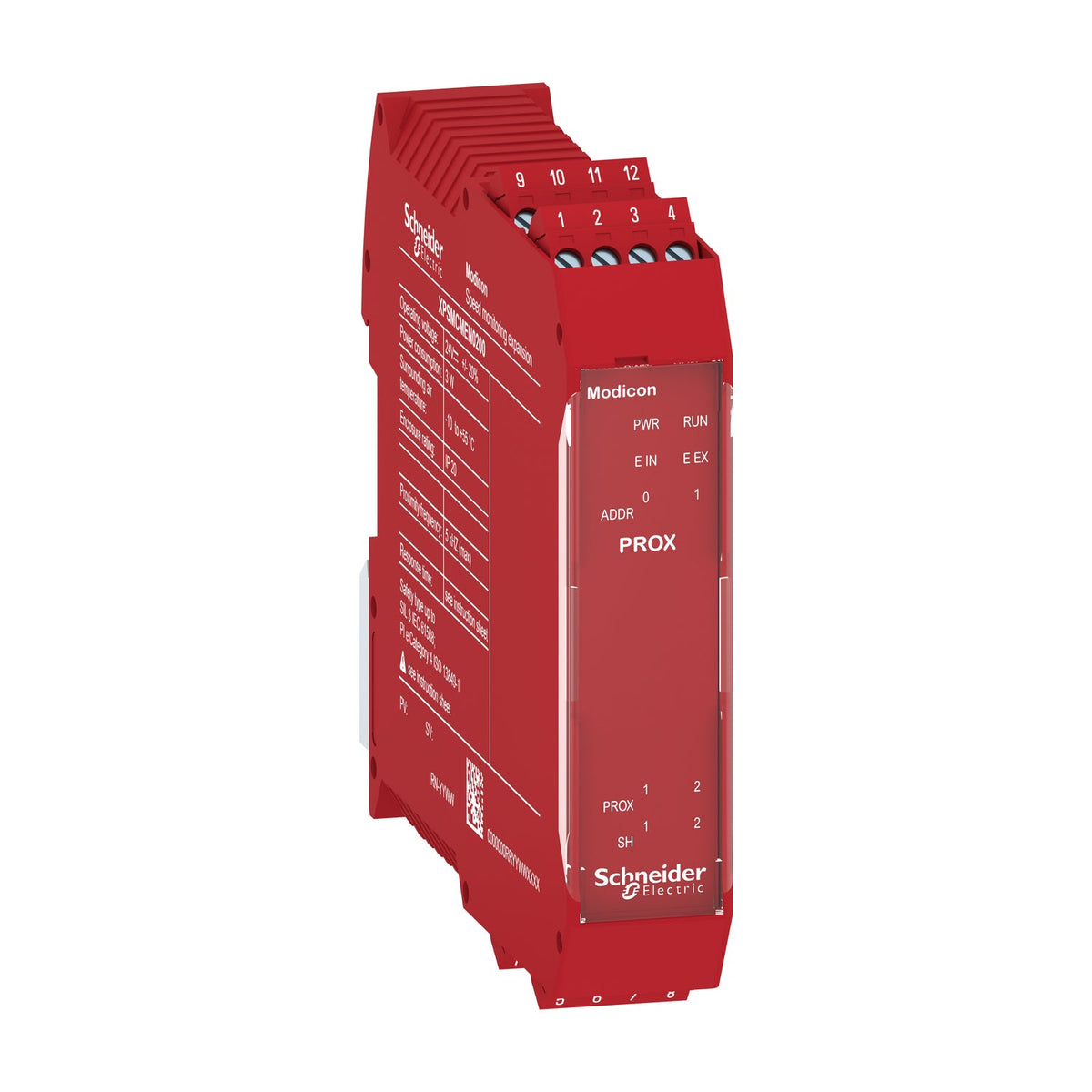

The Schneider Electric XPSMCMEN0200 is a Modicon MCM safe speed monitoring expansion module with 2 inductive proximity sensor inputs wired via terminal blocks, running at up to 5 kHz input frequency. It reaches category 4, PLe per ISO 13849-1 and Type 4 per IEC 61496-1. The module expands an XPSMCM safety controller over the backplane bus and cannot work stand-alone.
Choose the XPSMCMEN0200 over the XPSMCMEN0100SC when the machine uses simple inductive proximity switches on a shaft or pulley instead of a Sin/Cos encoder — it skips the RJ45 encoder channel entirely and wires both sensors straight to terminal blocks, which is faster to commission on retrofits. Its 5 kHz input frequency matches the proximity-sensor side of its sibling module, so the same speed-threshold logic in SoSafe Configurable applies. It fits band-saw, circular-saw and grinding applications where a guard only needs to unlock once a tooth or blade has coasted below a set speed.
| Range of Product | Preventa Safety automation |
|---|---|
| Product or Component Type | Safe speed monitoring module |
| Device short name | XPSMCM |
| Electrical Connection | Screw terminal |
| [Us] rated supply voltage | 24 V - 20...20 % DC |
| Discrete input voltage | 24 V DC |
| Function of module | Speed monitoring |
| Power Consumption in W | 3 W |
|---|---|
| Power dissipation in W | 3 W |
| Integrated connection type | Backplane expansion bus |
| Safety level | Can reach category 4 ISO 13849-1, Can reach PL = e ISO 13849-1, Type 4 IEC 61496-1, SILCL 3 IEC 62061 |
| Quality labels | CE |
| Number of terminal blocks | 4 |
| Local signalling | 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 2 LEDs yellow PROX proximity sensors connection status, 2 LEDs yellow SH speed monitoring status |
| Connections - terminals | 2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block |
| Maximum input frequency | 5 kHz sensor |
| Sensor Type | Inductive proximity sensor |
| Electrical connection | 2 connectors RJ45 EIA/TIA-568-A |
| Cable cross section | 0.0003…0.004 in² (0.2…2.5 mm²) flexible without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) solid without cable end, 0.0004…0.004 in² (0.25…2.5 mm²) flexible with cable end, with bezel, 0.0004…0.004 in² (0.25…2.5 mm²) flexible with cable end, without bezel, 0.0003…0.002 in² (0.2…1.5 mm²) flexible without cable end, 0.0004…0.002 in² (0.25…1 mm²) flexible with cable end, without bezel, 0.0008…0.002 in² (0.5…1.5 mm²) flexible with cable end, with double bezel, 0.0003…0.002 in² (0.2…1 mm²) solid without cable end |
| Mounting support | Omega 35 mm DIN rail EN 50022 |
| Depth | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Width | 4.5 in (114.5 mm) |
| Net Weight | 0.51 lb(US) (0.23 kg) |
| Standards | IEC 62061, IEC 61800-5-1, IEC 61496-1, ISO 13849-1, IEC 61508 |
|---|---|
| Product Certifications | cULus, TÜV, RCM |
| IP degree of protection | IP20 enclosure) |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) |
| Ambient air temperature for storage | -4…185 °F (-20…85 °C) |
| Relative Humidity | 10…95 % |
| Pollution degree | 2 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 61800-5 |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Overvoltage category | II |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Vibration resistance | +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1 |
| Shock resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Service Life | 20 year(s) |
| Part number | XPSMCMEN0200 |
|---|---|
| Type designation | XPSMCM |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480748912 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IT |
|---|---|
| Shipping weight | 0.23 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
