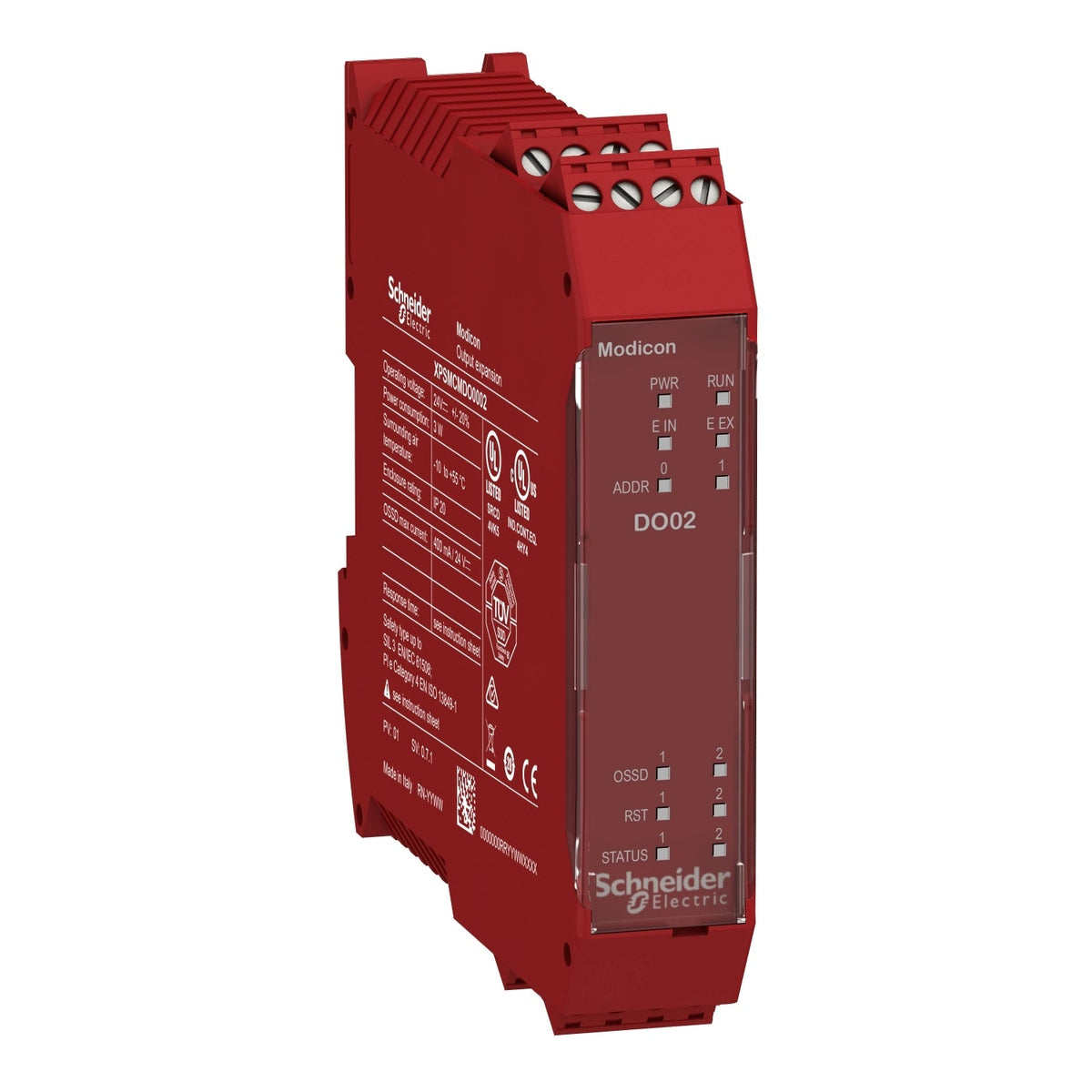

Schneider Electric XPSMCMDO0002 Modicon MCM Safe Output Expansion Module 2 Output Pairs Safety PLC

Modicon MCM expansion module, 2 OSSD safe output pairs, 24 V DC, Cat.4/PL e, backplane-mounted.

Rated operational voltage
24 V DC
Communication
Backplane expansion bus
EAN
3606480748646
Description

About the XPSMCM

The Schneider Electric XPSMCMDO0002 is a Modicon MCM safe output expansion module with 2 OSSD safety output pairs, 2 interlock start/restart inputs and 2 diagnostic status outputs, wired through captive screw-clamp terminals at 24 V DC. It connects to an XPSMCM safety controller over the backplane expansion bus to add safety-output capacity and cannot operate stand-alone. Each output pair switches a resistive load up to 400 mA.

Certifications & Standards

  • TÜV
  • cULus
  • RCM
  • ISO 13849-1
  • IEC 61800-5-1
  • IEC 62061
  • IEC 61508

Selection Notes

The XPSMCMDO0002 adds 2 OSSD safety output pairs to an XPSMCM controller over the backplane bus, for machines that need more contactor- or drive-enable outputs than the base CPU provides on its own; it expands an existing Modicon MCM safety controller CPU and cannot run stand-alone. Each output pair switches up to 400 mA into a resistive load, matching the controller's own OSSD ratings, so output modules can be mixed with input modules on the same backplane up to the system's 14-module limit.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 10

Range of Product Preventa Safety automation
Product or Component Type Safe output expansion module
Device short name XPSMCM
Electrical Connection Screw terminal
[Us] rated supply voltage 24 V - 20...20 % DC
Input type 2 digital external device monitoring
Output type 2 safety outputs OSSD contactor/drive connection, 2 configurable diagnostic connection
Discrete input type Isolated
Discrete output type PNP
Function of module Monitoring safety actuators discrete output

Complementary 20

Power Consumption in W 3 W
Power dissipation in W 3 W
Integrated connection type Backplane expansion bus
Number of terminal blocks 4
Connections - terminals 2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
load type Resistive load
Group of channels 2 dual channel load 400mA/output
Safety level Can reach category 4 ISO 13849-1, Can reach PL = e ISO 13849-1, Can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Quality labels CE
Discrete input voltage 24 V DC
Discrete output voltage 24 V DC
Discrete output current 400 mA, 100 mA
Output load 60 Ohm
Local signalling 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 2 LEDs green/red OUT output status, 2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output status
Cable cross section 0.0003…0.002 in² (0.2…1.5 mm²) - 24 AWG...16 AWG flexible without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG flexible without cable end, 0.0004…0.002 in² (0.25…1 mm²) - 23 AWG...18 AWG flexible with cable end, without bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, with bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, without bezel, 0.0008…0.002 in² (0.5…1.5 mm²) - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.0003…0.002 in² (0.2…1 mm²) - 24 AWG...18 AWG solid without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG solid without cable end
Mounting support Omega 35 mm DIN rail EN 50022
Depth 0.9 in (22.5 mm)
Height 3.9 in (99 mm)
Width 4.5 in (114.5 mm)
Net Weight 0.51 lb(US) (0.23 kg)

Environment 15

Standards ISO 13849-1, IEC 61800-5-1, IEC 62061, IEC 61508
Product Certifications TÜV, cULus, RCM
IP degree of protection IP20 enclosure)
Ambient air temperature for operation 14…131 °F (-10…55 °C)
Ambient air temperature for storage -4…185 °F (-20…85 °C)
Relative Humidity 10…95 %
Pollution degree 2
[Uimp] rated impulse withstand voltage 4 kV IEC 61800-5-1
Safety reliability data DC > 99 %, MTTFd < 100 years high, PFHd = 3.16E-9 1/h
Insulation 250 V AC between power supply and housing IEC 61800-5-1
Overvoltage category II
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Vibration resistance +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Service Life 20 year(s)
Show all 59 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XPSMCMDO0002
Type designation XPSMCM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480748646

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IT
Shipping weight 0.23 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
