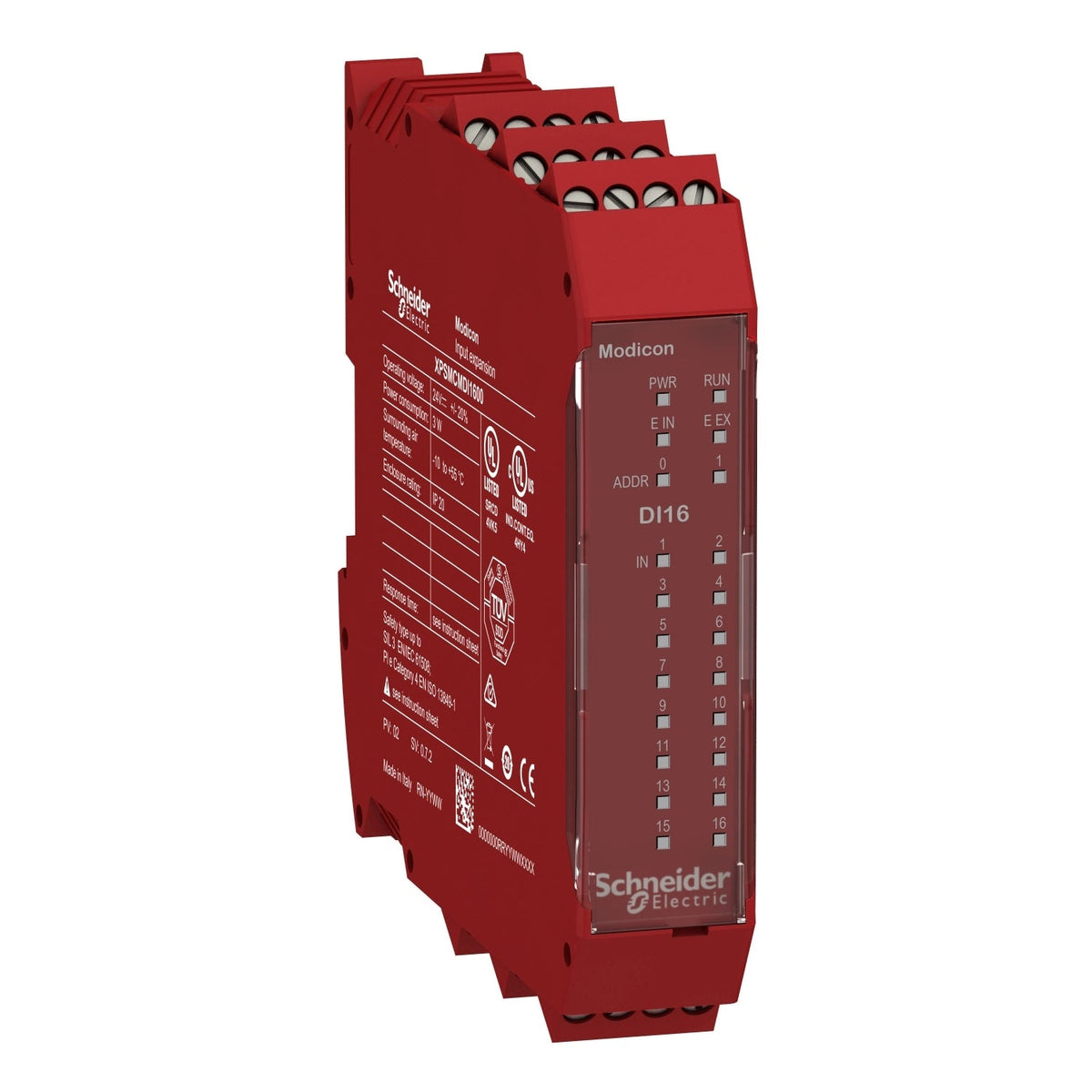

Schneider Electric XPSMCMDI1600 Modicon MCM Safe Input Expansion Module 16 Inputs Screw Terminals Safety PLC

Modicon MCM expansion module, 16 isolated safe digital inputs, 24 V DC, Cat.4/PL e.

Rated operational voltage
24 V DC
Communication
Backplane expansion bus
EAN
3606480748622
Description

About the XPSMCM

The Schneider Electric XPSMCMDI1600 is a Modicon MCM safe input expansion module with 16 isolated digital safety inputs and 4 PNP test outputs, wired through captive screw-clamp terminals at 24 V DC. It connects to an XPSMCM safety controller over the backplane expansion bus to add input capacity and cannot operate stand-alone. Each input has configurable filtering and delay for functions such as emergency stop and guard monitoring.

Certifications & Standards

  • RCM
  • TÜV
  • cULus
  • IEC 61800-5-1
  • IEC 61508
  • ISO 13849-1
  • IEC 62061

Selection Notes

The XPSMCMDI1600 adds 16 isolated safe digital inputs to an XPSMCM controller over the backplane bus; it expands an existing Modicon MCM safety controller CPU and cannot run stand-alone. Pick this module over the 8-input variant when a cell has more than 8 separate safety-input devices to wire into one module slot, or the 12-input safety-mat variant when those inputs are specifically 4-wire safety mats. Isolated inputs keep each sensor's return path independent, which simplifies fault tracing on a module carrying this many field connections, and the 2 node-address LEDs on the front face confirm backplane addressing at a glance during commissioning.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 10

Range of Product Preventa Safety automation
Product or Component Type Safe input expansion module
Device short name XPSMCM
Electrical Connection Screw terminal
[Us] rated supply voltage 24 V - 20...20 % DC
Input type 16 digital
Output type 4 test line control
Discrete input type Isolated
Discrete output type PNP
Function of module Monitoring safety detection discrete input, Monitoring safety dialogue discrete input

Complementary 15

Power Consumption in W 3 W
Power dissipation in W 3 W
Integrated connection type Backplane expansion bus
Number of terminal blocks 6
Connections - terminals 2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Safety level Can reach category 4 ISO 13849-1, Can reach PL = e ISO 13849-1, Can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Quality labels CE
Discrete input voltage 24 V DC
Local signalling 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 16 LEDs yellow IN input status
Cable cross section 0.0003…0.002 in² (0.2…1.5 mm²) - 24 AWG...16 AWG flexible without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG flexible without cable end, 0.0004…0.002 in² (0.25…1 mm²) - 23 AWG...18 AWG flexible with cable end, without bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, with bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, without bezel, 0.0008…0.002 in² (0.5…1.5 mm²) - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.0003…0.002 in² (0.2…1 mm²) - 24 AWG...18 AWG solid without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG solid without cable end
Mounting support Omega 35 mm DIN rail EN 50022
Depth 0.9 in (22.5 mm)
Height 3.9 in (99 mm)
Width 4.5 in (114.5 mm)
Net Weight 0.55 lb(US) (0.25 kg)

Environment 15

Standards IEC 61800-5-1, IEC 61508, ISO 13849-1, IEC 62061
Product Certifications RCM, TÜV, cULus
IP degree of protection IP20 enclosure)
Ambient air temperature for operation 14…131 °F (-10…55 °C)
Ambient air temperature for storage -4…185 °F (-20…85 °C)
Relative Humidity 10…95 %
Pollution degree 2
[Uimp] rated impulse withstand voltage 4 kV IEC 61800-5-1
Safety reliability data DC > 99 %, MTTFd < 100 years high, PFHd = 7.09E-9 1/h
Insulation 250 V AC between power supply and housing IEC 61800-5-1
Overvoltage category II
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Vibration resistance +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Service Life 20 year(s)
Show all 54 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XPSMCMDI1600
Type designation XPSMCM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480748622

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IT
Shipping weight 0.25 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
