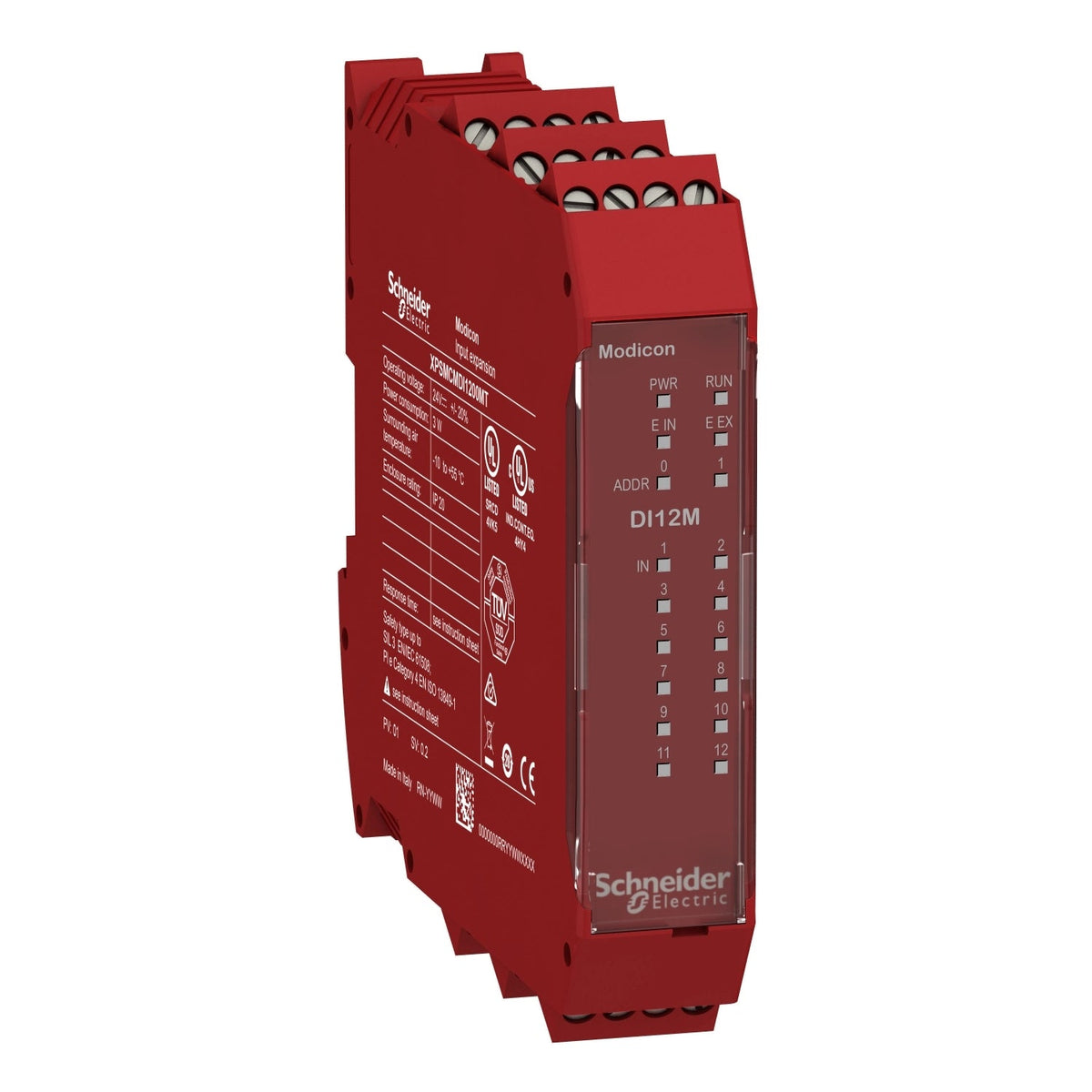

The Schneider Electric XPSMCMDI1200MT is a Modicon MCM safe input expansion module with 12 digital inputs and 8 test outputs dedicated to 4-wire safety mats, wired through captive screw-clamp terminals at 24 V DC. It connects to an XPSMCM safety controller over the backplane expansion bus to add safety-mat monitoring capacity and cannot operate stand-alone. Inputs and outputs pair independently with configurable activation and de-activation delays.
The XPSMCMDI1200MT is the safety-mat-specific input module in the MCM range: its 12 inputs and 8 test outputs are purpose-built for 4-wire pressure-sensitive safety mats, unlike the general-purpose 8- and 16-input expansion modules. It expands an existing Modicon MCM safety controller CPU over the backplane bus and cannot run stand-alone; use it specifically where floor-mat access guarding is part of the safety concept. Independent activation and de-activation delays per output pair let each mat zone be tuned separately from the rest of the safety circuit, and the configurable diagnostic outputs report mat status back to the controller for fault tracing.
| Range of Product | Preventa Safety automation |
|---|---|
| Product or Component Type | Safe input expansion module |
| Device short name | XPSMCM |
| Electrical Connection | Screw terminal |
| [Us] rated supply voltage | 24 V - 20...20 % DC |
| Input type | 12 digital |
| Output type | 8 test line control |
| Discrete input type | PNP |
| Discrete output type | PNP |
| Function of module | Safety mat monitoring discrete input |
| Power Consumption in W | 3 W |
|---|---|
| Power dissipation in W | 3 W |
| Integrated connection type | Backplane expansion bus |
| Number of terminal blocks | 6 |
| Connections - terminals | 2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block |
| Safety level | Can reach category 4 ISO 13849-1, Can reach PL = e ISO 13849-1, Can reach SIL 3 IEC 61508, SILCL 3 IEC 62061 |
| Quality labels | CE |
| Discrete input voltage | 24 V DC |
| Local signalling | 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 12 LEDs yellow IN input status |
| Cable cross section | 0.0003…0.002 in² (0.2…1.5 mm²) - 24 AWG...16 AWG flexible without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG flexible without cable end, 0.0004…0.002 in² (0.25…1 mm²) - 23 AWG...18 AWG flexible with cable end, without bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, with bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, without bezel, 0.0008…0.002 in² (0.5…1.5 mm²) - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.0003…0.002 in² (0.2…1 mm²) - 24 AWG...18 AWG solid without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG solid without cable end |
| Mounting support | Omega 35 mm DIN rail EN 50022 |
| Depth | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Width | 4.5 in (114.5 mm) |
| Net Weight | 0.55 lb(US) (0.25 kg) |
| Standards | IEC 62061, IEC 61800-5-1, IEC 61508, ISO 13849-1 |
|---|---|
| Product Certifications | cULus, TÜV, RCM |
| IP degree of protection | IP20 enclosure) |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) |
| Ambient air temperature for storage | -4…185 °F (-20…85 °C) |
| Relative Humidity | 10…95 % |
| Pollution degree | 2 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 61800-5-1 |
| Safety reliability data | DC > 99 %, MTTFd < 100 years high, PFHd = 3.24E-9 1/h |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Overvoltage category | II |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Vibration resistance | +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1 |
| Shock resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Service Life | 20 year(s) |
| Part number | XPSMCMDI1200MT |
|---|---|
| Type designation | XPSMCM |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480748608 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IT |
|---|---|
| Shipping weight | 0.25 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of XPSMCM is 24 V DC.
The tariff (HS) code on file for XPSMCM is 853710.
The EAN (GTIN) of XPSMCM is 3606480748608.
XPSMCM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
