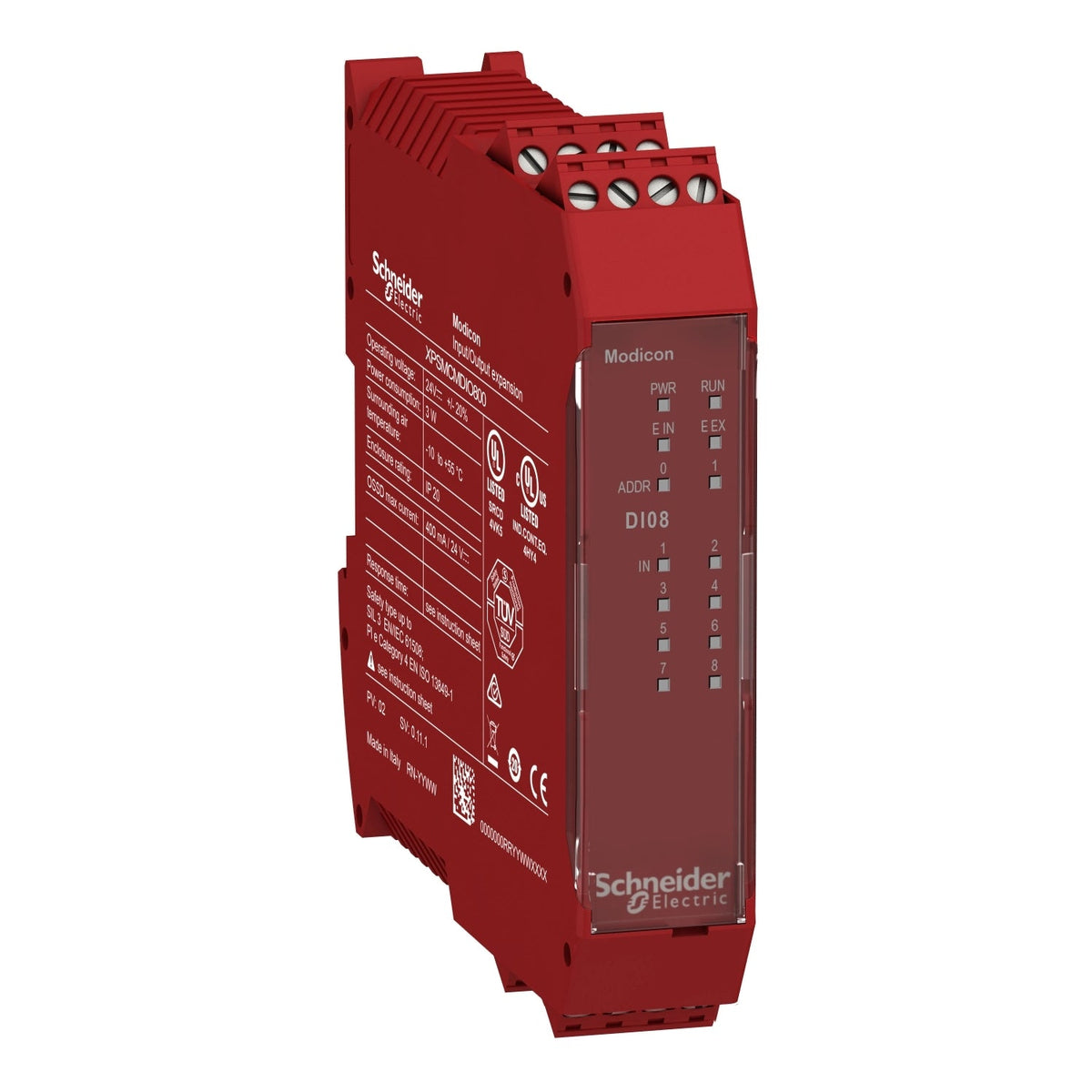

Schneider Electric XPSMCMDI0800 Modicon MCM Safe Input Expansion Module 8 Inputs Screw Terminals Safety PLC

Modicon MCM expansion module, 8 safe digital inputs, 24 V DC, Cat.4/PL e, backplane-mounted.

Rated operational voltage
24 V DC
Communication
Backplane expansion bus
EAN
3606480748585
Description

About the XPSMCM

The Schneider Electric XPSMCMDI0800 is a Modicon MCM safe input expansion module with 8 digital safety inputs and 4 test outputs, wired through captive screw-clamp terminals at 24 V DC. It connects to an XPSMCM safety controller over the backplane expansion bus to add input capacity and cannot operate stand-alone. Each input has configurable filtering and delay for functions such as emergency stop and guard monitoring.

Certifications & Standards

  • RCM
  • cULus
  • TÜV
  • IEC 62061
  • IEC 61508
  • ISO 13849-1
  • IEC 61800-5-1

Selection Notes

The XPSMCMDI0800 adds 8 safe digital inputs to an XPSMCM controller over the backplane bus; it expands an existing Modicon MCM safety controller CPU and cannot run stand-alone. Pick the 16-input variant instead when a machine needs more input points per module, or the safety-mat-specific 12-input variant when those inputs are monitoring 4-wire safety mats - all three share the same Category 4 / PL e and SILCL 3 rating as this module. Up to 14 input, output or diagnostic modules can share one backplane with the controller CPU, so an 8-input module is the right starting point when a cell's I/O count is still growing.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 10

Range of Product Preventa Safety automation
Product or Component Type Safe input expansion module
Device short name XPSMCM
Electrical Connection Screw terminal
[Us] rated supply voltage 24 V - 20...20 % DC
Input type 8 digital
Output type 4 test line control
Discrete input type PNP
Discrete output type PNP
Function of module Monitoring safety detection discrete input, Monitoring safety dialogue discrete input

Complementary 15

Power Consumption in W 3 W
Power dissipation in W 3 W
Integrated connection type Backplane expansion bus
Number of terminal blocks 4
Connections - terminals 2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Safety level Can reach category 4 ISO 13849-1, Can reach PL = e ISO 13849-1, Can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Quality labels CE
Discrete input voltage 24 V DC
Local signalling 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 8 LEDs yellow IN input status
Cable cross section 0.0003…0.002 in² (0.2…1.5 mm²) - 24 AWG...16 AWG flexible without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG flexible without cable end, 0.0004…0.002 in² (0.25…1 mm²) - 23 AWG...18 AWG flexible with cable end, without bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, with bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, without bezel, 0.0008…0.002 in² (0.5…1.5 mm²) - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.0003…0.002 in² (0.2…1 mm²) - 24 AWG...18 AWG solid without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG solid without cable end
Mounting support Omega 35 mm DIN rail EN 50022
Depth 0.9 in (22.5 mm)
Height 3.9 in (99 mm)
Width 4.5 in (114.5 mm)
Net Weight 0.51 lb(US) (0.23 kg)

Environment 15

Standards IEC 62061, IEC 61508, ISO 13849-1, IEC 61800-5-1
Product Certifications RCM, cULus, TÜV
IP degree of protection IP20 enclosure)
Ambient air temperature for operation 14…131 °F (-10…55 °C)
Ambient air temperature for storage -4…185 °F (-20…85 °C)
Relative Humidity 10…95 %
Pollution degree 2
[Uimp] rated impulse withstand voltage 4 kV IEC 61800-5-1
Safety reliability data PFHd = 5.75E-9 1/h, DC > 99 %, MTTFd < 100 years high
Insulation 250 V AC between power supply and housing IEC 61800-5-1
Overvoltage category II
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Vibration resistance +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Service Life 20 year(s)
Show all 54 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XPSMCMDI0800
Type designation XPSMCM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480748585

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IT
Shipping weight 0.23 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
