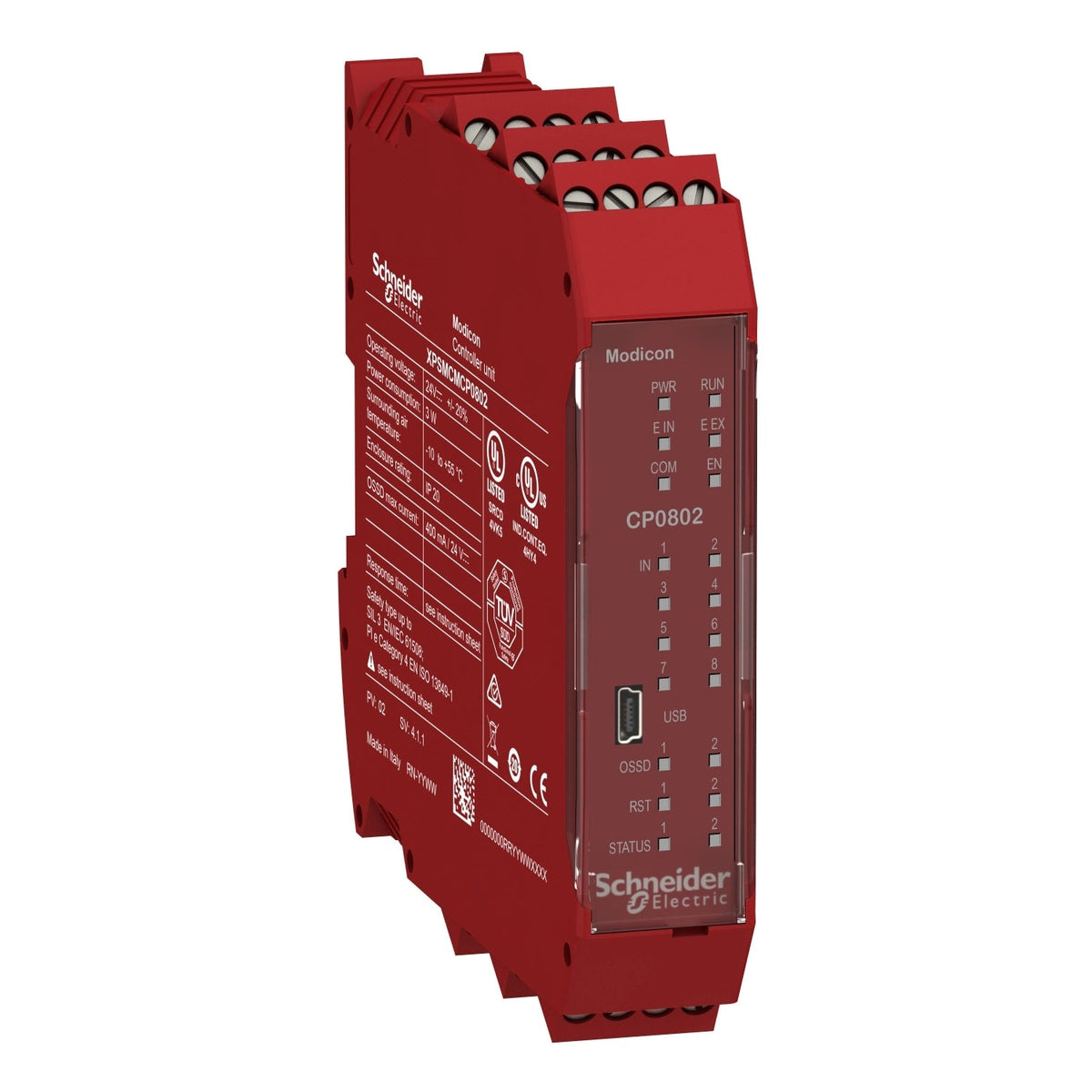

Schneider Electric XPSMCMCP0802 Modicon MCM Safety Controller 8 Inputs 2 Output Pairs 24 V DC Safety PLC

Modicon MCM safety controller, 8 safety inputs, 2 OSSD pairs, 24 V DC, Cat.4/PL e, IP20.

Rated operational voltage
24 V DC
Communication
USB 2.0 (configuration), backplane expansion bus
EAN
3606480748561
Description

About the XPSMCM

The Schneider Electric XPSMCMCP0802 is a Modicon MCM safety controller CPU with 8 safety digital inputs and 2 OSSD output pairs, supplied at 24 V DC and wired through captive screw-clamp terminals. It monitors machine safety functions such as emergency stop, guard interlocking and light-curtain inputs, and expands over the backplane bus to up to 14 I/O modules for larger machines.

Certifications & Standards

  • cULus
  • RCM
  • TÜV
  • IEC 61508
  • ISO 13849-1
  • IEC 61496-1
  • IEC 61800-5-1
  • IEC 62061

Selection Notes

Choose the XPSMCMCP0802 for a machine with a smaller safety-function count: 8 safety inputs and 2 OSSD output pairs cover emergency stop, guard interlocking and a light curtain without over-specifying the controller. Configuration runs through EcoStruxure Machine Expert software loaded via the Mini USB port, and the unit reaches Category 4 / PL e per ISO 13849-1 and SILCL 3 per IEC 62061 stand-alone, with no external safety relay needed. Where a machine needs more than 8 inputs or 2 output pairs, add up to 14 expansion modules over the backplane bus - input modules, output modules, or non-safe diagnostic modules for CANopen, EtherCAT, EtherNet/IP or Modbus TCP/IP - instead of stepping up to the 4-output controller variant, which only makes sense when the base CPU itself needs more than 2 output pairs.

Applications

The XPSMCMCP0802 fits machines with a single safety zone - one emergency-stop circuit, one guard door or one light curtain feeding two independent output pairs to a contactor or drive enable - where a larger multi-zone controller would be unnecessary.

Specification

Full specification

60 values · Last verified 30 Oct 2026

Main 14

Range of Product Modicon Safety automation
Device short name XPSMCM
Electrical Connection Screw terminal
Product or Component Type Safety controller CPU
[Us] rated supply voltage 24 V - 20...20 % DC
Number of inputs 8 digital input connection, 2 digital interlock start/restart or external device monitoring
Number of outputs 2 safety outputs OSSD contactor/drive connection, 4 test line control outputs, 2 configurable diagnostic connection
Discrete input voltage 24 V
Discrete output current 400 mA
Discrete input current 400 mA
Discrete input type Safety input, PNP
Discrete output type PNP
Function of module Emergency stop ISO 13850, Guard monitoring EN/ISO 14119, Enabling switch monitoring IEC 60947-5-1, Light curtain monitoring IEC 61496-1, Foot switch monitoring IEC 60947-5-1, Magnetic switch monitoring EN/ISO 14119, Two-hand control EN 574, Safety mat monitoring EN/ISO 14119, Enabling switch monitoring IEC 61326-1, Muting function of light curtains IEC 60947-5-1, Counter functions IEC 61800-5-2, Speed monitoring IEC 61800-5-2
Backplane connector Without

Complementary 17

Synchronisation time between inputs < 0.5 ms
Power dissipation in W 3 W
Maximum number of I/O expansion module 14 128 input, 14 16 output
Integrated connection type Backplane expansion bus, USB 2.0 port
Data storage equipment SD card optional)
Inductive load 30 mH
Load capacitance 0.82 µF
Safety level Can reach category 4 ISO 13849-1, Can reach PL = e ISO 13849-1, Type 4 IEC 61496-1, SILCL 3 IEC 62061
Quality labels CE
Local signalling 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable, 8 LEDs yellow IN input status, 2 LEDs green/red OUT output status, 2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output channel
Connections - terminals 6 captive screw terminals, removable terminal block
Cable cross section 0.0003…0.002 in² (0.2…1.5 mm²) - 24 AWG...16 AWG flexible without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG flexible without cable end, 0.0004…0.002 in² (0.25…1 mm²) - 23 AWG...18 AWG flexible with cable end, without bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, with bezel, 0.0004…0.002 in² (0.25…1.5 mm²) - 23 AWG...16 AWG flexible with cable end, without bezel, 0.0008…0.002 in² (0.5…1.5 mm²) - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.0003…0.002 in² (0.2…1 mm²) - 24 AWG...18 AWG solid without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG solid without cable end
Mounting support Omega 35 mm DIN rail EN 50022
Depth 4.5 in (114.5 mm)
Height 3.9 in (99 mm)
Width 0.9 in (22.5 mm)
Net Weight 0.55 lb(US) (0.25 kg)

Environment 15

Standards IEC 61508, ISO 13849-1, IEC 61496-1, IEC 61800-5-1, IEC 62061
Product Certifications cULus, RCM, TÜV
IP degree of protection IP20
Ambient Air Temperature for Operation 14…131 °F (-10…55 °C)
Ambient Air Temperature for Storage -4…185 °F (-20…85 °C)
Relative humidity 10…95 %
Pollution degree 2
[Uimp] rated impulse withstand voltage 4 kV IEC 61800-5-1
Safety reliability data PFHd = 6.06E-9 1/h, DC > 99 %, MTTFd < 100 years high
Insulation 250 V AC between power supply and housing IEC 61800-5-1
Overvoltage category II
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Vibration resistance +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Service Life 20 year(s)
Show all 60 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XPSMCMCP0802
Type designation XPSMCM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480748561

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IT
Shipping weight 0.25 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
