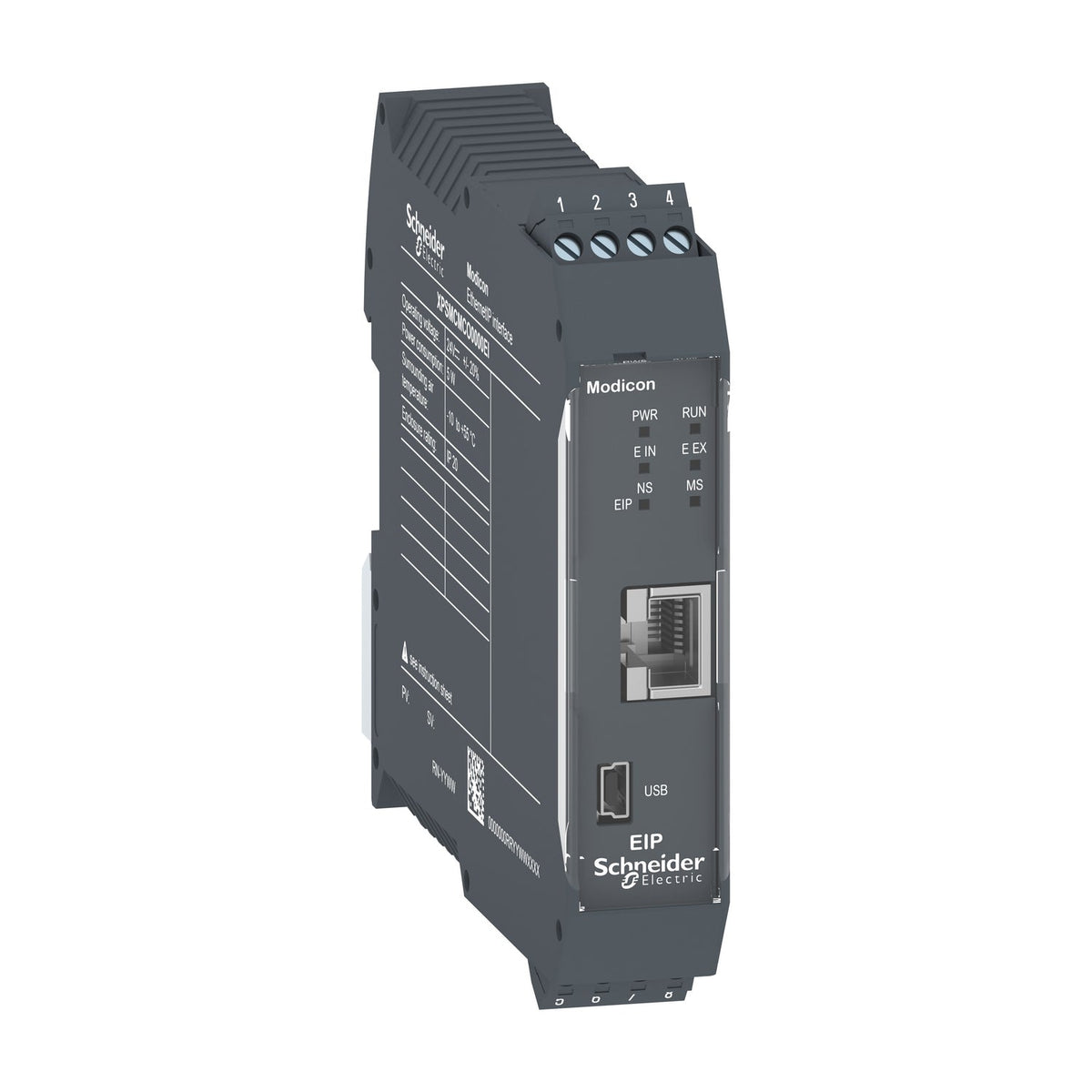

The Schneider Electric XPSMCMCO0000EI is a Modicon MCM non-safe communication module that adds an EtherNet/IP connection, via an RJ45 connector, to an XPSMCM safety controller for remote diagnostics. It connects over the backplane expansion connector and cannot operate stand-alone, running at 10/100 Mbit/s over a maximum 100 m cable segment without an additional gateway.
The XPSMCMCO0000EI is a non-safe diagnostic module: it reports the connected XPSMCM safety controller's status over EtherNet/IP for remote monitoring but carries none of the safety function itself, expanding an existing Modicon MCM safety controller CPU and unable to run stand-alone. Choose it over the CANopen, EtherCAT or Modbus TCP/IP diagnostic variants when the plant's automation network is EtherNet/IP, or choose the RS485 safe communication module instead when the link needs safe communication rather than non-safe diagnostics.
The XPSMCMCO0000EI fits cells already running EtherNet/IP for PLC and drive communication, letting the plant's existing SCADA or MES layer pick up the safety controller's status over the same network instead of a separate diagnostic link. The module carries no safety-rated traffic itself, so a network fault on its side cannot interrupt the controller's own safety outputs, and the front-face LEDs still show connection state locally if the network link drops.
| Range of Product | Modicon MCM |
|---|---|
| Product or Component Type | Non-safe communication module |
| Device short name | XPSMCM |
| [Us] rated supply voltage | 24 V - 20...20 % DC |
| Power dissipation in W | 3 W |
|---|---|
| Quality labels | CE |
| Range Compatibility | Preventa XPSMCM |
| Connector type | RJ45 |
| Number of port | 1 |
| Method of access | Server |
| Transmission rate | 10/100 Mbit/s |
| Communication Port Protocol | Ethernet TCP/IP |
| Current Consumption | 0.125 mA |
| Maximum cable distance between devices | 328.08 ft (100 m) |
| Local signalling | LED green PWR power ON, LED green RUN operating, LED red E IN internal error, LED red E EX external error, LED green/red NET connection state, LED green/red STS communication status |
| Connections - terminals | 2 captive screw clamp terminals, removable terminal block |
| Cable cross section | 0.0003…0.002 in² (0.2…1.5 mm²) - 24 AWG...16 AWG flexible without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG flexible without cable end, 0.0004…0.002 in² (0.25…1 mm²) - 23 AWG...18 AWG flexible with cable end, without bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, with bezel, 0.0004…0.004 in² (0.25…2.5 mm²) - 23 AWG...14 AWG flexible with cable end, without bezel, 0.0008…0.002 in² (0.5…1.5 mm²) - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.0003…0.002 in² (0.2…1 mm²) - 24 AWG...18 AWG solid without cable end, 0.0003…0.004 in² (0.2…2.5 mm²) - 24 AWG...14 AWG solid without cable end |
| Mounting support | Omega 35 mm DIN rail EN 50022 |
| Width | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Depth | 4.5 in (114.5 mm) |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| Product Certifications | cULus, RCM, TÜV |
|---|---|
| IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
| Ambient Air Temperature for Storage | -4…185 °F (-20…85 °C) |
| Relative humidity | 10…95 % |
| Pollution degree | 2 |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Overvoltage category | II |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Vibration resistance | +/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1 |
| Shock resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Operating altitude | 6561.68 ft (2000 m) |
| Service Life | 20 year(s) |
| Part number | XPSMCMCO0000EI |
|---|---|
| Type designation | XPSMCM |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| Last order date | 30 Nov 2026 · as announced for Türkiye, our sourcing market |
| EAN | 3606480748400 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IT |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
