- Part number
- XENG1191
Description
About the XENG1191
About the XENG1191

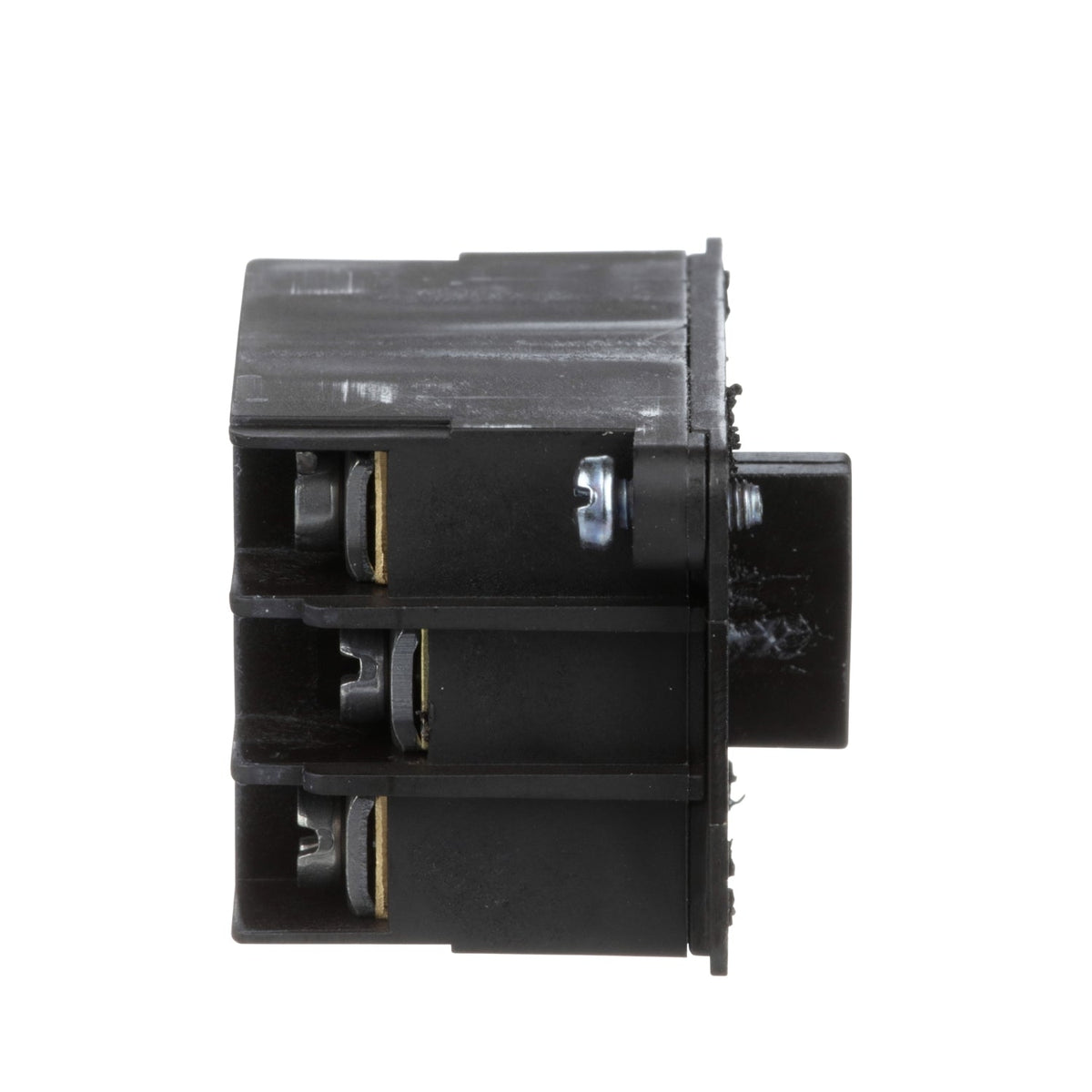

The Schneider Electric XENG1191 is a Harmony XAC pendant-station contact block that adds a 2-speed switching function to compatible XACA pendant heads, for machines where a lever must stage a drive or contactor through two distinct speeds from one control station. It carries 1 NC plus 2 NO contacts, one of which closes early for the 2-speed sequence, wired on screw-clamp terminals and front-mounted behind the operator head.
Certifications & Standards
- UL 508
- IEC 60947-5-1
- CSA C22.2 No 14
Selection Notes
The early-closing NO contact in the XENG1191 is what makes 2-speed sequencing possible on a pendant station — it makes contact before the main NO, so a drive or contactor can be staged into a faster speed only after the first motion has started. Use this block when the pendant must command two switching speeds from one lever; a plain single-speed XAC block is sufficient if only one NO/NC pair is needed.
Specification
Full specification
Main 11
| Range of Product | Harmony XAC |
|---|---|
| Product or Component Type | Contact block |
| Component name | XENG |
| Electrical circuit type | Control circuit |
| Contact block application | 2-speed |
| Contact block type | Single |
| Type of operator | Spring return |
| Product Compatibility | XACA, XACA9...head |
| Contacts type and composition | 1 NC + 2 NO |
| Mounting of block | Front mounting |
| Contact operation | Slow-break, Staggered |
Complementary 12
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end, Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
|---|---|
| Mechanical durability | 1000000 cycles |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 18 N |
| Short-circuit protection | 10 A fuse protection cartridge gG |
| Rated operational power in W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Terminals description ISO n°1 | (21-22)NC, (33-34)NO_CL, (13-14)NO |
| Net Weight | 0.09 lb(US) (0.04 kg) |
Environment 6
| Standards | UL 508, IEC 60947-5-1, CSA C22.2 No 14 |
|---|---|
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
Show all 42 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XENG1191 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110645705 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.04 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
