- Part number
- XB5S1B2M12
- Model no
- XB5S
Description
About the XB5S
About the XB5S

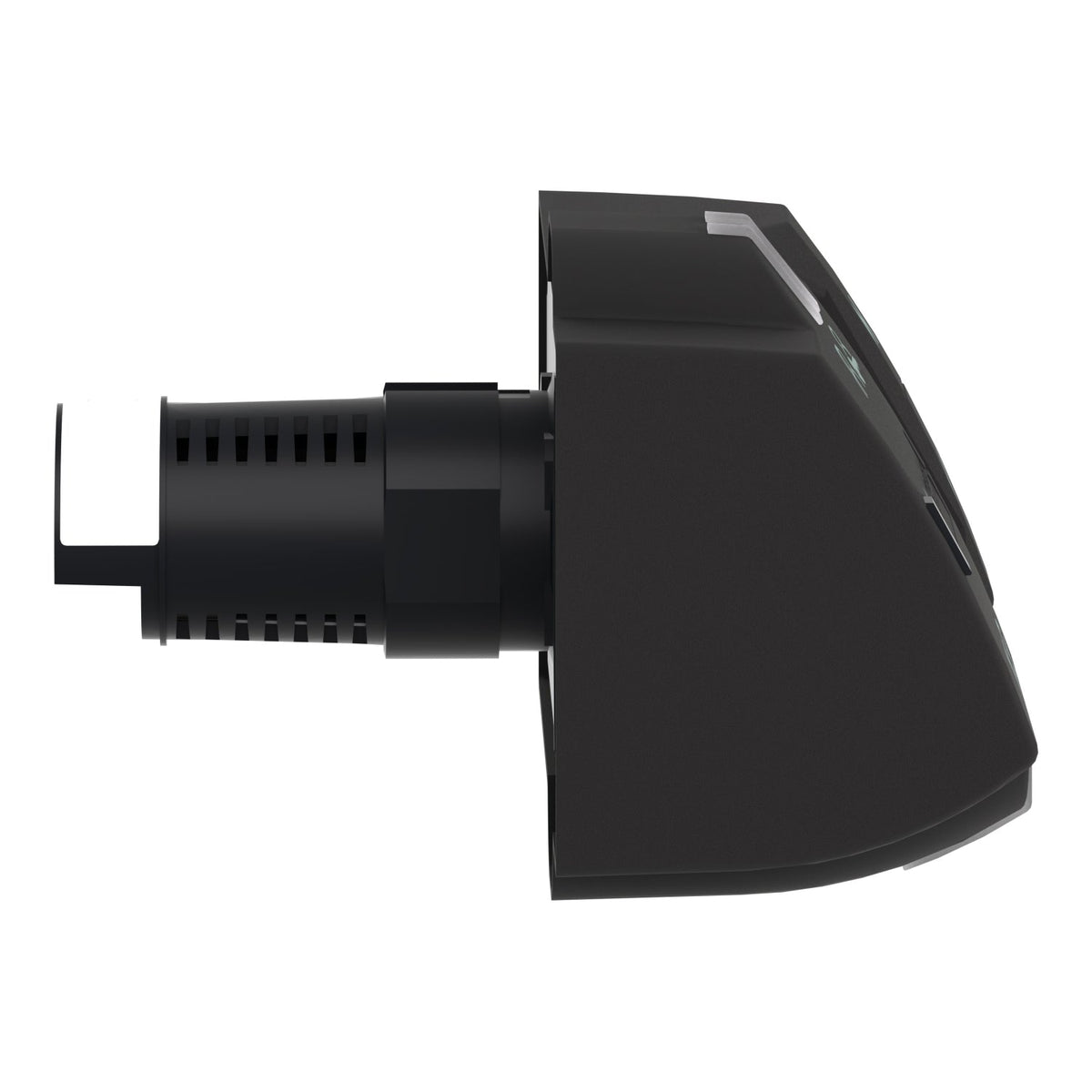

The Schneider Electric XB5S1B2M12 is a Harmony XB5S bistable fingerprint biometric switch in a 22 mm dark grey plastic bezel, supplied at 24 V DC through an M12 connector. It replaces a mechanical key switch with fingerprint-based access control for machine commands or area authorization, storing up to 200 users.
Certifications & Standards
- CE
- CSA
- UL
- IEC 61000-6-4
- IEC 61000-6-2
Selection Notes
The M12 connector lets this switch plug into a field cable without opening a terminal, which suits a machine builder standardizing on quick-disconnect sensor wiring; the pre-wired XB5S1B2L2 variant suits a direct hardwired connection instead. The bistable function holds its output state after a fingerprint read until the next authorized read toggles it back, unlike the monostable XB5S2B2M12, which pulses only while held. With 200 mA switching capacity on a 24 V DC output, it interfaces directly with a PLC digital input.
Specification
Full specification
Main 12
| Product or Component Type | Biometric switch |
|---|---|
| Product Specific Application | Materials handling, Industrial machines |
| Device short name | XB5S |
| Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Output Type | PNP |
| Sale per indivisible quantity | 1 |
| IP degree of protection | IP20 IEC 60529 rear face), IP65 IEC 60529 front face) |
| Type of operator | Stay put |
| Operator position information | 2 positions |
| Operator profile | fingerprint reader |
| Memory usage | 200 users with up to 2 fingerprints per user |
Complementary 18
| Enclosure Material | Polyamide PA66 |
|---|---|
| Cable insulation material | PvR |
| Operating position | Horizontal position, Vertical surface installation, Flat surface installation |
| Function of module | Bi-stable |
| Net Weight | 0.403 lb(US) (0.183 kg) |
| Marking | CE |
| Local signalling | 1 LED (green) for output state indicator, 1 LED (orange) for administrator's registration mode, 1 LED (orange) for operator's registration mode, 1 LED (red) for error, 1 LED (red) for reset |
| Short-circuit protection | 250 mA external fuse gG |
| [Us] rated supply voltage | 24 V DC |
| Electrical connection | M12 connector 0.7 ft (0.2 m) |
| Supply voltage limits | 20…30 V DC |
| Protection Type | Reverse polarity, Overload protection, Short-circuit |
| Maximum switching current | 200 mA |
| [Ures] residual voltage | 1 V closed state |
| Current consumption | <= 70 mA no-load |
| Maximum delay first up | 3 s + 0.5 ms per user registered |
| Maximum delay recovery | 1.5 s |
| Maximum delay response | 1.5 s |
Environment 8
| Range of Product | Harmony XB5S |
|---|---|
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Operation | 23…122 °F (-5…50 °C) |
| NEMA degree of protection | NEMA 12 |
| Standards | IEC 61000-6-4, IEC 61000-6-2 |
| Product Certifications | CSA, UL |
| Vibration resistance | +/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6, 1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms IEC 60068-2-27 |
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5S1B2M12 |
|---|---|
| Type designation | XB5S |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480061400 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.183 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
