Part number
XB5S1B2L2
Model no
XB5S
$494.62 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB5S

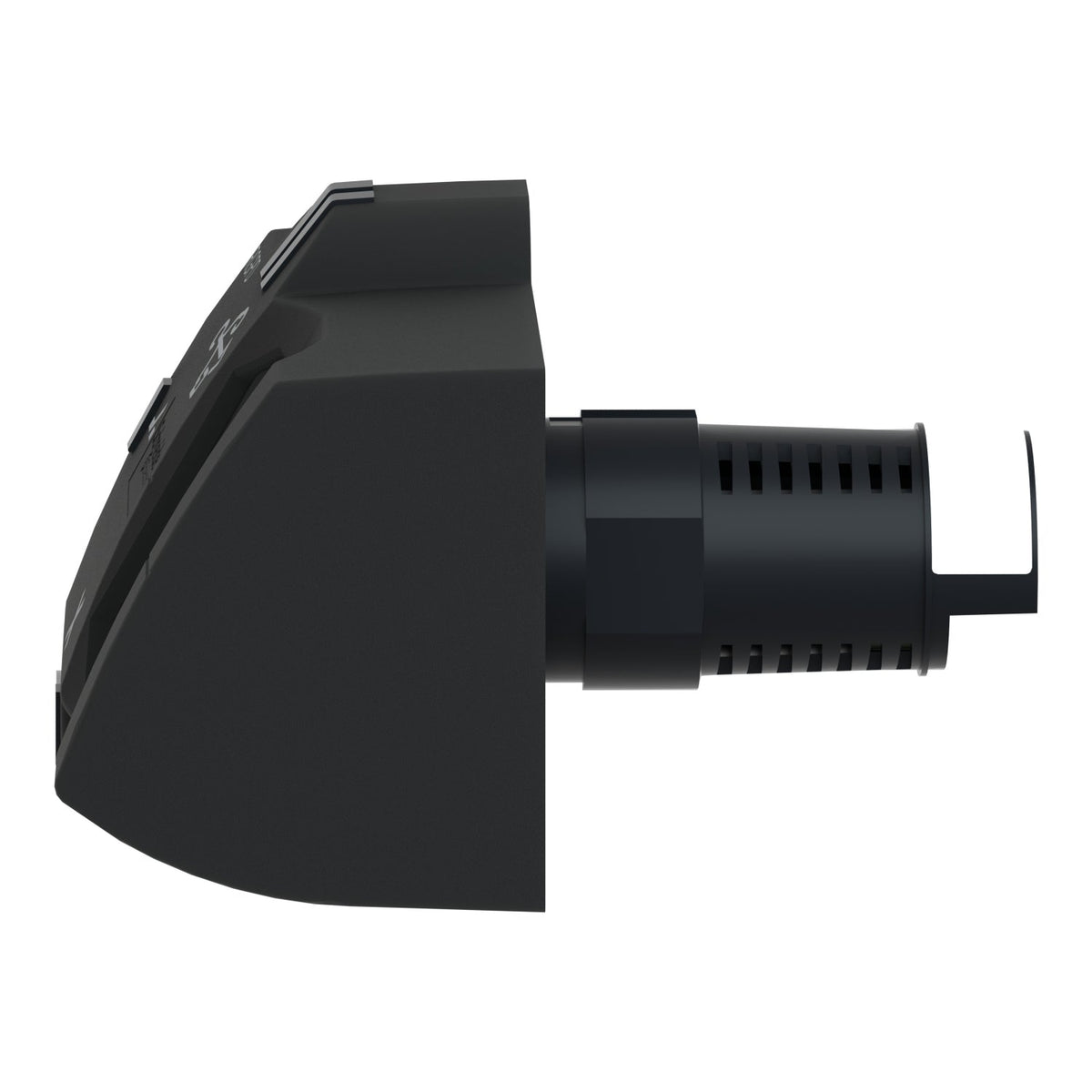

Schneider Electric XB5S1B2L2 Harmony XB5S Biometric Switch Bistable 22 mm 2m Cable 24 V DC Control Unit

Schneider Electric XB5S1B2L2 Harmony XB5S bistable biometric switch, 22 mm, 2 m cable, 24 V DC, IP65 front.

Product or Component Type
Biometric switch
Product Specific Application
Industrial machines, Materials handling
Device short name
XB5S
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Output Type
PNP
EAN
3606480061394
Description

About the XB5S

The Schneider Electric XB5S1B2L2 is a Harmony XB5S bistable fingerprint biometric switch in a 22 mm dark grey plastic bezel, supplied at 24 V DC with a pre-wired 2 m cable. It replaces a mechanical key switch with fingerprint-based access control for machine commands or area authorization, storing up to 200 users.

Certifications & Standards

  • CE
  • UL
  • CSA
  • IEC 61000-6-4
  • IEC 61000-6-2

Selection Notes

The bistable function holds its output state after the fingerprint read, so it suits access-enable circuits that should stay latched until the next authorized read toggles it back off, unlike the monostable XB5S2B2L2, which pulses the output only while held. The pre-wired 2 m cable version suits a panel where the control cabinet is close enough for direct termination; the M12-connector XB5S1B2M12 variant suits installations that need a plug-in field connection instead. With 200 mA switching capacity on a 24 V DC output, it interfaces directly with a PLC digital input or a small relay coil.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 13

Product or Component Type Biometric switch
Product Specific Application Industrial machines, Materials handling
Device short name XB5S
Bezel material Dark grey plastic
Mounting diameter 0.9 in (22 mm)
Output Type PNP
Sale per indivisible quantity 1
IP degree of protection IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
Type of operator Stay put
Operator position information 2 positions
Operator profile fingerprint reader
Connections - terminals 1 pre-wired cable, 3 x 0.34 mm²
Memory usage 200 users with up to 2 fingerprints per user

Complementary 18

Enclosure Material Polyamide PA66
Cable insulation material PvR
Operating position Horizontal position, Flat surface installation, Vertical surface installation
Function of module Bi-stable
Net Weight 0.37 lb(US) (0.17 kg)
Marking CE
Local signalling 1 LED (green) for output state indicator, 1 LED (orange) for administrator's registration mode, 1 LED (orange) for operator's registration mode, 1 LED (red) for error, 1 LED (red) for reset
Short-circuit protection 250 mA external fuse gG
[Us] rated supply voltage 24 V DC
Electrical connection free wire ends 3 6.6 ft (2 m)
Supply voltage limits 20…30 V DC
Protection Type Short-circuit, Reverse polarity, Overload protection
Maximum switching current 200 mA
[Ures] residual voltage 1 V closed state
Current consumption <= 70 mA no-load
Maximum delay first up 3 s + 0.5 ms per user registered
Maximum delay recovery 1.5 s
Maximum delay response 1.5 s

Environment 8

Range of Product Harmony XB5S
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Ambient Air Temperature for Operation 23…122 °F (-5…50 °C)
NEMA degree of protection NEMA 12
Standards IEC 61000-6-4, IEC 61000-6-2
Product Certifications UL, CSA
Vibration resistance +/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6, 1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn 11 ms IEC 60068-2-27
Show all 53 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB5S1B2L2
Type designation XB5S
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480061394

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.17 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XB5S1B2L2

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 61000-6-4
  • IEC 61000-6-2
Quick answers

Questions about the XB5S

What is the HS code of XB5S for customs?

The tariff (HS) code on file for XB5S is 853690.

What is the EAN of XB5S?

The EAN (GTIN) of XB5S is 3606480061394.

Where does XB5S ship from, and how fast?

XB5S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
