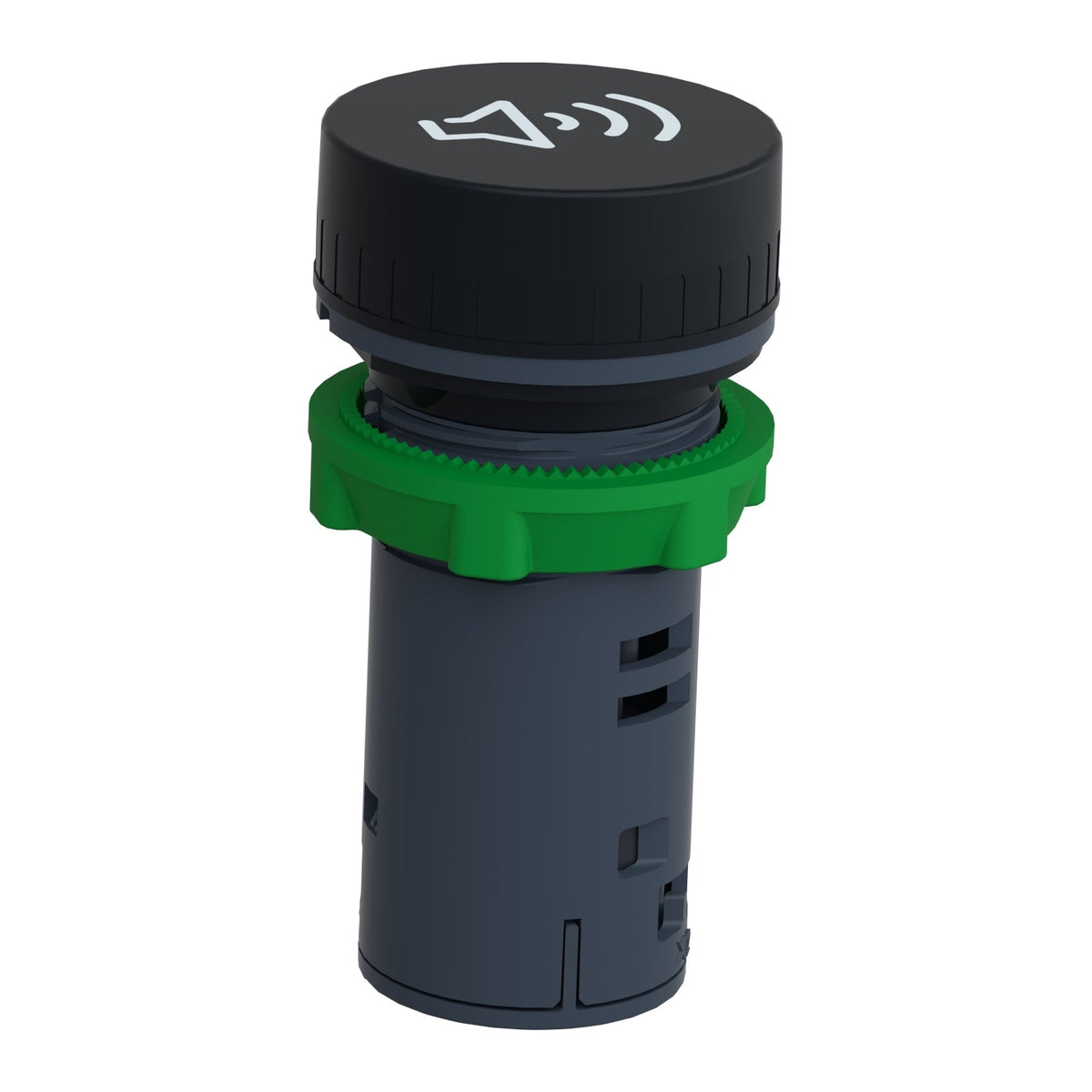

Schneider Electric XB5KSB Harmony XB5 Complete Buzzer Dark Grey Plastic 22 mm 24 V AC/DC Control Unit

The Schneider Electric XB5KSB is a Harmony XB5 complete buzzer with a dark grey plastic bezel and black cap, rated 24 V AC/DC with a continuous or intermittent tone. It mounts into a standard 22 mm panel cut-out for a signalling-only audible alarm, without the lamp block of the illuminated XB5KS2 buzzer variants.

Technical Specifications

Certifications & Standards

• UL Listed
• CSA
• BV
• IEC 60947-5-1
• IEC 60947-1
• IEC 60947-5-4
• CSA C22.2 No 14
• UL 508
• JIS C8201-5-1
• JIS C8201-1
• IEC 60529
• IEC 62262
• IEC 50102

Selection Notes

At 24 V AC/DC with a draw under 28 mA, the XB5KSB wires directly to a PLC digital output or 24 V control transformer, unlike the 230...240 V XB5KSM variant, which needs mains-level wiring. It omits the integral lamp of the XB5KS2 illuminated-buzzer variants, so pick it when only an audible signal is needed and panel space or wiring should stay simple. The Class II double-insulated construction removes the need for a separate protective-earth terminal on the device itself.
