Schneider Electric XB5KS2M4 Harmony XB5 Illuminated Buzzer Plastic Red 22 mm 230-240 V AC Control Unit

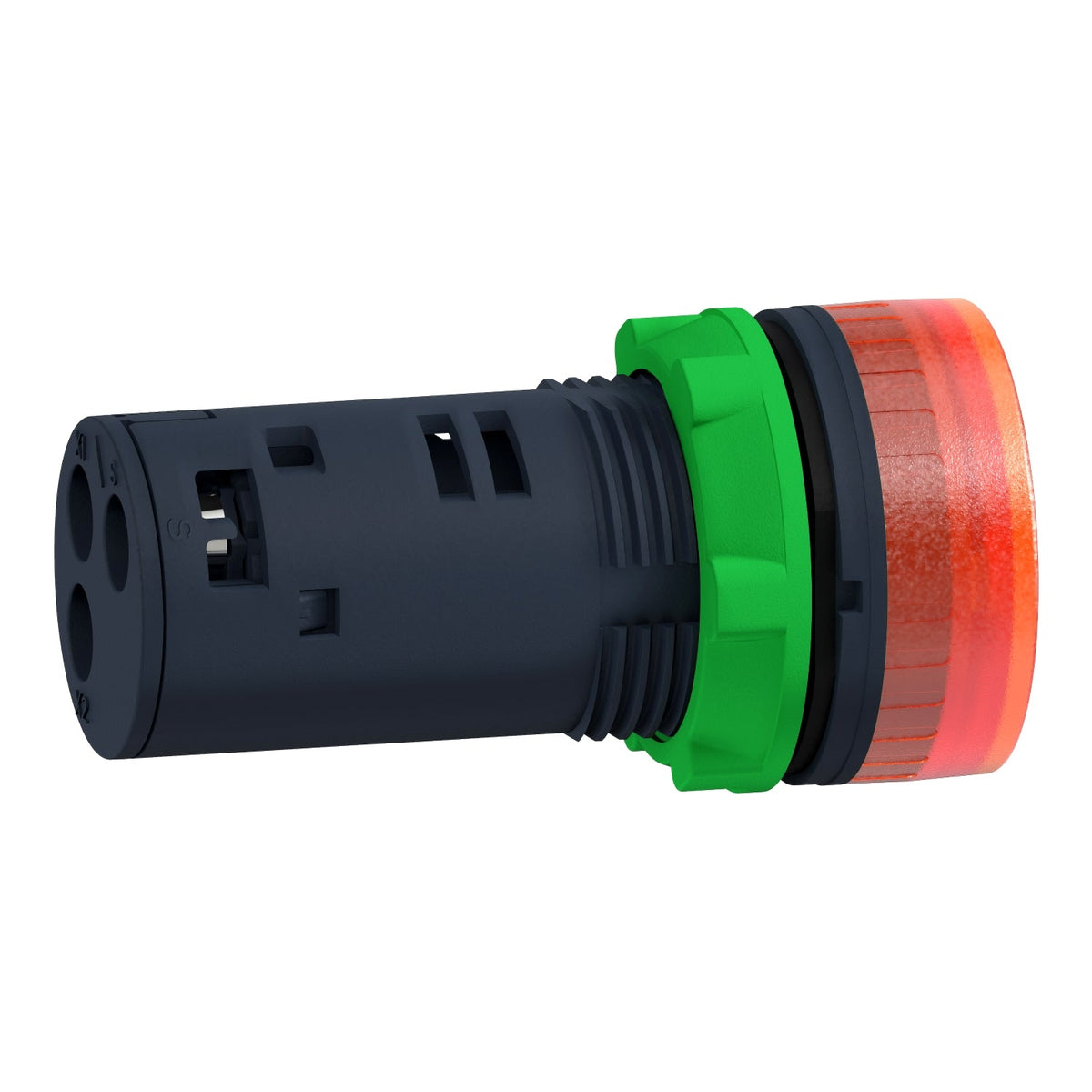

The Schneider Electric XB5KS2M4 is a Harmony XB5 illuminated buzzer in a red plastic 22 mm bezel, rated 230...240 V AC with a continuous or intermittent 90 dB tone at 6.8 kHz. It mounts into a standard 22 mm panel cut-out and carries IP66/IP67/IP69 washdown protection, giving it an audible alarm element for custom control-panel assemblies.

Technical Specifications

Certifications & Standards

• UL Listed
• CSA
• BV
• CSA C22.2 No 14
• IEC 60947-1
• UL 508
• IEC 60947-5-1
• IEC 60947-5-4
• JIS C8201-5-1
• JIS C8201-1
• IEC 60529
• IEC 62262
• IEC 50102

Selection Notes

The 230...240 V AC supply lets this buzzer wire directly to a mains-fed signal circuit without a step-down transformer, which the 24 V XB5KS2B4 variant would need in that same panel. The red lens suits alarm or fault indication; the 230 V yellow XB5KS2M8 covers caution signalling instead. Current draw stays under 35 mA, so it adds negligible load to an existing 230 V control circuit. The IP66/IP67/IP69 rating and UL type 4X/13 enclosure make it a fit for panels exposed to hose-down cleaning or humid outdoor cabinets.
