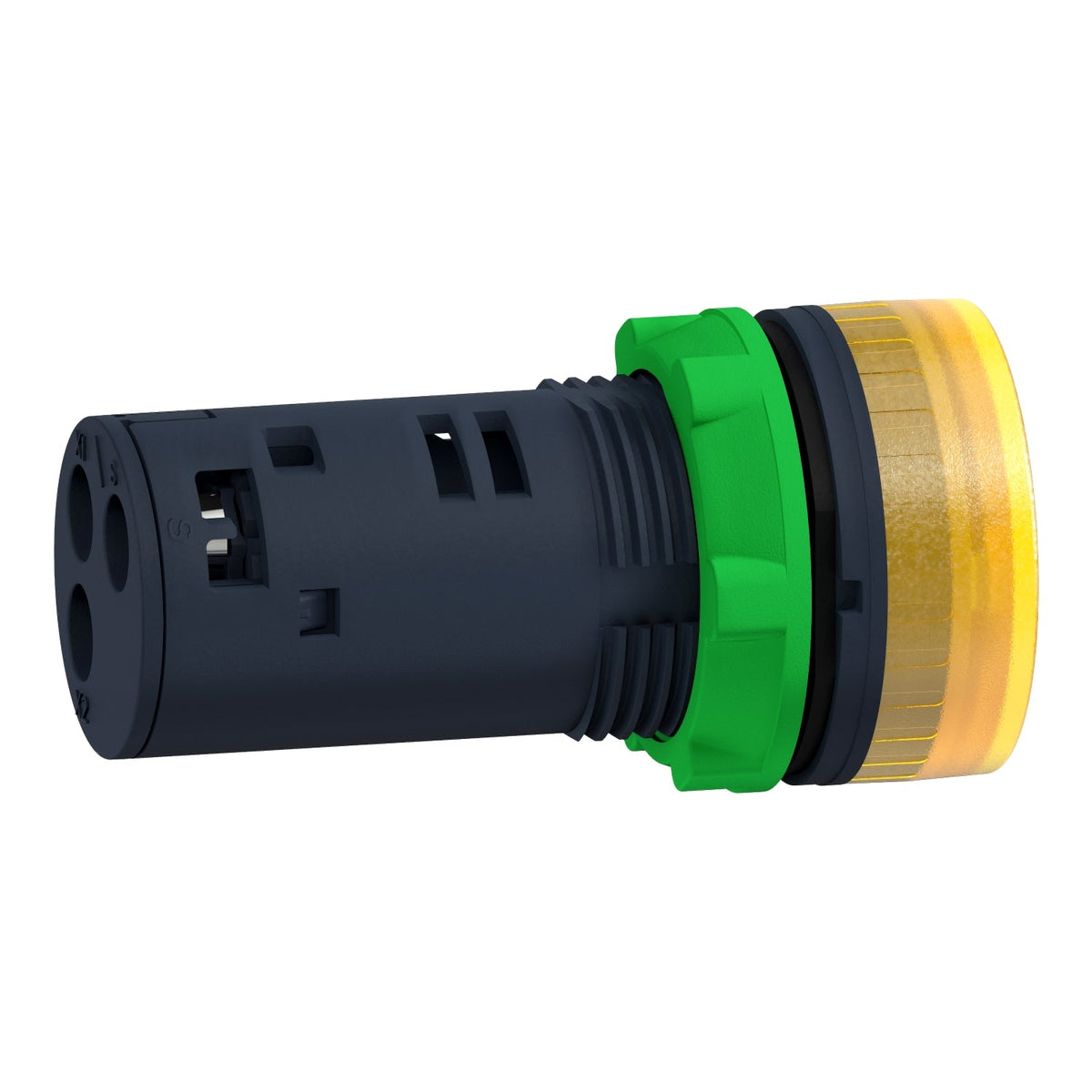

Schneider Electric XB5KS2B8 Harmony XB5 Illuminated Buzzer Plastic Yellow 22 mm 24 V AC/DC Control Unit

The Schneider Electric XB5KS2B8 is a Harmony XB5 illuminated buzzer in a yellow plastic 22 mm bezel, rated 24 V AC/DC with a continuous or intermittent 90 dB tone at 6.8 kHz. It mounts into a standard 22 mm panel cut-out and carries IP66/IP67/IP69 washdown protection, giving it an audible alarm element for custom control-panel assemblies.

Technical Specifications

Certifications & Standards

• UL Listed
• CSA
• BV
• IEC 60947-1
• JIS C8201-5-1
• UL 508
• IEC 60947-5-1
• IEC 60947-5-4
• CSA C22.2 No 14
• JIS C8201-1
• IEC 60529
• IEC 62262
• IEC 50102

Selection Notes

The yellow lens suits caution or attention signalling where a panel reserves colour-coding for severity levels; the red XB5KS2B4 variant covers alarm or fault indication instead. At 24 V AC/DC with a current draw under 58 mA, it runs directly from a PLC digital output or a 24 V control transformer, unlike the 230...240 V XB5KS2M8 variant, which needs mains-level wiring. The IP66/IP67/IP69 rating and UL type 4X/13 enclosure make it a fit for panels exposed to hose-down cleaning or humid outdoor cabinets.
