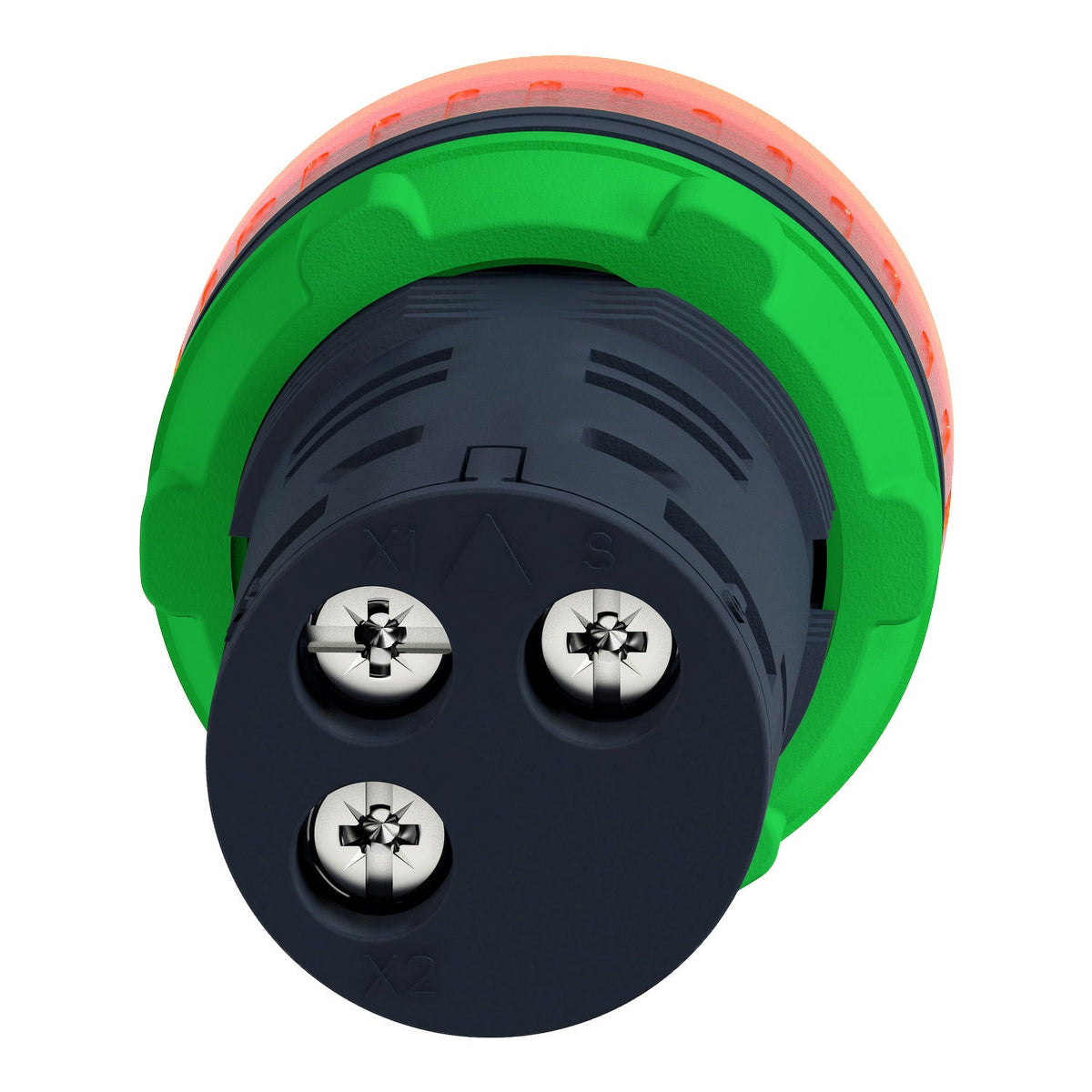

Harmony XB5Schneider Electric XB5KS2B4 Harmony XB5 Illuminated Buzzer Plastic Red 22 mm 24 V AC/DC Control Unit
Schneider Electric XB5KS2B4 Harmony XB5 red illuminated buzzer, 22 mm, 24 V AC/DC, 90 dB continuous/intermittent tone, IP66/67/69.
Description
About the XB5KS2B4
About the XB5KS2B4
The Schneider Electric XB5KS2B4 is a Harmony XB5 illuminated buzzer in a red plastic 22 mm bezel, rated 24 V AC/DC with a continuous or intermittent 90 dB tone at 6.8 kHz. It mounts into a standard 22 mm panel cut-out and carries IP66/IP67/IP69 washdown protection, giving it an audible alarm element for custom control-panel assemblies.
Certifications & Standards
- UL Listed
- CSA
- BV
- CSA C22.2 No 14
- IEC 60947-5-1
- IEC 60947-5-4
- JIS C8201-5-1
- IEC 60947-1
- UL 508
- JIS C8201-1
- IEC 60529
- IEC 62262
- IEC 50102
Selection Notes
The red lens suits alarm or fault indication where a panel reserves red/yellow colour-coding; the yellow XB5KS2B8 variant covers caution or attention signalling instead. At 24 V AC/DC with a current draw under 58 mA, it runs directly from a PLC digital output or a 24 V control transformer, unlike the 230...240 V XB5KS2M4 variant, which needs mains-level wiring. The IP66/IP67/IP69 rating and UL type 4X/13 enclosure make it a fit for panels exposed to hose-down cleaning or humid outdoor cabinets.
Specification
Full specification
Main 5
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Annunciator |
| Bezel material | Plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Cap/operator or lens colour | Red |
Complementary 11
| Supply circuit type | AC/DC |
|---|---|
| Supply frequency | 50/60 Hz |
| Signalling type | Continuous or intermittent tone |
| Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Resistance to high pressure washer | 1305.3 psi (9000000 Pa) 176 °F (80 °C) 0.1 m |
| Height | 1.1 in (29 mm) |
| Width | 1.1 in (29 mm) |
| Depth | 2.2 in (55 mm) |
| Net Weight | 0.053 lb(US) (0.024 kg) |
| Current Consumption | <= 58 mA |
| [Us] rated supply voltage | 24 V +/- 10 % |
Environment 7
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| Enclosure Type | UL type 4X/13 |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, IEC 60947-1, JIS C8201-1, IEC 60529, IEC 62262, IEC 50102 |
| Product Certifications | UL Listed, CSA, BV |
Show all 36 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XB5KS2B4 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481352439 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.024 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB5KS2B4
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CSA C22.2 No 14
- IEC 60947-5-1
- IEC 60947-5-4
- JIS C8201-5-1
- IEC 60947-1
- UL 508
- JIS C8201-1
- IEC 60529
- IEC 62262
Quick answers
Questions about the XB5KS2B4
Which supply voltage is XB5KS2B4 rated for?
The rated operational voltage of XB5KS2B4 is 24–DC V DC.
What is the HS code of XB5KS2B4 for customs?
The tariff (HS) code on file for XB5KS2B4 is 853690.
What is the EAN of XB5KS2B4?
The EAN (GTIN) of XB5KS2B4 is 3606481352439.
Where does XB5KS2B4 ship from, and how fast?
XB5KS2B4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
