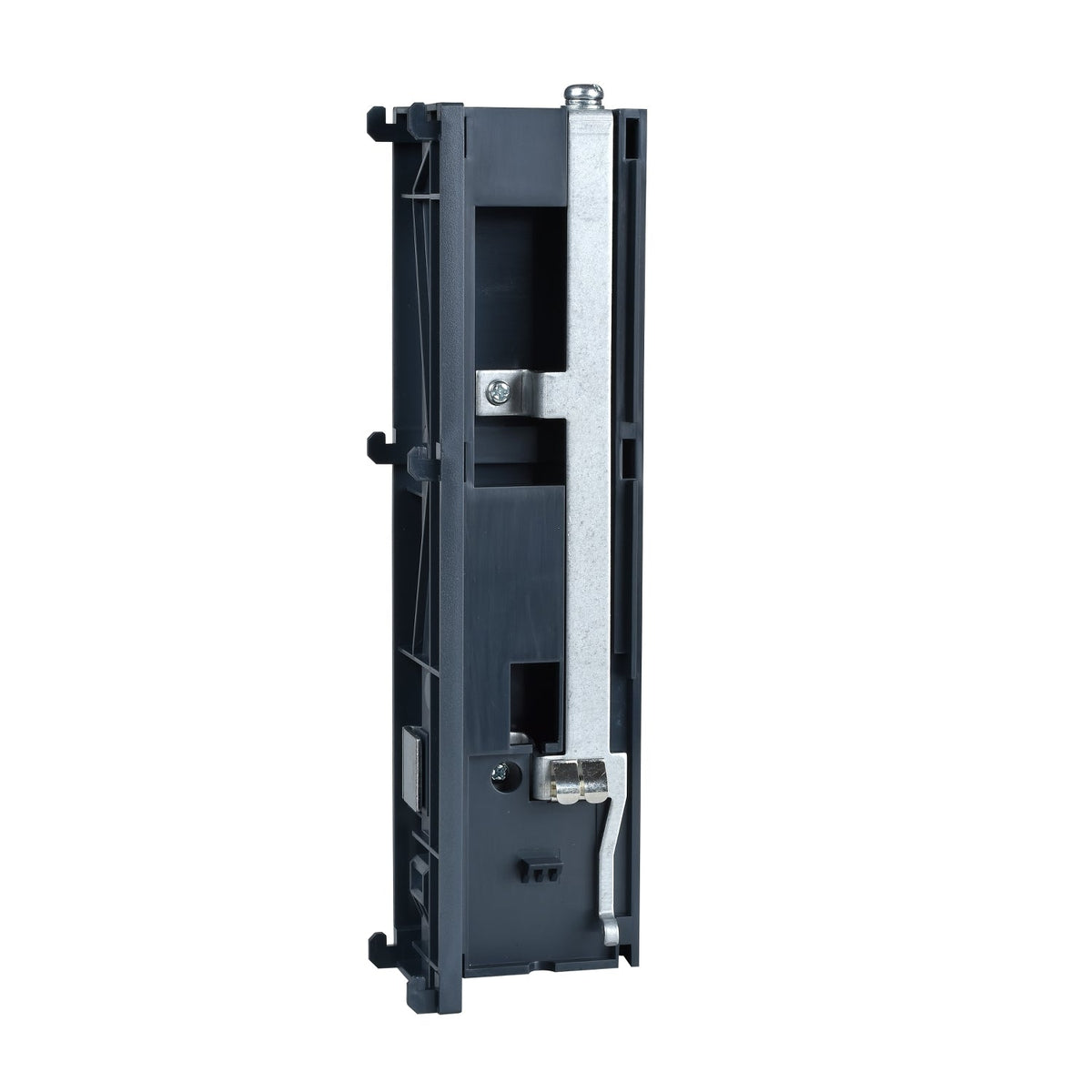

The Schneider Electric VW3A9920 is a mechanical adaptor plate that mounts the control block of an Altivar 32 or Altivar Machine ATV320...B drive at a 90-degree angle, for the 0.18-2.2 kW single-phase 200-240 V and 0.37-4 kW three-phase 380-500 V variants. It weighs 0.125 kg and ships in packs of 56 units.
The VW3A9920 rotates the control block 90 degrees relative to the power section, which matters when panel depth is limited and the drive's normal front-facing display/keypad orientation would collide with a door or adjacent enclosure. It only fits the Altivar 32 and Altivar Machine ATV320...B drives in the 0.18-2.2 kW single-phase and 0.37-4 kW three-phase range; it is not a universal mounting bracket across other Altivar families.
| Range of Product | Altivar |
|---|---|
| Product or Component Type | Adaptor plate |
| Accessory / separate part category | Mounting and fixing accessory |
| Product compatibility | Variable speed drive ATV320...B, 0.18…2.2 kW, 200...240 V, single phase, Variable speed drive ATV320...B, 0.37…4 kW, 380...500 V, three phase, Variable speed drive ATV32, 0.18…2.2 kW, 200...240 V, single phase, Variable speed drive ATV32, 0.37…4 kW, 380...500 V, three phase |
| Accessory / separate part destination | control block |
| Sale per indivisible quantity | 1 |
|---|---|
| Net Weight | 0.276 lb(US) (0.125 kg) |
| Warranty (in months) | 18 |
|---|
| Part number | VW3A9920 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480315596 |
| Country of origin | ID |
|---|---|
| Shipping weight | 0.125 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VW3A9920 is 850490.
The EAN (GTIN) of VW3A9920 is 3606480315596.
VW3A9920 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
