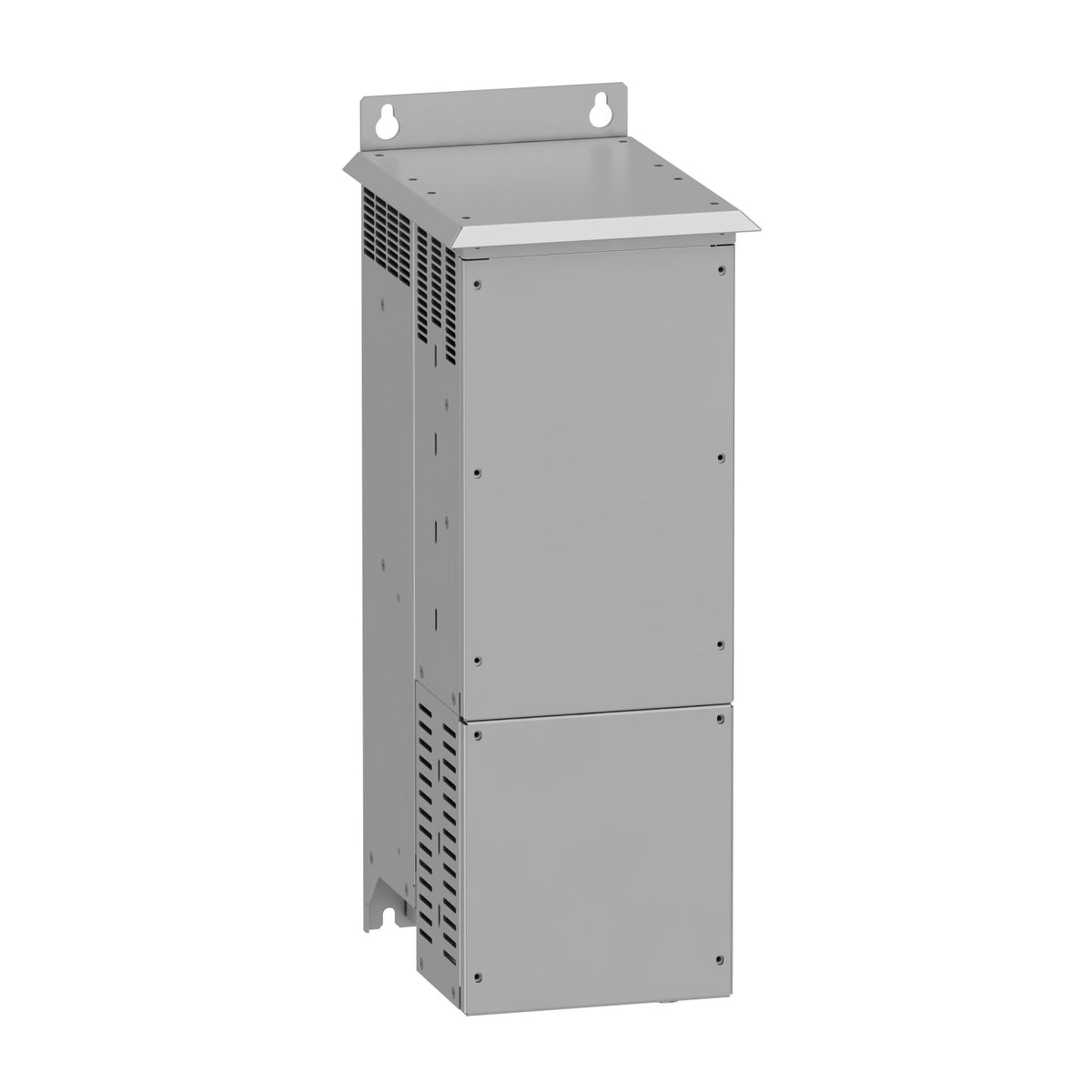

Schneider Electric VW3A7105 Altivar Process ATV900 100 kW 400/480 V Braking Unit VFD Accessory

Altivar Process ATV900 braking unit, 100 kW permanent / 160 kW peak power, 400/480 V, 2.5 Ohm resistor.

Range Compatibility
Altivar Process ATV900
Product compatibility
Variable speed drive ATV930 without braking chopper 110 kW 380...480 V, Variable speed drive ATV930 without braking chopper 130 kW 380...480 V, Variable speed drive ATV930 without braking chopper 160 kW 380...480 V
Thermal losses
400 W
Minimum resistor value to associate
2.5 Ohm
Protection type
Integrated thermal protection thermal probe
EAN
3606485435824
Description

About the VW3A7105

The Schneider Electric VW3A7105 is a braking unit for Altivar Process ATV900 variable speed drives in the 110-160 kW class, rated for 100 kW permanent braking power at 400 V with a 160 kW maximum and a minimum resistor value of 2.5 Ohm. It includes integrated thermal-probe protection and activates at 780 V DC on the drive's DC bus, in an IP20/IP21-top enclosure.

Selection Notes

The VW3A7105 covers the 110-160 kW Altivar Process ATV900 drives, sized for 100 kW permanent braking power with a 160 kW maximum at a load factor of 1 and a 2.5 Ohm minimum resistor value. Its IP21-top enclosure and forced cooling (166 m3/h) distinguish it from the smaller natural-convection braking accessories in the range, and the 780 V DC activation threshold matches the ATV900's DC bus. Pair it only with drives in this power class; larger ATV900 frames need a higher permanent-power braking unit in the same accessory line.

Specification

Full specification

34 values · Last verified 30 Oct 2026

Main 5

Range Compatibility Altivar Process ATV900
Product compatibility Variable speed drive ATV930 without braking chopper 110 kW 380...480 V, Variable speed drive ATV930 without braking chopper 130 kW 380...480 V, Variable speed drive ATV930 without braking chopper 160 kW 380...480 V
Thermal losses 400 W
Minimum resistor value to associate 2.5 Ohm
Protection type Integrated thermal protection thermal probe

Complementary 12

Maximum braking power 160 kW
Permanent braking power 100 kW at constant power and at engage threshold)
Load factor 0.05 320 kW at constant power and at engage threshold, 0.15 250 kW at constant power and at engage threshold, 0.5 200 kW at constant power and at engage threshold, 1 160 kW at constant power and at engage threshold
Activation threshold 780 V DC +/- 1 %
Maximum DC bus voltage 850 V
Width 8.5 in (216 mm)
Height 25.9 in (658 mm)
Depth 11.9 in (303 mm)
Net Weight 37.5 lb(US) (17 kg)
Volume of cooling air 43853.3 Gal/hr(US) (166 m3/h)
Operating position Vertical +/- 10 degree
Mechanical robustness Vibrations class 3M4 IEC 60721-3-3

Environment 4

IP degree of protection IP20, IP21 on top)
Operating altitude <= 3280.84 ft (1000 m) without derating, 3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m
Ambient Air Temperature for Operation 14…122 °F (-10…50 °C)
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Show all 34 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number VW3A7105
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485435824

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 17.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
