Part number
VW3A7101
$6,065.04 On request Dispatch — · From TürkiyeGet a Quote

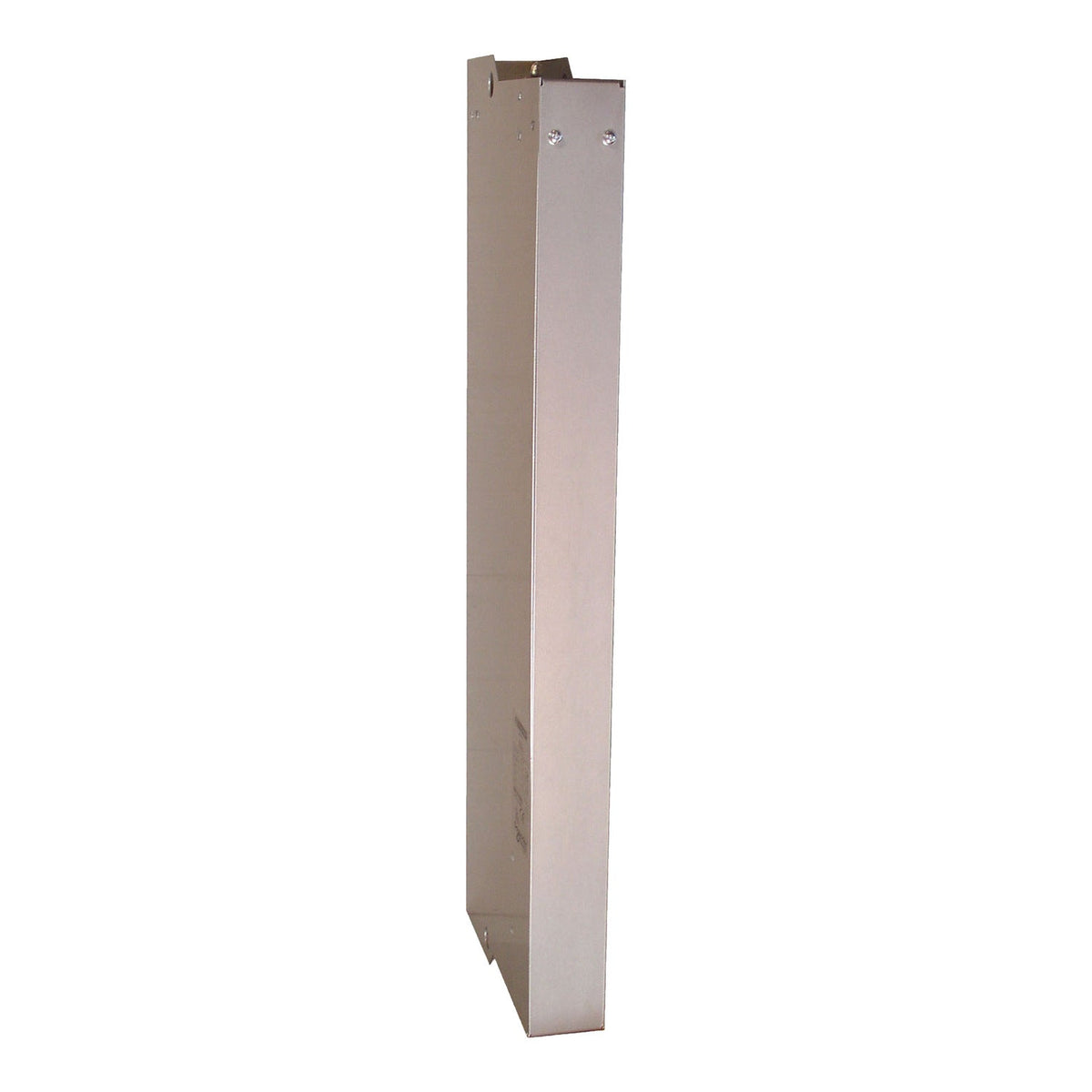

Schneider Electric VW3A7101 Altivar 200 kW 400 V Resistance Braking Unit VFD Accessory

Altivar resistance braking unit, 200 kW permanent / 420 kW peak power, 400 V, 1.05 Ohm minimum resistor value.

Range Compatibility
Altivar 61Q, Altivar 71Q, Altivar 71, Altivar 61, Altivar Process ATV900
Product compatibility
ATV61HC25N4, ATV61HC31N4, ATV61QC20N4, ATV61QC25N4, ATV61QC31N4, ATV71HC20N4, ATV71HC25N4, ATV71HC28N4, ATV71QC16N4, ATV71QC20N4, ATV71QC25N4, Variable speed drive ATV930 without braking chopper 250 kW 380...480 V, Variable speed drive ATV930 without braking chopper 315 kW 380...480 V
Thermal losses
550 W
Minimum resistor value to associate
1.05 Ohm
Protection type
Integrated thermal protection thermal probe
EAN
3389119201636
Description

About the VW3A7101

The Schneider Electric VW3A7101 is a resistance braking unit for Altivar 61, Altivar 71 and Altivar Process ATV900 variable speed drives, rated for 200 kW permanent braking power at 400 V with a 420 kW maximum and a minimum resistor value of 1.05 Ohm. It adds integrated thermal-probe protection and activates at 785 V DC on the drive's DC bus.

Selection Notes

The VW3A7101 is sized for 200 kW permanent braking power at 400 V, with a 420 kW maximum rating for short duty cycles (0.05 load factor) and a 1.05 Ohm minimum resistor value that must not be undercut when pairing with the drive's internal chopper. Integrated thermal-probe protection lets the unit report an over-temperature fault back to the drive rather than relying on external thermal monitoring. It fits Altivar 61, Altivar 71 and Altivar Process ATV900 drives in the 250-315 kW class; drives outside that braking-power range need a smaller or larger unit in the same accessory range.

Specification

Full specification

32 values · Last verified 30 Oct 2026

Main 5

Range Compatibility Altivar 61Q, Altivar 71Q, Altivar 71, Altivar 61, Altivar Process ATV900
Product compatibility ATV61HC25N4, ATV61HC31N4, ATV61QC20N4, ATV61QC25N4, ATV61QC31N4, ATV71HC20N4, ATV71HC25N4, ATV71HC28N4, ATV71QC16N4, ATV71QC20N4, ATV71QC25N4, Variable speed drive ATV930 without braking chopper 250 kW 380...480 V, Variable speed drive ATV930 without braking chopper 315 kW 380...480 V
Thermal losses 550 W
Minimum resistor value to associate 1.05 Ohm
Protection type Integrated thermal protection thermal probe

Complementary 8

Maximum braking power 420 kW
Permanent braking power 200 kW 400 V at constant power and at engage threshold)
Load factor 0.05 420 kW at constant power and at engage threshold, 0.15 320 kW at constant power and at engage threshold, 0.5 250 kW at constant power and at engage threshold
Activation threshold 785 V DC +/- 1 %
Maximum DC bus voltage 850 V
Net Weight 66.1 lb(US) (30 kg)
Volume of cooling air 26417.7 Gal/hr(US) (100 m3/h)
Operating position Vertical

Environment 6

IP degree of protection IP20
Operating altitude 6561.68 ft (2000 m)
Ambient Air Temperature for Operation 14…122 °F (-10…50 °C)
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Pollution degree 2 EN 50178
vibration resistance 0.2 gn
Show all 32 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number VW3A7101
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119201636

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 30.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
