Schneider Electric VW3A3721 Altivar EtherNet/IP Modbus TCP MD-Link Communication Module VFD Accessory

% $-1,001.43

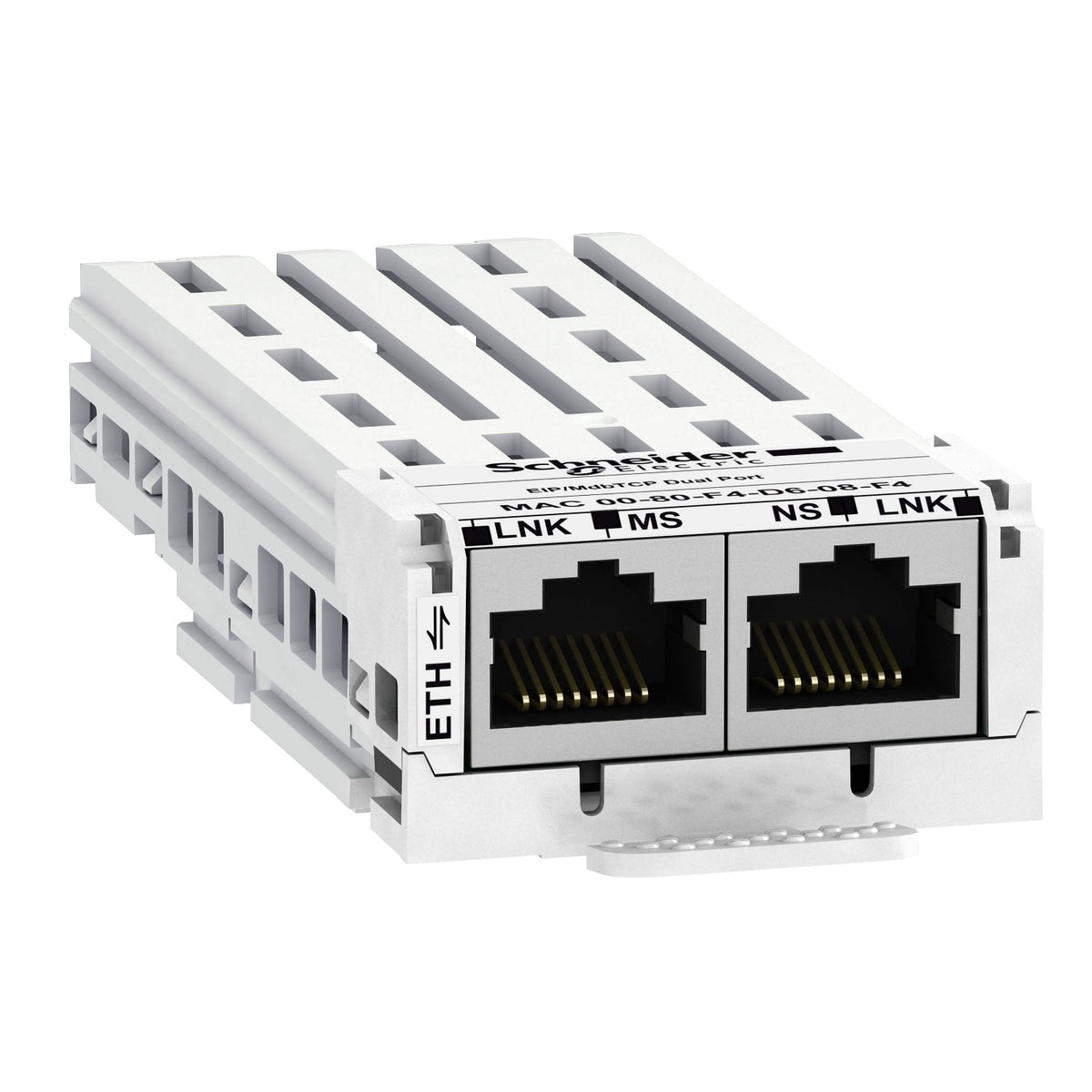

Schneider Electric VW3A3721 Altivar EtherNet/IP Modbus TCP MD-Link communication module
Schneider Electric VW3A3721 Altivar EtherNet/IP Modbus TCP MD-Link communication module

Schneider Electric VW3A3721 Altivar EtherNet/IP Modbus TCP MD-Link Communication Module VFD Accessory

Brand: Schneider Electric
Reference No: VW3A3721
Catalog No: VW3A3721
Series: Altivar
Tariff Code (HS): 850490
Communication: EtherNet/IP, Modbus TCP, MD-Link
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,001.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3A3721 is a communication module that adds EtherNet/IP, Modbus TCP and MD-Link connectivity to Altivar Process ATV600 and Altivar Process Modular drives. MD-Link lets multiple ATV600 drives share pump or multi-drive commands over the same two-RJ45 daisy-chain network used for Modbus TCP and EtherNet/IP, and the module carries ODVA and Achilles Level 2 certification.

Technical Specifications

Reference VW3A3721
Brand Schneider Electric
GTIN 3606481156426
Range Altivar
Product or Component Type Communication module
Range Compatibility Altivar Process ATV600, Altivar Process Modular
Communication Port Protocol MD-Link, EtherNet/IP, Modbus TCP
Electrical Connection 2 connectors RJ45, EtherNet/IP, Modbus TCP and MD-Link
Transmission Rate 10/100 Mbps
Exchange Mode Half duplex and full duplex
Communication Service SNMP agent, Modbus TCP server, EtherNet/IP adapter, RSTP support, FTP, ODVA AC drive and CiA 402 profile, Auto-MDIX, 32 parameters IN / 32 parameters OUT implicit messaging, FDR
Communication Network Type IPv6
Topology Daisy chain
Time Synchronisation Protocol SNTP
Web Server Embedded HTTP server
Display Type 1 LED MS (Module Status), 1 LED NS (Network Status), 1 LED TX/RX port 1, 1 LED TX/RX port 2
Bus Profile CIP AC Drive, CiA 402
Net Weight 0.2 kg

Certifications & Standards

  • ODVA
  • Achilles Level 2

Selection Notes

Choose the VW3A3721 over the standard VW3A3720 EtherNet/IP module when the installation cascades several ATV600 drives in a multi-pump or multi-drive arrangement - MD-Link carries the coordination traffic over the same daisy-chained RJ45 network as Modbus TCP and EtherNet/IP, so no separate wiring is needed for the drive-to-drive link.

Technical Details

Short Description
EtherNet/IP, Modbus TCP and MD-Link module (2x RJ45) for Altivar ATV600 multi-drive systems.
Catalog No
VW3A3721
Delivery Date (Days)
30 days
Model Number
ATV600
Tariff Code
850490
