Schneider Electric VW3A3720 Altivar EtherNet/IP Modbus TCP Communication Module VFD Accessory

% $-170.75

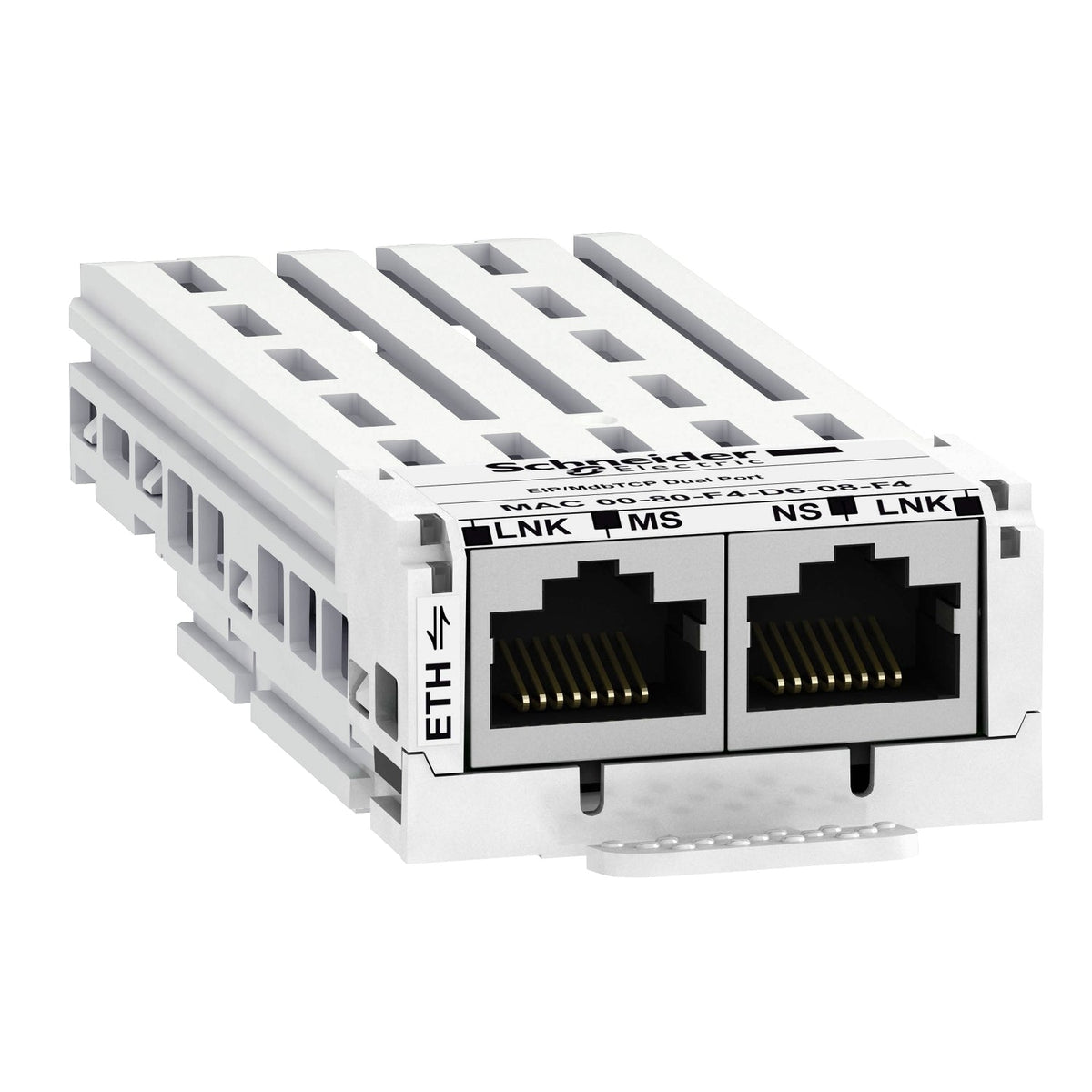

Schneider Electric VW3A3720 Altivar EtherNet/IP Modbus TCP communication module
Schneider Electric VW3A3720 Altivar EtherNet/IP Modbus TCP communication module

Schneider Electric VW3A3720 Altivar EtherNet/IP Modbus TCP Communication Module VFD Accessory

Brand: Schneider Electric
Reference No: VW3A3720
Catalog No: VW3A3720
Series: Altivar
Tariff Code (HS): 850490
Communication: EtherNet/IP, Modbus TCP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$170.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3A3720 is a communication module that adds EtherNet/IP and Modbus TCP connectivity to Altivar Process ATV600 and Altivar Process Modular drives. It transmits at 10/100 Mbps over two RJ45 ports wired in a daisy-chain topology, with an embedded HTTP server for browser-based drive monitoring and configuration, and carries ODVA and Achilles Level 2 certification.

Technical Specifications

Reference VW3A3720
Brand Schneider Electric
GTIN 3606480702549
Range Altivar
Product or Component Type Communication module
Range Compatibility Altivar Process ATV600, Altivar Process Modular
Communication Port Protocol Modbus TCP, EtherNet/IP
Electrical Connection 2 connectors RJ45, EtherNet/IP and Modbus TCP
Transmission Rate 10/100 Mbps
Exchange Mode Half duplex and full duplex
Communication Service SNMP agent, Modbus TCP server, EtherNet/IP adapter, RSTP support, FTP, ODVA AC drive and CiA 402 profile, Auto-MDIX, 32 parameters IN / 32 parameters OUT implicit messaging, FDR
Communication Network Type IPv6
Topology Daisy chain
Time Synchronisation Protocol SNTP
Web Server Embedded HTTP server
Display Type 1 LED MS (Module Status), 1 LED NS (Network Status), 1 LED TX/RX port 1, 1 LED TX/RX port 2
Bus Profile CIP AC Drive, CiA 402
Net Weight 0.2 kg

Certifications & Standards

  • ODVA
  • Achilles Level 2

Selection Notes

Choose the VW3A3720 for ATV600/Modular installations that need the embedded web server for commissioning and energy monitoring without extra software - its widgets cover drive setting, diagnostics and firmware upgrade directly through a browser. Daisy-chain RJ45 wiring and Auto-MDIX simplify cabling between adjacent drives on the same line.

Technical Details

Short Description
EtherNet/IP and Modbus TCP module (10/100 Mbps, 2x RJ45, web server) for Altivar ATV600.
Catalog No
VW3A3720
Delivery Date (Days)
30 days
Model Number
ATV600
Tariff Code
850490
