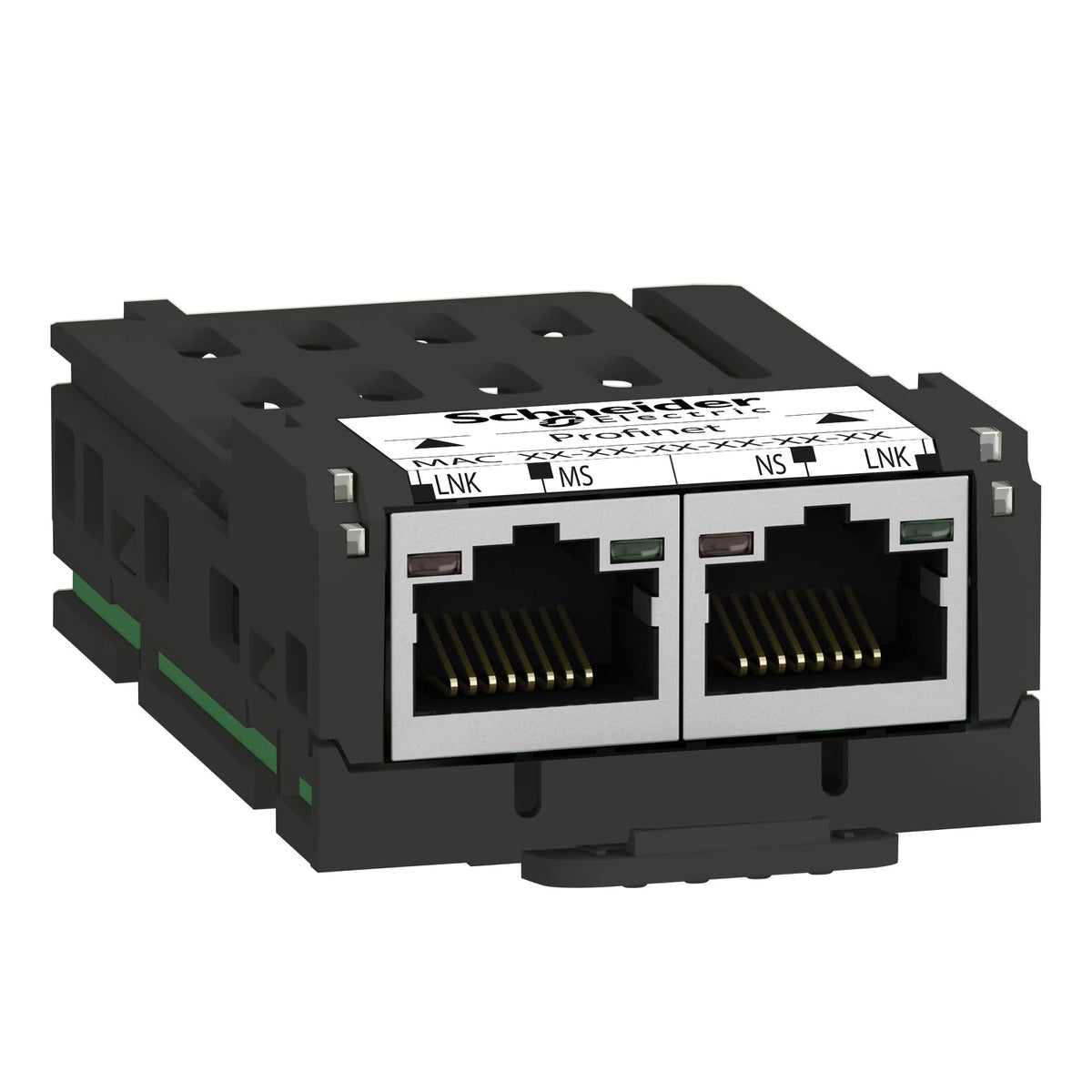

The Schneider Electric VW3A3647 is a PROFINET V2 communication module with S2 media redundancy for Altivar Process ATV900/ATV600/Modular, Altivar 340/320 drives and the Altivar Soft Starter ATS480/ATS490. It transmits at 10/100 Mbps over two RJ45 ports and follows the PROFIdrive bus profile with S2 redundancy, keeping the drive reachable on the network if one Ethernet path fails.
Choose the VW3A3647 over the standard VW3A3627 PROFINET module when the application needs S2 media redundancy - dual-ring or dual-path PROFINET wiring that keeps the drive on the network if one cable path fails. It also covers the ATS480/ATS490 soft starters and the wider ATV6000 range, not just ATV320/340/600/900 drives.
| Range of Product | Altivar |
|---|---|
| Product or Component Type | Communication module |
| Accessory / separate part category | Communication accessory |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600, Altivar 340, Altivar 320, Altivar Soft Starter ATS480, Altivar Soft Starter ATS490, Altivar Process Modular, Altivar Process ATV6000 |
|---|---|
| Communication Port Protocol | PROFINET |
| Electrical connection | 2 connectors RJ45, Ethernet |
| Transmission Rate | 10/100 Mbps |
| Display type | 1 LED MS (Module Status), 1 LED NS (Network Status), 1 LED TX/RX (Transmit/Receive port 1), 1 LED TX/RX (Transmit/Receive port 2) |
| Bus profile | PROFIdrive, S2 redundancy |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| Standards | IEC 61800-7-201 (CiA 402) |
|---|
| Part number | VW3A3647 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482067868 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CN |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VW3A3647 is 850490.
The EAN (GTIN) of VW3A3647 is 3606482067868.
VW3A3647 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
