Schneider Electric VW3A3620 Altivar Speed Monitoring Encoder Interface Module VFD Accessory

% $-112.79

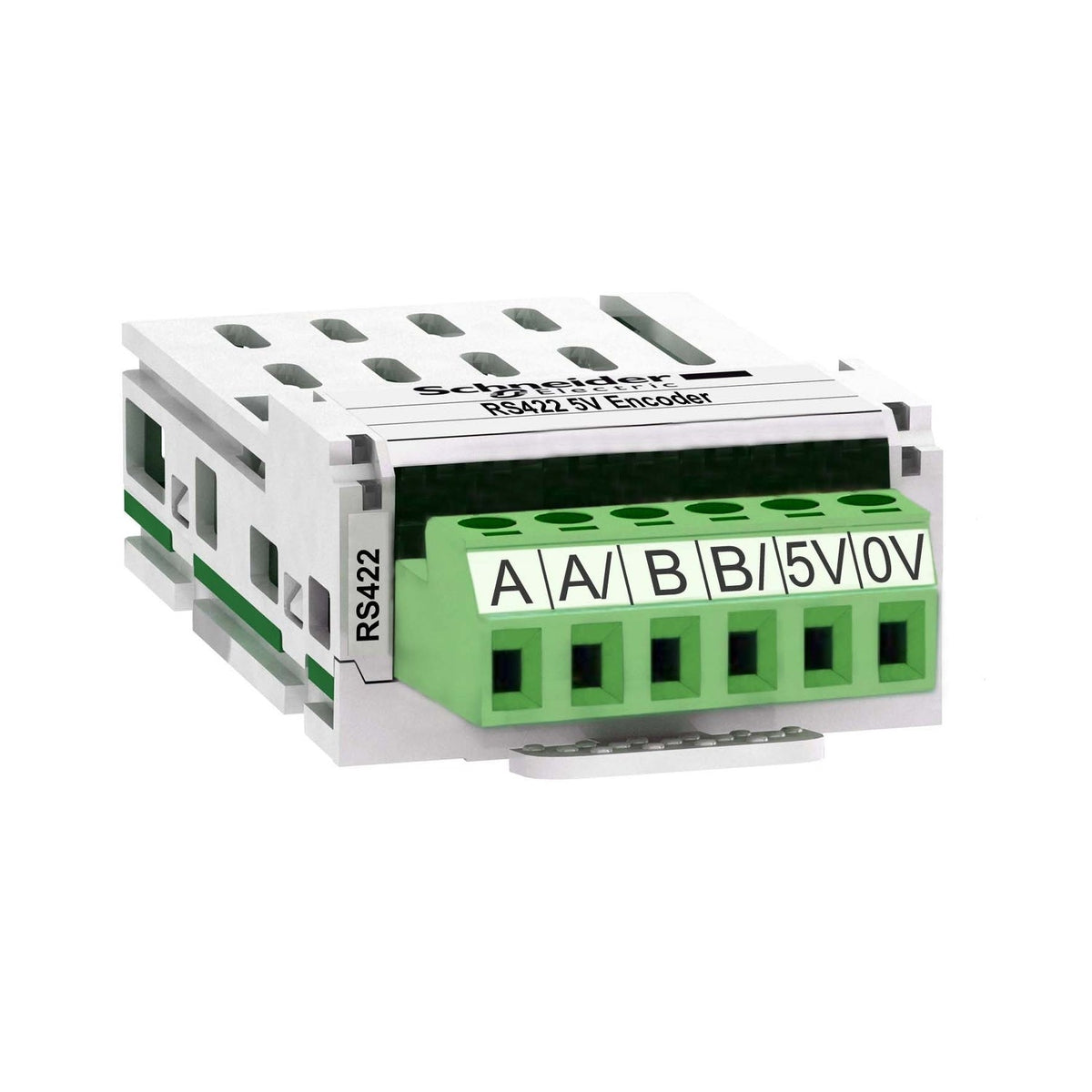

Schneider Electric VW3A3620 Altivar speed monitoring encoder interface module
Schneider Electric VW3A3620 Altivar speed monitoring encoder interface module

Schneider Electric VW3A3620 Altivar Speed Monitoring Encoder Interface Module VFD Accessory

Brand: Schneider Electric
Reference No: VW3A3620
Catalog No: VW3A3620
Series: Altivar
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$112.79

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3A3620 is a 5 V speed monitoring module that reads TTL encoder feedback at 3600 pulses per revolution for Altivar 32 and Altivar Machine ATV320 drives running firmware V1.8 or later. Encoder wiring lands on a 1.5 mm² / 16 AWG terminal rated at 200 mA, with a maximum operating frequency of 250 kHz.

Technical Specifications

Reference VW3A3620
Brand Schneider Electric
GTIN 3606480517259
Range Altivar
Product or Component Type Encoder interface module
Range Compatibility Altivar 32, Altivar Machine ATV320
Rated Supply Voltage (Us) 5 V (5-5.5 V)
Number of Pulses per Revolution 3600 (ATV32)
Product Compatibility ATV32 (firmware V1.8 or later)
Protection Type Overload protection, short-circuit protection
Maximum Operating Frequency 250 kHz
Input Signal TTL
Electrical Connection Terminal 1.5 mm2 / 16 AWG, encoder, 200 mA
Net Weight 0.3 kg

Selection Notes

Specify the VW3A3620 for speed feedback rather than full position control - its fixed 3600 pulse/rev TTL input and 250 kHz ceiling are sized for speed monitoring loops on ATV32 and ATV320 drives, not the higher-resolution absolute feedback the RS422/EnDat interface modules support.

Technical Details

Short Description
5V TTL speed monitoring / encoder interface module (3600 ppr) for Altivar ATV32/320.
Catalog No
VW3A3620
Delivery Date (Days)
30 days
Model Number
ATV320
Tariff Code
850490
