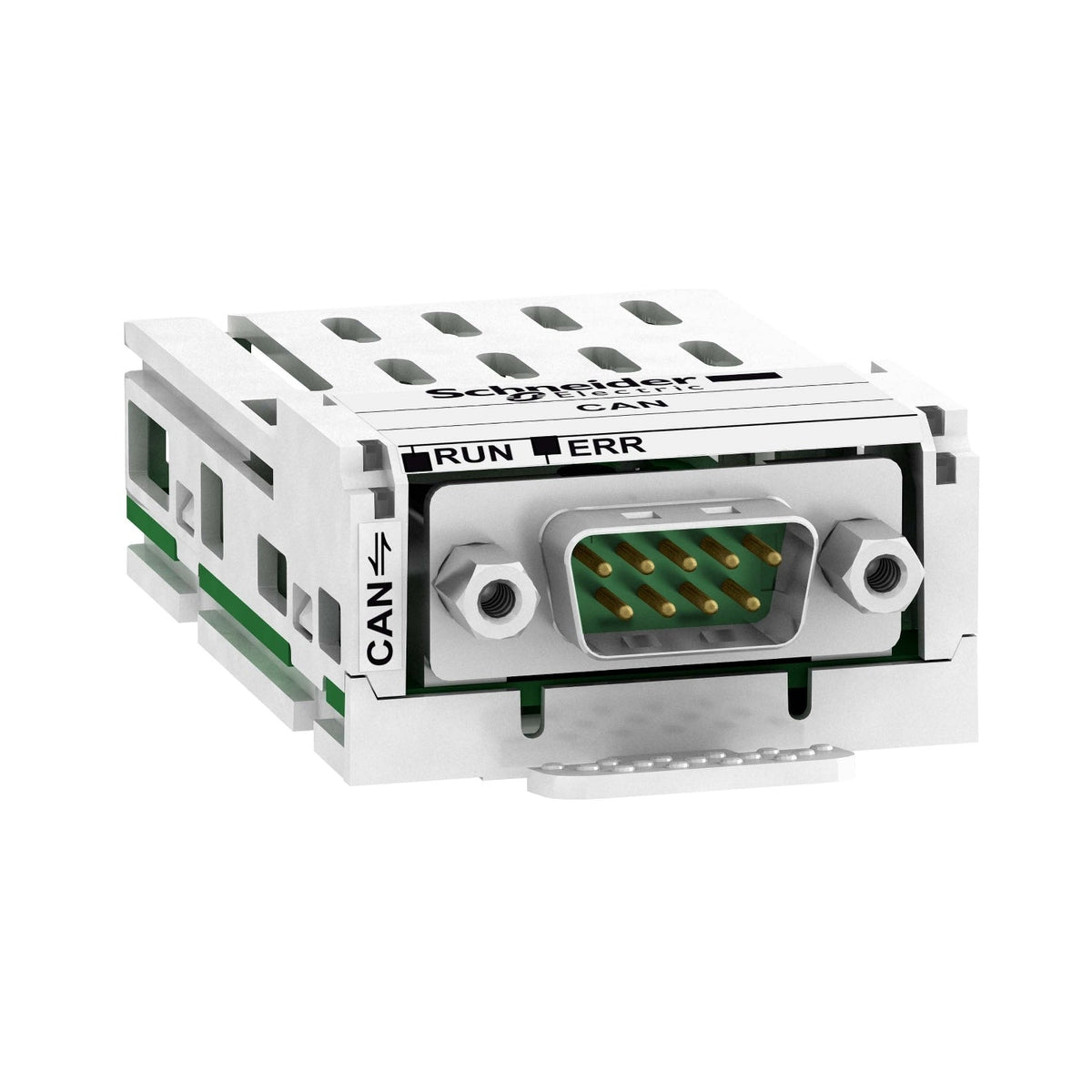

The Schneider Electric VW3A3618 is a communication module that adds CANopen and CANmotion connectivity to Altivar 32, Altivar Machine ATV320/ATV340, Altivar Process ATV600/ATV900/Modular and Lexium 32 drives. It connects through a single male SUB-D9 connector and covers the same range of compatible drives as the daisy-chain RJ45 CANopen module in this series.
Choose the VW3A3618 when the CANopen segment is already wired with SUB-D9 connectors rather than the daisy-chain RJ45 style. Both variants cover the same drive ranges - Altivar 32, ATV320, ATV340, ATV600, ATV900 and Lexium 32 - so the connector type on the existing network, not the protocol, decides which module to order.
| Range of Product | Altivar |
|---|---|
| Product or Component Type | Communication module |
| Accessory / separate part category | Communication accessories |
| Product Compatibility | Lexium 32M |
|---|---|
| Range compatibility | Altivar Process ATV600, Altivar Machine ATV340 except Sercos drives, Altivar 32, Altivar Machine ATV320, Lexium 32, Altivar Process Modular, Altivar Process ATV900 |
| Communication Port Protocol | CANopen, CANmotion |
| Electrical connection | 1 male connector SUB-D 9, CANopen, CANmotion |
| Warranty (in months) | 18 |
|---|
| Part number | VW3A3618 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480177576 |
| Country of origin | DE |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VW3A3618 is 850490.
The EAN (GTIN) of VW3A3618 is 3606480177576.
VW3A3618 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
