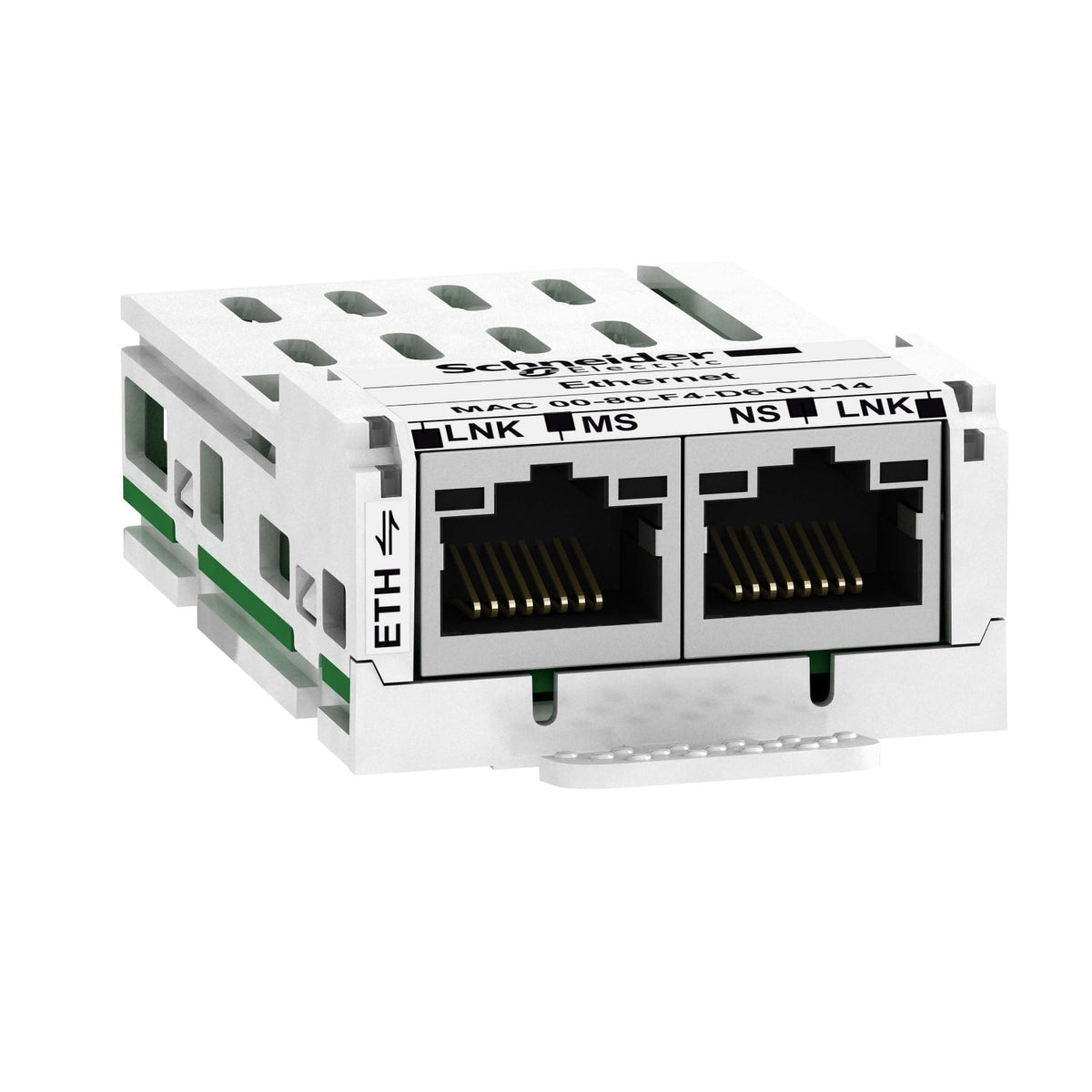

The Schneider Electric VW3A3616 is a communication module that adds Modbus TCP and EtherNet/IP connectivity to Altivar Machine ATV320 and Lexium 32 drives. It provides one RJ45 port per protocol, transmits at 10/100 Mbps in half or full duplex, and supports up to eight simultaneous Modbus TCP/EtherNet IP connections with an FDR agent for automatic device replacement.
Choose the VW3A3616 when the ATV320 needs to talk both Modbus TCP and EtherNet/IP over a single physical network rather than committing to one protocol - its two RJ45 ports, one per protocol, avoid the need for a separate gateway. The FDR agent also auto-restores IP configuration if the module is swapped out.
| Range of Product | Altivar |
|---|---|
| Product or Component Type | Communication module |
| Accessory / separate part category | Communication accessories |
| Product Compatibility | Lexium 32M |
|---|---|
| Range compatibility | Altivar Machine ATV320, Altivar 32, Lexium 32 |
| Communication Port Protocol | Modbus TCP, EtherNet/IP |
| Electrical connection | 1 connector RJ45, EtherNet/IP, 1 connector RJ45, Modbus TCP |
| Transmission Rate | 10/100 Mbps |
| Addressing | IP addressing manual, BOOTP or DHCP |
| Exchange mode | Half duplex and full duplex |
| Communication service | Up to 8 connections (includes connections of Modbus TCP/Ethernet IP) Ethernet IP/Modbus TCP, FDR Agent Ethernet IP/Modbus TCP, Read holding registers (03), 63 words max Modbus TCP, Read input registers (04), 63 words max Modbus TCP, Write single register (06) Modbus TCP, Write multiple registers (16), 63 words max Modbus TCP, Read/write multiple registers (23) Modbus TCP, Read device identification (43) Modbus TCP, Diagnostics (08) Modbus TCP, I/O scanner : read/write, 6 words maximum Modbus TCP, Communication monitoring Modbus TCP, SNMP agent Ethernet IP, Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile Ethernet IP, Fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) Ethernet IP |
| Display type | 1 LED MS (Module Status), 1 LED NS (Network Status), 1 LED Ethernet port activity, 1 LED Modbus TCP port activity |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| Warranty (in months) | 18 |
|---|
| Part number | VW3A3616 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480177590 |
| Country of origin | CN |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
