Schneider Electric VW3A3424 Altivar HTL Encoder Interface Module VFD Accessory

% $-185.70

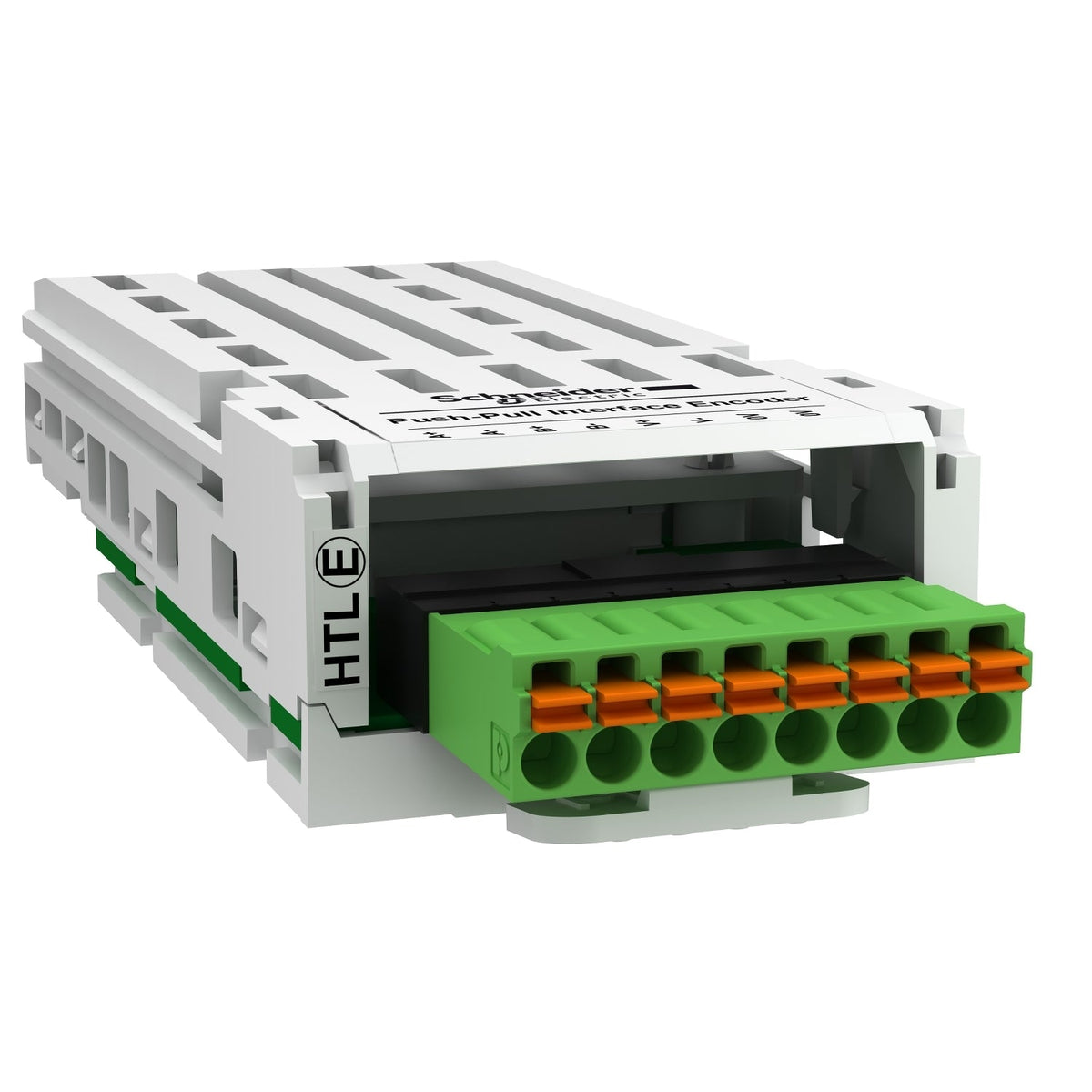

Schneider Electric VW3A3424 Altivar HTL encoder interface module
Schneider Electric VW3A3424 Altivar HTL encoder interface module

Schneider Electric VW3A3424 Altivar HTL Encoder Interface Module VFD Accessory

Brand: Schneider Electric
Reference No: VW3A3424
Catalog No: VW3A3424
Series: Altivar
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$185.70

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3A3424 is a high-threshold logic (HTL) encoder interface module that connects a 12 V, 15 V or 24 V DC incremental encoder to Altivar Process ATV900, Altivar Process Modular and Altivar Machine ATV340 drives. Feedback wiring terminates on a removable spring connector, and the module operates up to a 300 kHz maximum frequency over cable runs of up to 500 m.

Technical Specifications

Reference VW3A3424
Brand Schneider Electric
GTIN 3606481211491
Range Altivar
Product or Component Type Encoder interface module
Range Compatibility Altivar Process ATV900, Altivar Process Modular, Altivar Machine ATV340
Encoder Type High threshold logic (HTL)
Rated Supply Voltage (Us) 12 V DC, 15 V DC, 24 V DC
Maximum Supply Current 0.2 A at 12 V DC, 0.175 A at 15 V DC, 0.1 A at 24 V DC
Protection Type Short-circuit protection, overload protection
Maximum Cable Distance 500 m
Maximum Operating Frequency 300 kHz
Input Signal Push-pull differential A/AB/B, push-pull single-ended A or AB, open collector differential A/AB/B, open collector PNP/NPN A or AB
Connector Type 1 removable spring connector
Net Weight 0.15 kg

Selection Notes

Specify the VW3A3424 when the encoder outputs an HTL (high-threshold logic) signal rather than a TTL or RS422 level - HTL's higher noise margin suits longer cable runs, and this module supports up to 500 m versus the 100 m typical of TTL/RS422 interfaces. It accepts push-pull or open-collector, single-ended or differential wiring, matching whichever output stage the encoder provides.

Technical Details

Short Description
HTL encoder interface module for 12-24V incremental encoders on Altivar ATV340/900 drives.
Catalog No
VW3A3424
Delivery Date (Days)
30 days
Model Number
Altivar
Tariff Code
850490
