Schneider Electric VW3A3423 Altivar Resolver Interface Module VFD Accessory

% $-178.23
Schneider Electric VW3A3423 Altivar resolver interface module
Schneider Electric VW3A3423 Altivar resolver interface module

Schneider Electric VW3A3423 Altivar Resolver Interface Module VFD Accessory

Brand: Schneider Electric
Reference No: VW3A3423
Catalog No: VW3A3423
Series: Altivar
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$178.23

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

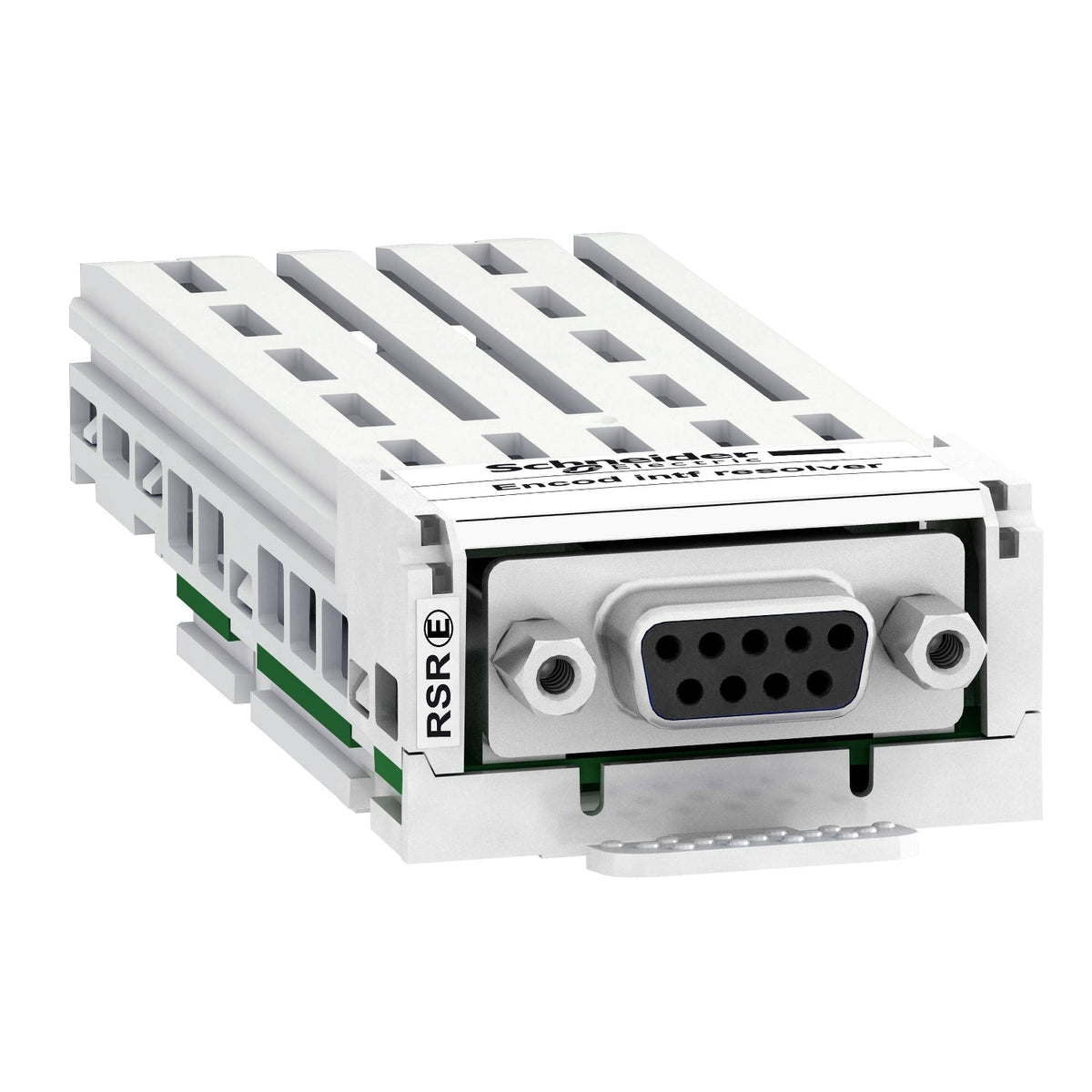

The Schneider Electric VW3A3423 is a resolver interface module that connects a resolver feedback device to Altivar Process ATV900, Altivar Process Modular and Altivar Machine ATV340 drives for closed-loop position and speed control. Feedback is wired through a female SUB-D9 connector, with ratio options of 1, 3/4, 1/2 or 3/10 and a maximum operating frequency of 12 kHz.

Technical Specifications

Reference VW3A3423
Brand Schneider Electric
GTIN 3606485441276
Range Altivar
Product or Component Type Encoder interface module
Range Compatibility Altivar Process ATV900, Altivar Process Modular, Altivar Machine ATV340
Encoder Type Resolver
Maximum Supply Current 0.05 A
Protection Type Overload protection, short-circuit protection
Maximum Cable Distance 100 m
Maximum Operating Frequency 12 kHz
Ratio 3/10, 1/2, 3/4, 1
Connector Type 1 female SUB-D 9
Net Weight 0.15 kg

Selection Notes

Specify the VW3A3423 when the motor's feedback device is a resolver rather than a digital or analog encoder. The module supports four transformation ratios (1, 3/4, 1/2, 3/10) to match whichever resolver is installed on the motor, and its 12 kHz maximum operating frequency is the lowest of the encoder interface modules in this range, reflecting the resolver's lower signal bandwidth versus RS422 or HTL encoders.

Technical Details

Short Description
Resolver interface module connects resolver feedback to Altivar ATV340/900 drives.
Catalog No
VW3A3423
Delivery Date (Days)
30 days
Model Number
Altivar
Tariff Code
850490
