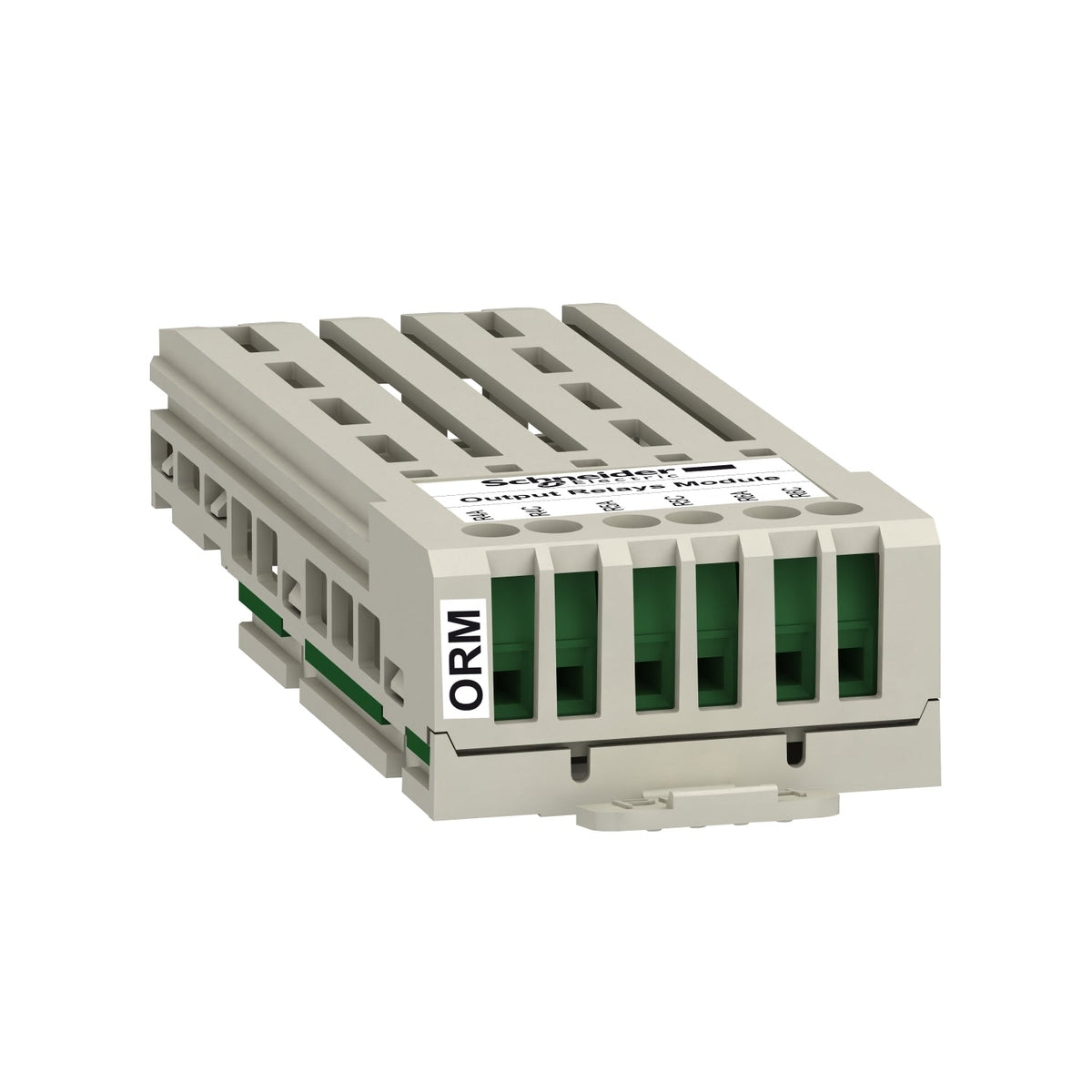

The Schneider Electric VW3A3204 is an additional output module that adds three normally-open relay outputs (R4, R5, R6) to Altivar ATV340, ATV600, ATV610 and ATV900 drives. Each relay switches up to 5 A at 250 V AC resistive or 2 A at 250 V AC / 30 V DC inductive, with a minimum switching current of 5 mA at 24 V DC, and wiring lands on a 1.5 mm2 screw terminal block.
| Product or Component Type | Additional output module |
|---|---|
| Range Compatibility | Altivar Machine ATV340, Altivar ATV610, Altivar Process ATV900, Altivar Process ATV600 |
| Input/Output Type | 3 relay output |
| Discrete output number | 3 |
| Discrete output type | R4, R5, R6) relay normally open 1 ms |
| Electrical durability | 100000 cycles |
|---|---|
| Minimum switching current | 5 mA 24 V DC |
| Maximum switching current | 2 A 250 V AC inductive, cos phi = 0.4 5 ms, 2 A 30 V DC inductive, cos phi = 0.4 5 ms, 5 A 250 V AC resistive, cos phi = 1 5 ms, 5 A 30 V DC resistive, cos phi = 1 5 ms |
| Electrical connection | Screw terminal block, 1.5 mm² / 16 AWG, 4.4 lbf.in (0.5 N.m) |
| Net Weight | 0.9 lb(US) (0.4 kg) |
| Warranty (in months) | 18 |
|---|
| Part number | VW3A3204 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480702532 |
| Country of origin | ID |
|---|---|
| Shipping weight | 0.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
