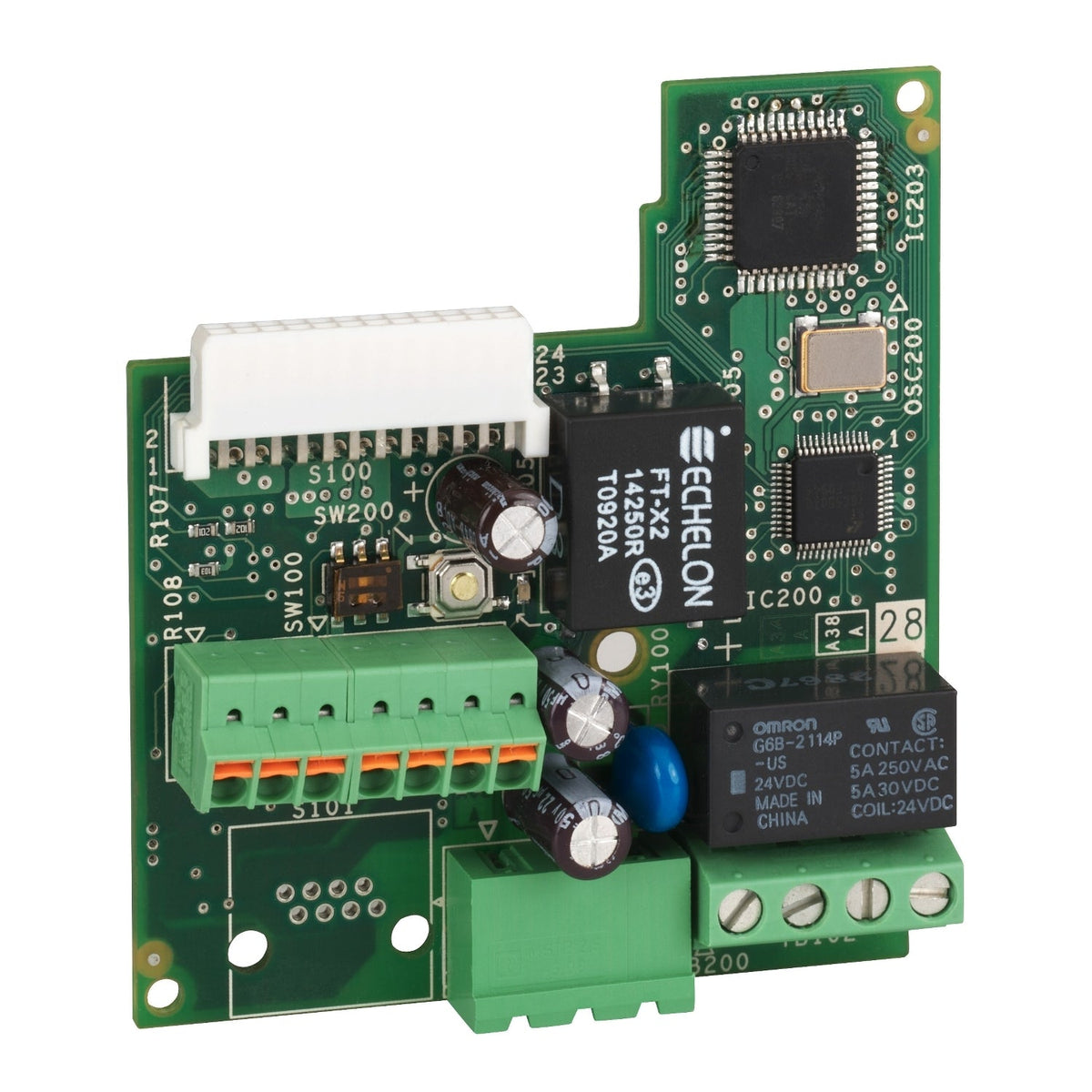

The Schneider Electric VW3A21212 is a LonWorks communication card for the Altivar 212 variable speed drive, adding a LonWorks fieldbus port plus onboard programmable I/O on screw and spring terminals. It provides a logic input, a contact input, an analog input and a multifunction relay output alongside a 24 V DC auxiliary power output, and weighs 0.05 kg.
| Product or Component Type | Communication card |
|---|---|
| Range Compatibility | Altivar 212 |
| Communication Port Protocol | LonWorks |
| Electrical connection | Screw terminal NETA, NETB LonWorks transmission/reception data, Screw terminal SHLD LonWorks communication shield, Screw terminal G/E grounding terminal, Spring terminal F programmable logic input, Spring terminal R programmable contact input, Spring terminal VIB multifunction programmable analog input, Spring terminal CC control circuit equipotential, Spring terminal P24 power supply output, Screw terminal FLA, FLB, FLC multifunction programmable relay output |
|---|---|
| Input type | Multifunction programmable logic input F < 24 V DC 5 mA sink or source, Multifunction programmable contact input R < 24 V DC 5 mA sink or source, Multifunction programmable analog input VIB 10 V DC 30 kOhm |
| Output type | Multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1, Multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4, Multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A, Power supply output P24 24 V DC 50 mA |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Warranty (in months) | 18 |
|---|
| Part number | VW3A21212 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480388590 |
| Country of origin | ID |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VW3A21212 is 850490.
The EAN (GTIN) of VW3A21212 is 3606480388590.
VW3A21212 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
