AltivarSchneider Electric VW3A1113 Altivar Plain Text Display Terminal 128x64 IP21 VFD Accessory
IP21 plain text display terminal, 128 x 64 px, 2 lines, for Altivar ATV340 and Easy ATV610.
Description
About the VW3A1113
About the VW3A1113

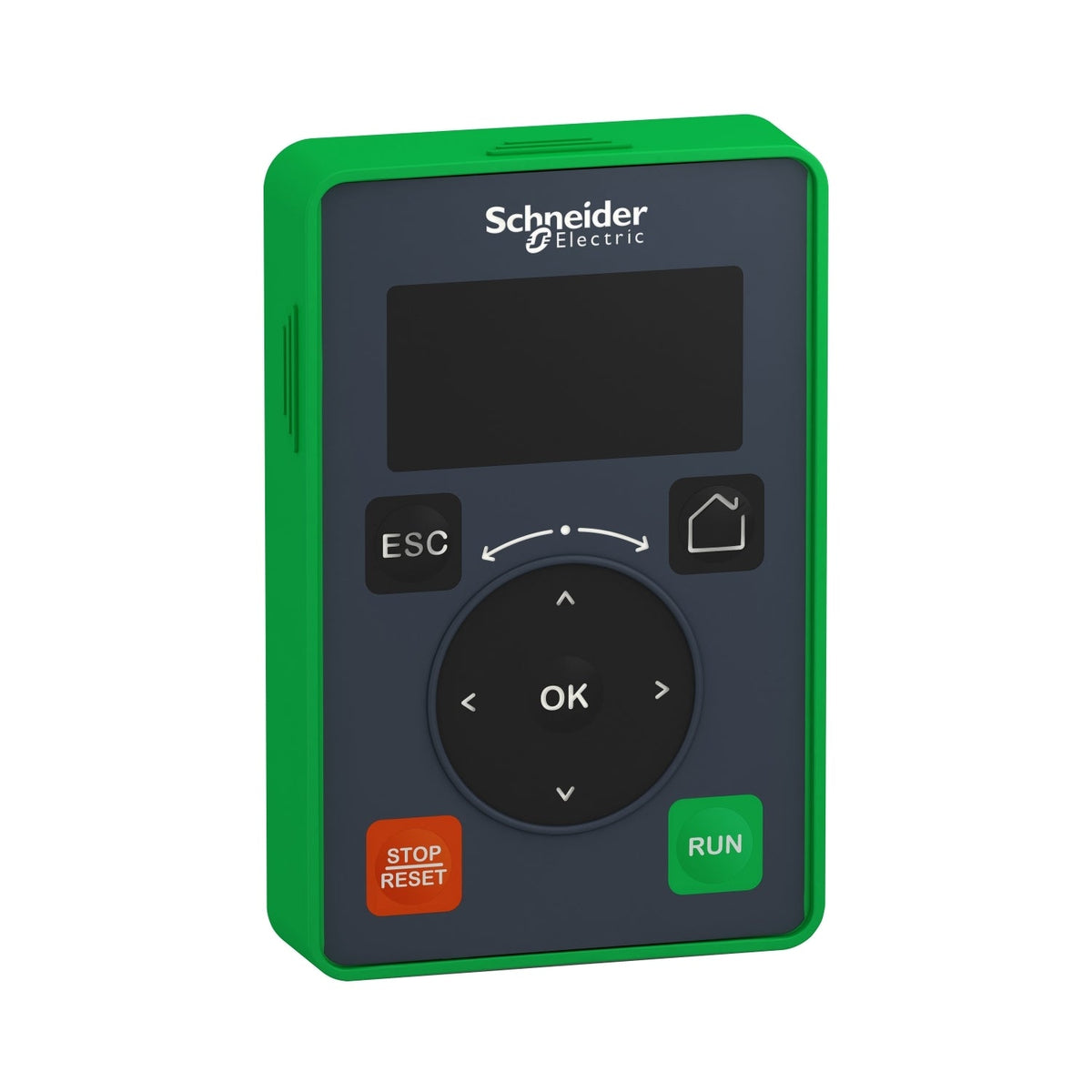

The Schneider Electric VW3A1113 is an IP21 plain text display terminal for the Altivar range, used to control, adjust and configure a drive, display live values and save or download configurations. It gives a 128 x 64 pixel, 2-line backlit white LCD screen in six languages, has no built-in real-time clock, and covers the Easy Altivar 610 and Altivar Machine ATV340 drives.
Selection Notes
The IP21 rating and 2-line text screen make this the lower-cost keypad choice for panels mounted inside an enclosure rather than on an exposed door; it does not carry the IP65 sealing or 8-line graphic display of the higher-end remote terminal. With no built-in real-time clock, fault timestamps still come from the drive itself.
Specification
Full specification
Main 7
| Range of Product | Altivar |
|---|---|
| Range Compatibility | Easy Altivar 610, Altivar Machine ATV340 |
| Accessory / separate part category | Display and signalling accessories |
| Accessory / Separate Part Type | Display terminal |
| Accessory / separate part destination | Variable speed drive |
| Product Specific Application | To control, adjust and configure the drive, To display the current values, To save and download configurations |
| IP Degree of Protection | IP21 |
Complementary 6
| User Language | French, German, English, Spanish, Italian, Chinese |
|---|---|
| Realtime clock | Without |
| Display type | Backlit LCD screen white |
| Messages display capacity | 2 lines |
| Pixel resolution | 128 x 64 |
| Net Weight | 0.11 lb(US) (0.05 kg) |
Environment 1
| Ambient Air Temperature for Operation | 5…122 °F (-15…50 °C) |
|---|
Show all 27 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | VW3A1113 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480702228 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3A1113 3
-
Datasheet
ProductDownload PDF: Product data sheet VW3A1113
Product data sheet VW3A1113
-
Catalogue
ProductDownload PDF: Catalog 0100CT2401-SEC-18
Catalog 0100CT2401-SEC-18
-
Certificate
ProductDownload PDF: Environmental Disclosure ENVPEP2010013EN
Environmental Disclosure ENVPEP2010013EN
Quick answers
Questions about the VW3A1113
What is the HS code of VW3A1113 for customs?
The tariff (HS) code on file for VW3A1113 is 850490.
What is the EAN of VW3A1113?
The EAN (GTIN) of VW3A1113 is 3606480702228.
Where does VW3A1113 ship from, and how fast?
VW3A1113 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
