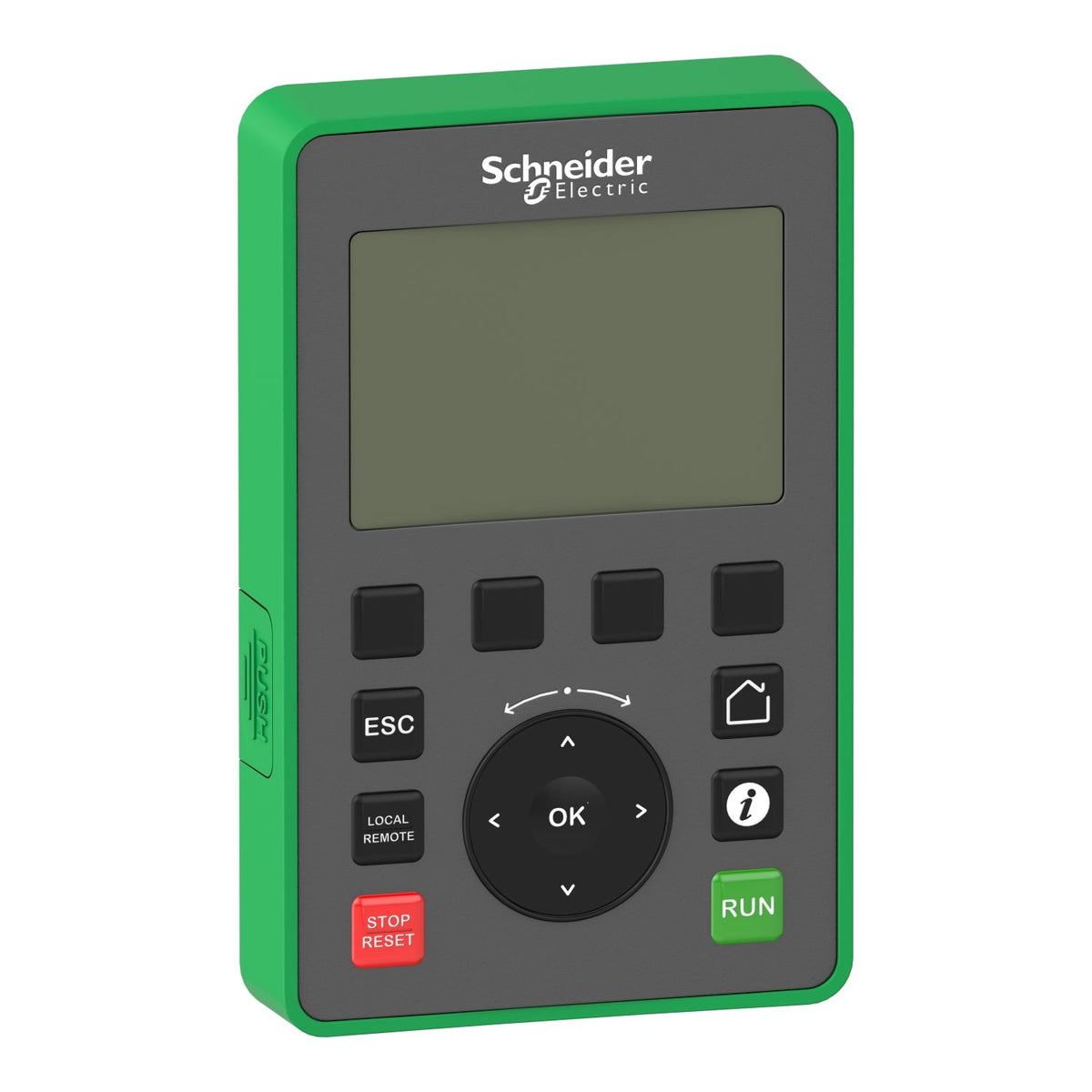

The Schneider Electric VW3A1111 is an IP65 graphic display terminal for the Altivar range, used to control, adjust and configure a variable speed drive, display live values and save or download configurations to its 16 MB memory. It offers a 240 x 160 pixel, 8-line backlit white-and-red LCD screen in 24 languages, and covers the Altivar Process ATV900, Altivar Process ATV600 and Altivar Machine ATV340 drives.
The IP65 rating and 24-language library make this terminal suited to enclosure doors exposed to washdown or dust, and to multi-site fleets that need one terminal across regions; a lower-cost IP54 terminal is enough where the panel stays in a clean indoor cabinet. The built-in real-time clock with a CR2032 backup battery lets the terminal timestamp fault logs independently of the drive.
| Range of Product | Altivar |
|---|---|
| Range Compatibility | Altivar Process ATV900, Altivar Process ATV600, Altivar Machine ATV340 |
| Accessory / separate part category | Display and signalling accessories |
| Accessory / Separate Part Type | Display terminal |
| Accessory / separate part destination | Variable speed drive |
| Product Specific Application | To control, adjust and configure the drive, To save and download configurations, To display the current values |
| IP Degree of Protection | IP65 |
| User Language | Spanish, Romanian, Turkish, Polish, Swedish, Estonian, Bulgarian, English, Russian, Greek, Danish, Hungarian, Chinese, Norwegian, Lituanien, French, Brazilian, German, Korean, Portuguese, Finnish, Czech, Slovak, Taiwanese, Dutch, Italian, Ukrainian |
|---|---|
| Realtime clock | Built-in |
| Battery Size | CR2032 |
| Battery Life | 10 year(s) |
| Display type | Backlit LCD screen white and red |
| Messages display capacity | 8 lines |
| Pixel resolution | 240 x 160 |
| Net Weight | 0.4 lb(US) (0.2 kg) |
| Ambient Air Temperature for Operation | 5…140 °F (-15…60 °C) |
|---|
| Part number | VW3A1111 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480702235 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VW3A1111 is 850490.
The EAN (GTIN) of VW3A1111 is 3606480702235.
VW3A1111 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
