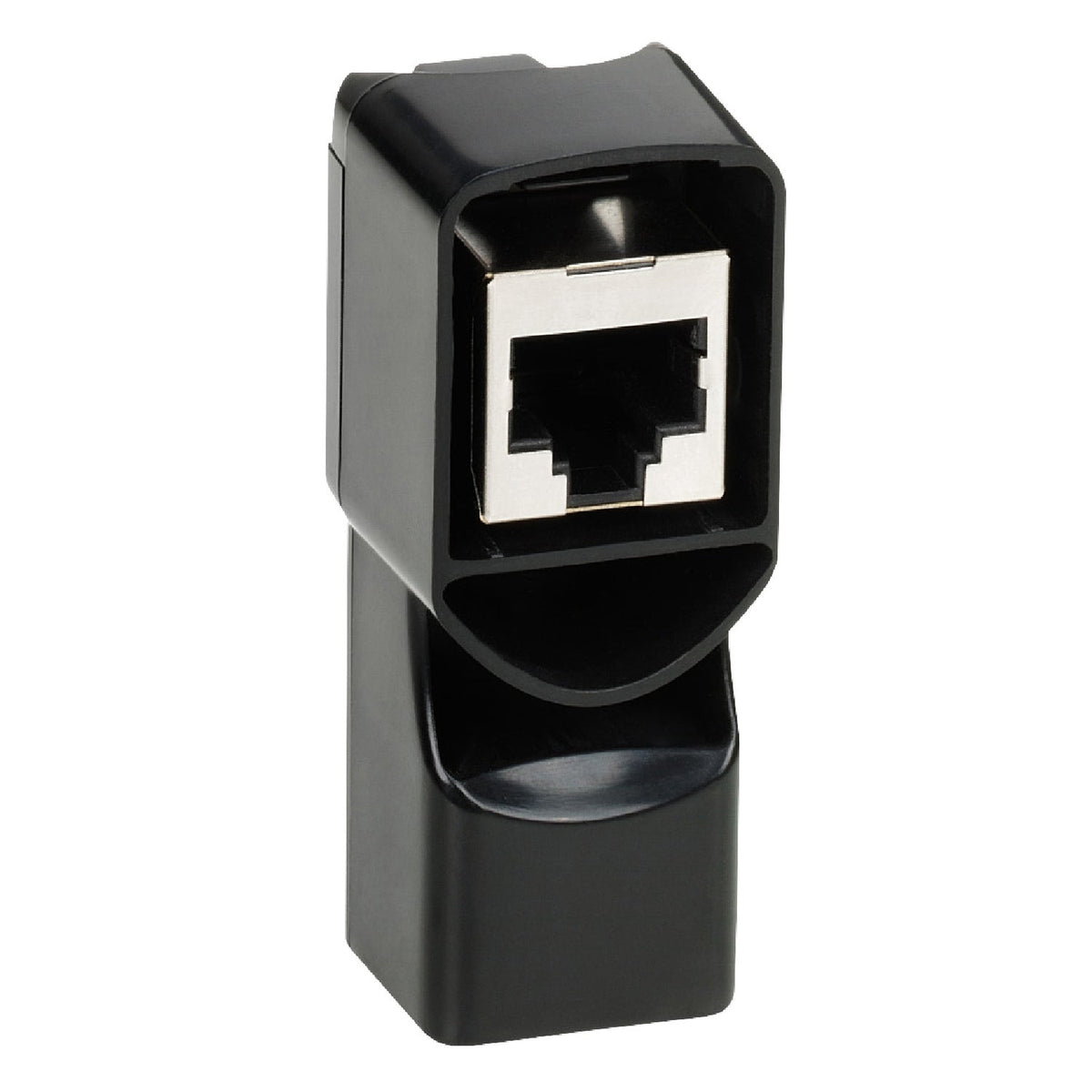

The Schneider Electric VW3A1105 is an RJ45 female-female adaptor used to extend or join the cable run of a remote graphic display terminal on an Altivar drive. The kit contains a single RJ45 female/female adaptor, is compatible with the VW3A1104R... cable and VW3A1101 terminal, and covers the Altivar 32, Altivar 312, Altivar 312 Solar, ATV340, ATV320, Altivar 212, Altivar 71 and Altivar 61 ranges.
| Range of Product | Altivar |
|---|---|
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Adaptor |
| Product or Component Type | Adaptor |
| Kit composition | 1 adaptor RJ45 female/female |
| Product Compatibility | VW3A1104R..., VW3A1101 |
| Accessory / separate part destination | Remote graphic display terminal |
| Range Compatibility | Altivar 32, Altivar 312 Solar, Altivar 61Q, Altivar 312, Altivar Machine ATV340, Altivar 71Q, Altivar Machine ATV320, Altivar 212, Altivar 71, Altivar 61 |
| Net Weight | 0.02 lb(US) (0.01 kg) |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | VW3A1105 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118070455 |
| Country of origin | TW |
|---|---|
| Shipping weight | 0.01 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VW3A1105 is 850490.
The EAN (GTIN) of VW3A1105 is 3389118070455.
VW3A1105 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
