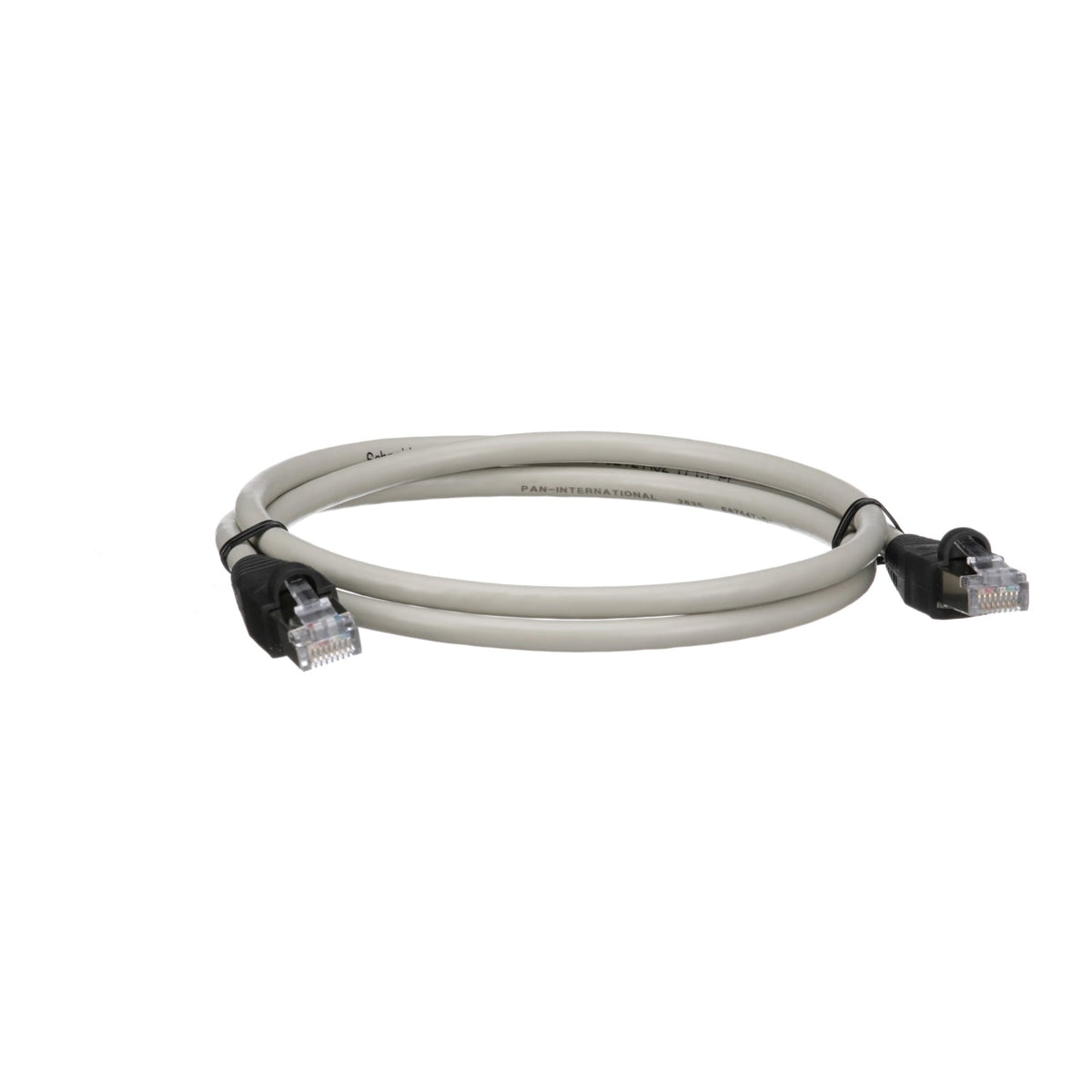

The Schneider Electric VW3A1104R10 is a 1 m connecting cable with two male RJ45 connectors that links a remote graphic display terminal to an Altivar variable speed drive. It is compatible with the VW3M1701 and VW3A1101 terminals and covers the Altivar 61, Altistart 22, Altivar 12, Altivar 212, Altivar 71, ATV340, Altivar 32, Lexium 32 and Altivar Process ATV600/900 ranges.
| Range of Product | Altivar |
|---|---|
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Remote cable |
| Product or Component Type | Connecting cable |
| Product Compatibility | VW3M1701, VW3A1101 |
| Accessory / separate part destination | Remote graphic display terminal |
| Range Compatibility | Altivar 61, Altistart 22, Altivar 12, Altivar 212, Altivar 71, Altivar Machine ATV340, Altivar 32, Altivar 71Q, Altivar 312, Altivar ATV610, Altivar 61Q, Altivar Process ATV600, Altivar Machine ATV320, Altivar 310, Altivar 312 Solar, Lexium 32, Altivar Process ATV900 |
| Cable length | 3.3 ft (1 m) |
| Electrical Connection | 2 male connectors |
|---|---|
| Connector Type | RJ45 |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Warranty (in months) | 18 |
|---|
| Part number | VW3A1104R10 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118070257 |
| Country of origin | CN |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VW3A1104R10 is 850490.
The EAN (GTIN) of VW3A1104R10 is 3389118070257.
VW3A1104R10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
