Part number
TMCR2TI2
$111.95 On request Dispatch — · From TürkiyeGet a Quote
Easy Modicon M200

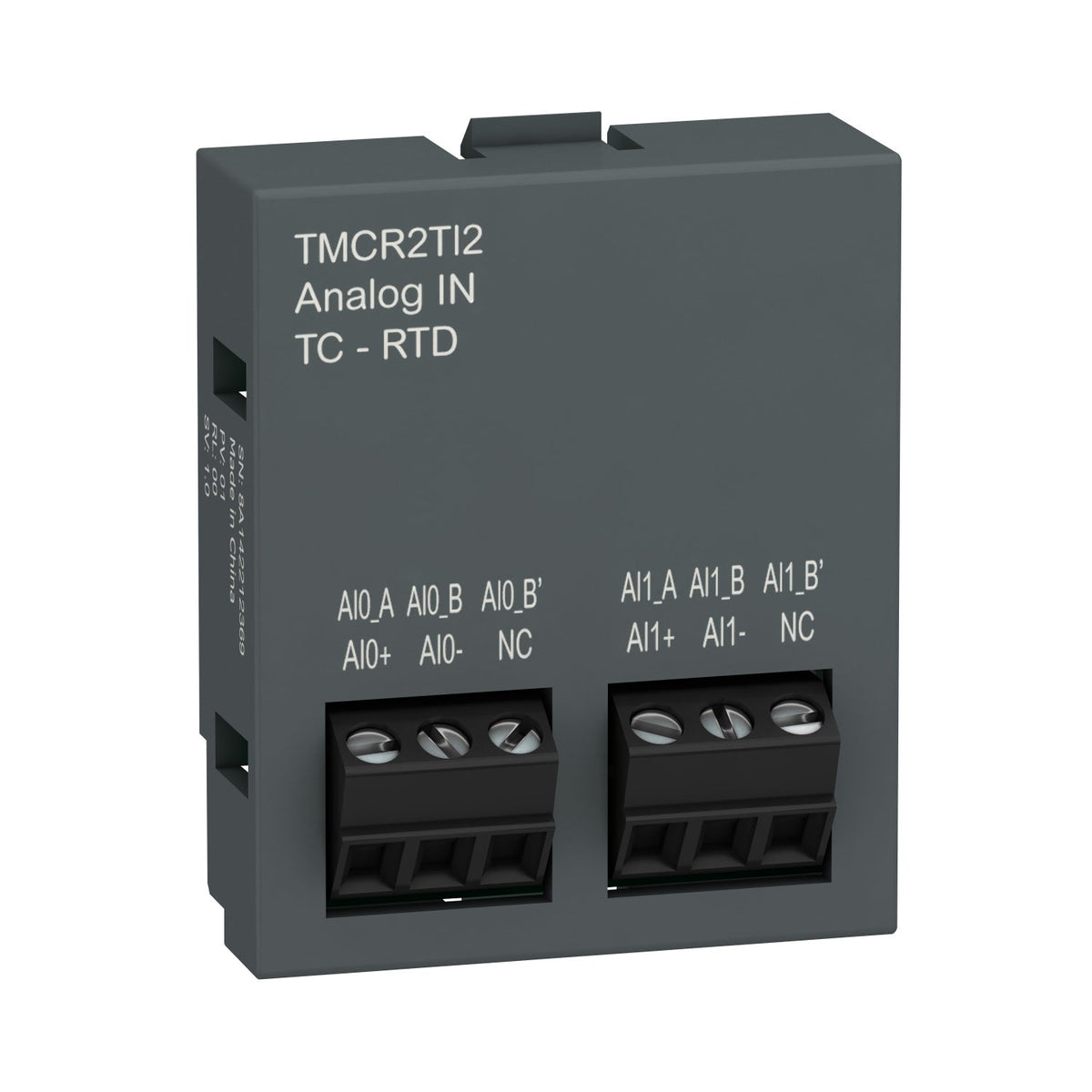

Schneider Electric TMCR2TI2 Modicon M200 2 Temperature Inputs Cartridge PLC I/O Module

Easy Modicon M200 cartridge, 2 temperature inputs, thermocouple/RTD, 14-bit resolution.

Range of product
Modicon M200
Product or component type
Analogue input cartridge
Product compatibility
Easy Modicon M200
Analogue input number
2
Description

About the TMCR2TI2

The Schneider Electric TMCR2TI2 is an Easy Modicon M200 cartridge that adds 2 temperature inputs to an Easy Modicon M200 base, supporting Pt100/Pt1000, Ni100/Ni1000 probes and J/K/R/S/B/T/N/E/C thermocouples at 14-bit resolution. It connects through two screw terminal blocks at 3.81 mm pitch and weighs 0.012 kg.

Selection Notes

Choose the TMCR2TI2 over a current/voltage input cartridge when the field sensors are RTDs or thermocouples; the sampling duration differs by sensor type, 125 ms for thermocouples versus 250 ms for RTD/probe inputs, so budget scan time accordingly on multi-channel temperature loops.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 4

Range of product Modicon M200
Product or component type Analogue input cartridge
Product compatibility Easy Modicon M200
Analogue input number 2

Complementary 18

Analogue input type thermocouple - 200...1000 °C with thermocouple J, thermocouple - 200...1300 °C with thermocouple K, thermocouple 0...1760 °C with thermocouple R, thermocouple 0...1760 °C with thermocouple S, thermocouple 0...1820 °C with thermocouple B, thermocouple - 200...400 °C with thermocouple T, thermocouple - 200...1300 °C with thermocouple N, thermocouple - 200...800 °C with thermocouple E, thermocouple 0...2315 °C with thermocouple C, Ni 100/Ni 1000 temperature probe - 60...180 °C, Pt 100 temperature probe - 200...850 °C, Pt 1000 temperature probe - 200...600 °C
Analogue input resolution 14 bits
LSB value 0.1 °C
Sampling duration 125 ms, analogue input type: thermocouple, 250 ms, analogue input type: temperature probe
Absolute accuracy error +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe, +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C, +/- 0.1 % of full scale for thermocouple C
Temperature drift +/- 0.02 %FS/°C
Repeat accuracy +/- 0.5 %FS
Non-linearity +/- 0.01 %FS
Cross talk <= 1 LSB
Type of cable Twisted shielded pairs cable
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
Maximum cable distance between devices Twisted shielded pairs cable: <30 m for input
Insulation Non-insulated between analogue input and internal logic
Height 41 mm
Depth 15 mm
Width 35 mm
Net weight 0.012 kg
Input impedance >= 1 MOhm

Environment 1

Immunity to microbreaks 10 ms
Show all 52 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number TMCR2TI2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.800 cm
Package 1 Length 7.000 cm
Package 1 Weight 33.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 75
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.735 kg
Unit Type of Package 3 P06
Number of Units in Package 3 1200
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 51.760 kg
Shipping weight 0.012 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TMCR2TI2

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the TMCR2TI2

What is the HS code of TMCR2TI2 for customs?

The tariff (HS) code on file for TMCR2TI2 is 853710.

Where does TMCR2TI2 ship from, and how fast?

TMCR2TI2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
