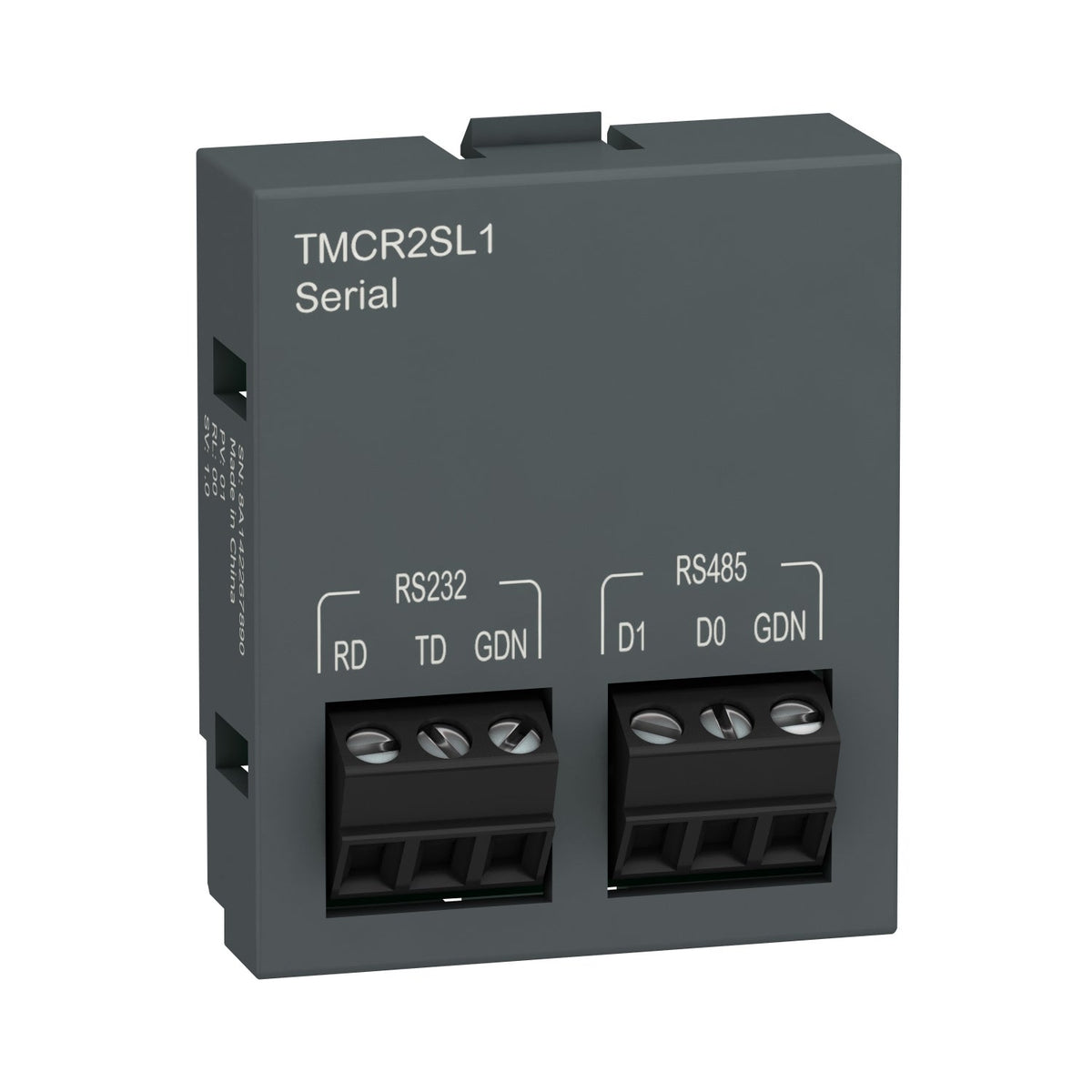

The Schneider Electric TMCR2SL1 is an Easy Modicon M200 cartridge that adds one non-isolated serial line to an Easy Modicon M200 base, with screw-terminal connections for RS232 or RS485 and a transmission rate up to 115.2 kbit/s. It runs Modbus master/slave RTU/ASCII or SoMachine-Network protocols and weighs 0.012 kg.
Choose the TMCR2SL1 to add a spare serial port to an Easy Modicon M200 controller for a Modbus RTU/ASCII slave device or a SoMachine-Network link, without occupying the controller's onboard port; screw-terminal RS232 or RS485 selection is set per installation rather than fixed per cartridge.
| Range of product | Modicon M200 |
|---|---|
| Product or component type | Serial line cartridge |
| Product compatibility | Easy Modicon M200 |
| Integrated connection type | Non isolated serial link - screw terminal block for RS232, Non isolated serial link - screw terminal block for RS485 |
|---|---|
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232C |
| Communication port protocol | Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Insulation | Non-insulated between lines and internal logic |
| Height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Net weight | 0.012 kg |
| Warranty (in months) | 18 |
|---|
| Part number | TMCR2SL1 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.6 cm |
| Package 1 Width | 7.0 cm |
| Package 1 Length | 3.5 cm |
| Package 1 Weight | 20.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.07 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 57 kg |
| Shipping weight | 0.012 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TMCR2SL1 is 853710.
TMCR2SL1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
