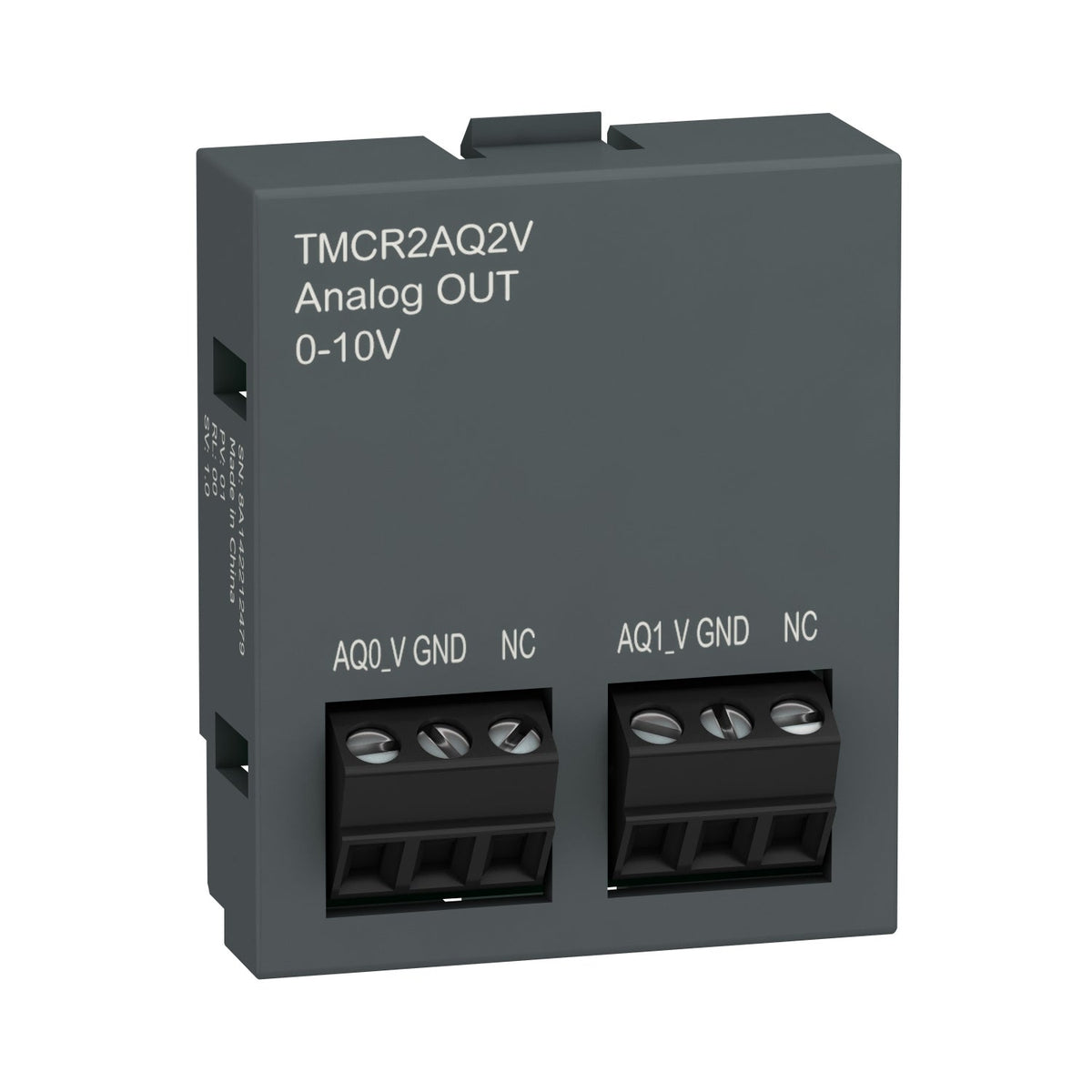

The Schneider Electric TMCR2AQ2V is an Easy Modicon M200 cartridge that adds 2 analog voltage outputs at 0-10 V, 12-bit resolution, to an Easy Modicon M200 base. It connects through two screw terminal blocks at 3.81 mm pitch, drives loads down to 2 kOhm, weighs 0.012 kg, and stabilizes within 40 milliseconds.
Choose the voltage-output TMCR2AQ2V when the downstream input accepts 0-10 V rather than a 4-20 mA loop; a current-output cartridge in the same range covers 4-20 mA loads instead.
| Range of product | Modicon M200 |
|---|---|
| Product or component type | Analogue output cartridge |
| Product compatibility | Easy Modicon M200 |
| Analogue output number | 2 |
|---|---|
| Analogue output type | Voltage: 0...10 V |
| Analogue output resolution | 12 bits |
| LSB value | 2.44 mV 0...10 V voltage |
| load type | Resistive |
| Load impedance ohmic | >= 2 kOhm |
| Conversion time | 20 ms |
| Stabilisation time | 40 ms |
| Absolute accuracy error | +/- 1 % of full scale, +/- 0.3 % of full scale at 25 °C |
| Temperature drift | +/- 0.02 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.01 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for output |
| Insulation | Non-insulated between analogue output and internal logic |
| Height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Net weight | 0.012 kg |
| Immunity to microbreaks | 10 ms |
|---|
| Part number | TMCR2AQ2V |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.6 cm |
| Package 1 Width | 7.0 cm |
| Package 1 Length | 3.5 cm |
| Package 1 Weight | 20.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.07 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 106 kg |
| Shipping weight | 0.012 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
