Part number
TMCR2AQ2C
$96.77 On request Dispatch — · From TürkiyeGet a Quote
Easy Modicon M200

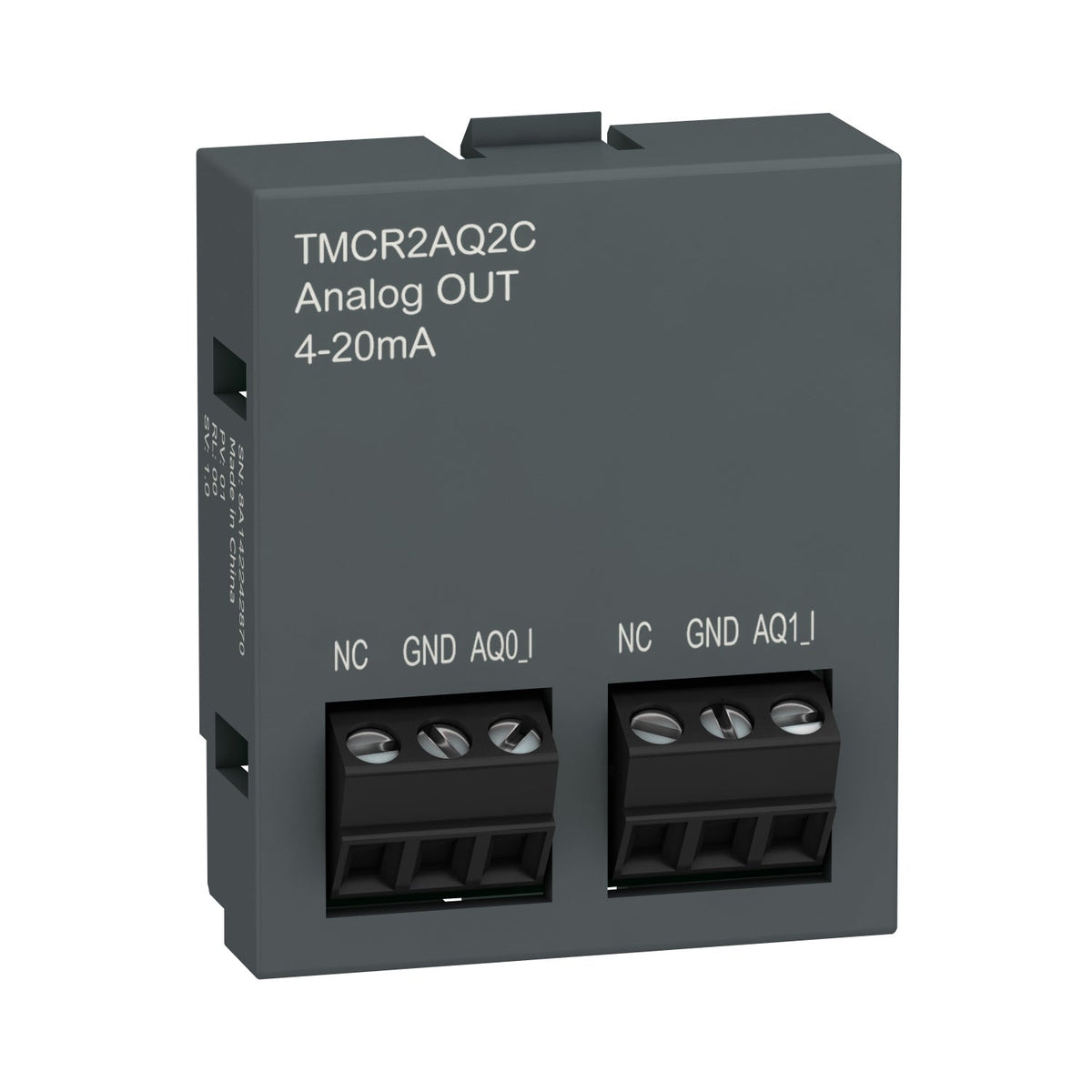

Schneider Electric TMCR2AQ2C Modicon M200 2 Analog Current Outputs Cartridge PLC I/O Module

Easy Modicon M200 cartridge, 2 analog current outputs, 4-20mA, 12-bit resolution.

Range of product
Modicon M200
Product or component type
Analogue output cartridge
Product compatibility
Easy Modicon M200
Description

About the TMCR2AQ2C

The Schneider Electric TMCR2AQ2C is an Easy Modicon M200 cartridge that adds 2 analog current outputs at 4-20 mA, 12-bit resolution, to an Easy Modicon M200 base. It connects through two screw terminal blocks at 3.81 mm pitch, drives loads up to 500 ohms, and weighs 0.012 kg.

Selection Notes

Choose the current-output TMCR2AQ2C when the downstream device, such as a VFD reference, positioner, or chart recorder, expects a 4-20 mA loop signal rather than a 0-10 V input; a voltage-output cartridge in the same range covers 0-10 V-only loads instead.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 3

Range of product Modicon M200
Product or component type Analogue output cartridge
Product compatibility Easy Modicon M200

Complementary 21

Analogue output number 2
Analogue output type Current: 4...20 mA
Analogue output resolution 12 bits
LSB value 3.91 µA 4...20 mA current
load type Resistive
Load impedance ohmic <= 500 Ohm
Conversion time 20 ms
Stabilisation time 40 ms
Absolute accuracy error +/- 1 % of full scale, +/- 0.3 % of full scale at 25 °C
Temperature drift +/- 0.02 %FS/°C
Repeat accuracy +/- 0.4 %FS
Non-linearity +/- 0.01 %FS
Cross talk <= 1 LSB
Type of cable Twisted shielded pairs cable
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs
Maximum cable distance between devices Twisted shielded pairs cable: <30 m for output
Insulation Non-insulated between analogue output and internal logic
Height 41 mm
Depth 15 mm
Width 35 mm
Net weight 0.012 kg

Environment 1

Immunity to microbreaks 10 ms
Show all 54 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number TMCR2AQ2C
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.6 cm
Package 1 Width 7.0 cm
Package 1 Length 3.5 cm
Package 1 Weight 20.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.815 kg
Unit Type of Package 3 P12
Number of Units in Package 3 1200
Package 3 Height 100 cm
Package 3 Width 125 cm
Package 3 Length 55 cm
Package 3 Weight 44 kg
Shipping weight 0.012 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TMCR2AQ2C

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the TMCR2AQ2C

What is the HS code of TMCR2AQ2C for customs?

The tariff (HS) code on file for TMCR2AQ2C is 853710.

Where does TMCR2AQ2C ship from, and how fast?

TMCR2AQ2C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
