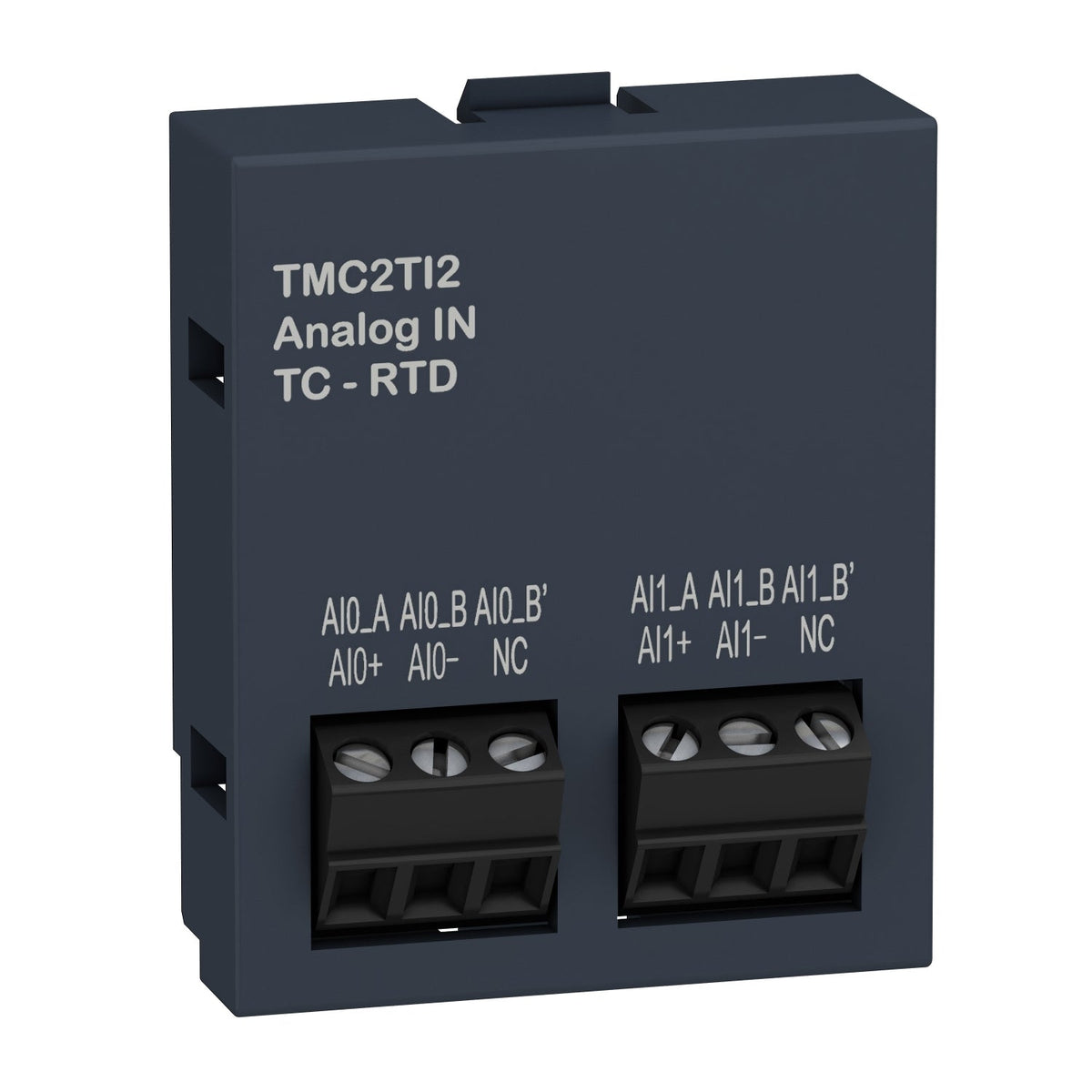

Modicon M221Schneider Electric TMC2TI2 Modicon M221 2 Temperature Inputs Cartridge PLC I/O Module
Modicon M221 temperature input cartridge, 2 channels, thermocouple/RTD, 14-bit resolution.
Description
About the TMC2TI2
About the TMC2TI2
The Schneider Electric TMC2TI2 is a Modicon M221 analog input cartridge that adds 2 dedicated temperature inputs at 14-bit resolution, covering thermocouple types J, K, R, S, B, T, N, E and C plus Pt100/Pt1000 and Ni100/Ni1000 RTD probes, to a Modicon M221C logic controller. Sampling duration is 125 ms for thermocouples and 250 ms for temperature probes, with 0.1 degree C LSB resolution.
Selection Notes
Use the TMC2TI2 when the M221C application only needs temperature sensing. A general-purpose current/voltage input cartridge in the same M221 range covers process signals instead, at coarser 12-bit resolution since it is not optimized for temperature measurement.
Specification
Full specification
Main 4
| Range of Product | Modicon M221 |
|---|---|
| Product or Component Type | Analogue input cartridge |
| Product Compatibility | Modicon M221C |
| Analogue input number | 2 |
Complementary 18
| Analogue input type | thermocouple - 200...1000 °C thermocouple J, thermocouple - 200...1300 °C thermocouple K, thermocouple 0...1760 °C thermocouple R, thermocouple 0...1760 °C thermocouple S, thermocouple 0...1820 °C thermocouple B, thermocouple - 200...400 °C thermocouple T, thermocouple - 200...1300 °C thermocouple N, thermocouple - 200...800 °C thermocouple E, thermocouple 0...2315 °C thermocouple C, Ni 100/Ni 1000 temperature probe - 60...180 °C, Pt 100 temperature probe - 200...850 °C, Pt 1000 temperature probe - 200...600 °C |
|---|---|
| Analogue input resolution | 14 bits |
| LSB value | 0.1 °C |
| Sampling duration | 125 ms thermocouple, 250 ms temperature probe |
| Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C) for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple K - 200...0 °C, +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple J - 200...0 °C, +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple E - 200...0 °C, +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple T - 200...0 °C, +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple N - 200...0 °C, +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple N 0...1300 °C, +/- 6 °C at 77 °F (25 °C) for thermocouple R, S 0...200 °C, +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple R, S 200...1760 °C, +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple C 0...2315 °C |
| Temperature Drift | +/- 0.02 %FS/°C |
| Repeat accuracy | +/- 0.5 %FS |
| Non-linearity | +/- 0.01 %FS |
| Cross talk | <= 1 LSB |
| Type of Cable | Twisted shielded pairs cable |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs |
| Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Insulation | Non-insulated between analogue input and internal logic |
| Height | 1.6 in (41 mm) |
| Depth | 0.6 in (15 mm) |
| Width | 1.4 in (35 mm) |
| Net Weight | 0.033 lb(US) (0.015 kg) |
| Input impedance | >= 1 MOhm |
Environment 1
| Immunity to microbreaks | 10 ms |
|---|
Show all 36 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | TMC2TI2 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480649158 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | JP |
|---|---|
| Shipping weight | 0.015 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
