Schneider Electric TMC2AQ2C Modicon M221 2 Analog Current Outputs Cartridge PLC I/O Module

% $-119.65

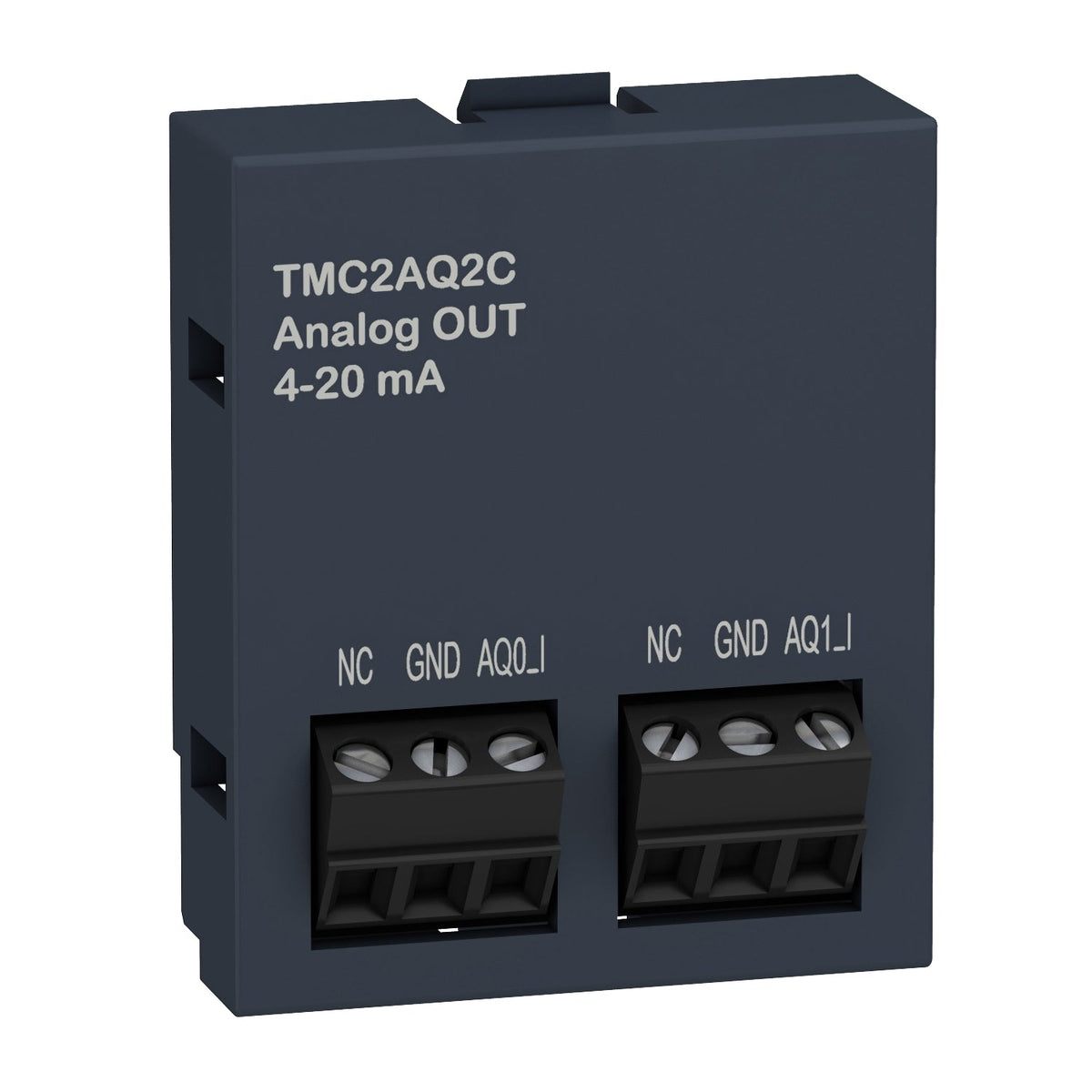

Schneider Electric TMC2AQ2C Modicon M221 analog output cartridge, 2 current channels
Schneider Electric TMC2AQ2C Modicon M221 analog output cartridge, 2 current channels

Schneider Electric TMC2AQ2C Modicon M221 2 Analog Current Outputs Cartridge PLC I/O Module

Brand: Schneider Electric
Reference No: TMC2AQ2C
Catalog No: TMC2AQ2C
Series: Modicon M221
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$119.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TMC2AQ2C is a Modicon M221 analog output cartridge that adds 2 current outputs (4-20 mA) at 12-bit resolution to a Modicon M221C logic controller, driving loads up to 500 ohms through 2 screw terminal blocks without external wiring. Absolute accuracy is 0.3% of full scale at 25 degrees C, with a 20 ms conversion time and 40 ms stabilisation time per channel.

Technical Specifications

Reference TMC2AQ2C
GTIN 3606480649097
Brand Schneider Electric
Range Modicon M221
Product Type Analogue output cartridge
Product Compatibility Modicon M221C
Analogue Output Number 2
Analogue Output Type Current 4-20 mA
Analogue Output Resolution 12-bit
Load Type Resistive
Load Impedance 500 ohms maximum
Conversion Time 20 ms
Stabilisation Time 40 ms
Absolute Accuracy Error plus or minus 1% FS / plus or minus 0.3% FS at 25 degrees C
Repeat Accuracy plus or minus 0.4% FS
Electrical Connection 2 screw terminal blocks, 3.81 mm pitch
Maximum Cable Distance 30 m (twisted shielded pair)
Insulation Non-insulated between analogue output and internal logic
Dimensions (W x D x H) 35 x 15 x 41 mm
Net Weight 0.015 kg

Certifications & Standards

  • CE
  • IACS E10
  • CSA
  • RCM
  • LR
  • ABS
  • DNV-GL
  • EAC
  • cULus
  • EN/IEC 61010-2-201
  • EN/IEC 61131-2
  • EN/IEC 60664-1

Selection Notes

Use the TMC2AQ2C for 4-20 mA current control signals, such as a VFD speed reference or valve positioner input. A companion voltage-output cartridge in the same M221 range covers 0-10 V signals instead, for receiving devices that need voltage rather than current.

Technical Details

Short Description
Modicon M221 analog output cartridge, 2 current outputs, 4-20mA, 12-bit resolution.
Mounting Type
Plug-in cartridge, Modicon M221C slot
Catalog No
TMC2AQ2C
Delivery Date (Days)
30 days
Model Number
TMC2AQ2C
Tariff Code
853710
