Schneider Electric TMC2AI2 Modicon M221 2 Analog Inputs Cartridge PLC I/O Module

% $-119.65

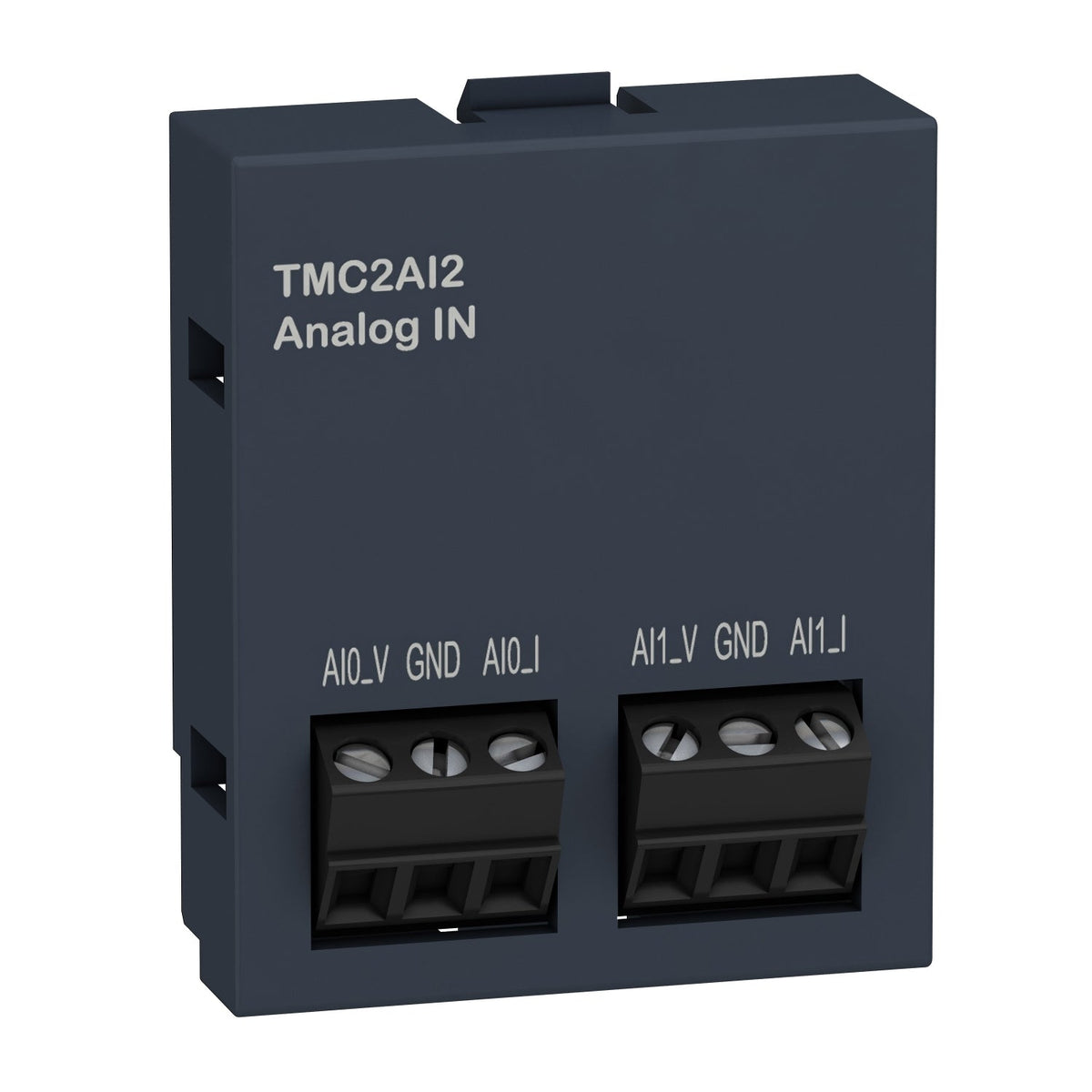

Schneider Electric TMC2AI2 Modicon M221 analog input cartridge, 2 channels
Schneider Electric TMC2AI2 Modicon M221 analog input cartridge, 2 channels

Schneider Electric TMC2AI2 Modicon M221 2 Analog Inputs Cartridge PLC I/O Module

Brand: Schneider Electric
Reference No: TMC2AI2
Catalog No: TMC2AI2
Series: Modicon M221
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$119.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TMC2AI2 is a Modicon M221 analog input cartridge that adds 2 current (0/4-20 mA) or voltage (0-10 V) inputs at 12-bit resolution to a Modicon M221C logic controller, plugging directly into the controller's cartridge slot without external wiring beyond the 2 screw terminal blocks. Absolute accuracy is 0.1% of full scale at 25 degrees C, with a 20 ms conversion time per channel.

Technical Specifications

Reference TMC2AI2
GTIN 3606480649080
Brand Schneider Electric
Range Modicon M221
Product Type Analogue input cartridge
Product Compatibility Modicon M221C
Analogue Input Number 2
Analogue Input Type Current 0/4-20 mA, Voltage 0-10 V
Analogue Input Resolution 12-bit
Conversion Time 20 ms
Sampling Duration 10 ms
Absolute Accuracy Error plus or minus 0.1% FS at 25 degrees C / plus or minus 1% FS
Repeat Accuracy plus or minus 0.5% FS
Input Impedance 250 ohms max (current) / 1 megohm min (voltage)
Electrical Connection 2 screw terminal blocks, 3.81 mm pitch
Maximum Cable Distance 30 m (twisted shielded pair)
Insulation Non-insulated between analogue input and internal logic
Dimensions (W x D x H) 35 x 15 x 41 mm
Net Weight 0.015 kg

Selection Notes

Use the TMC2AI2 when the M221C application needs 2 general-purpose current or voltage inputs. A dedicated temperature-input cartridge in the same M221 range covers thermocouple or RTD sensing instead, and separate output cartridges handle current or voltage output signals.

Technical Details

Short Description
Modicon M221 analog input cartridge, 2 channels, current or voltage, 12-bit resolution.
Mounting Type
Plug-in cartridge, Modicon M221C slot
Catalog No
TMC2AI2
Delivery Date (Days)
30 days
Model Number
TMC2AI2
Tariff Code
853710
