Schneider Electric TM3TM3 Modicon TM3 2 Analog Temperature Inputs 1 Analog Output PLC I/O Module

% $-257.99

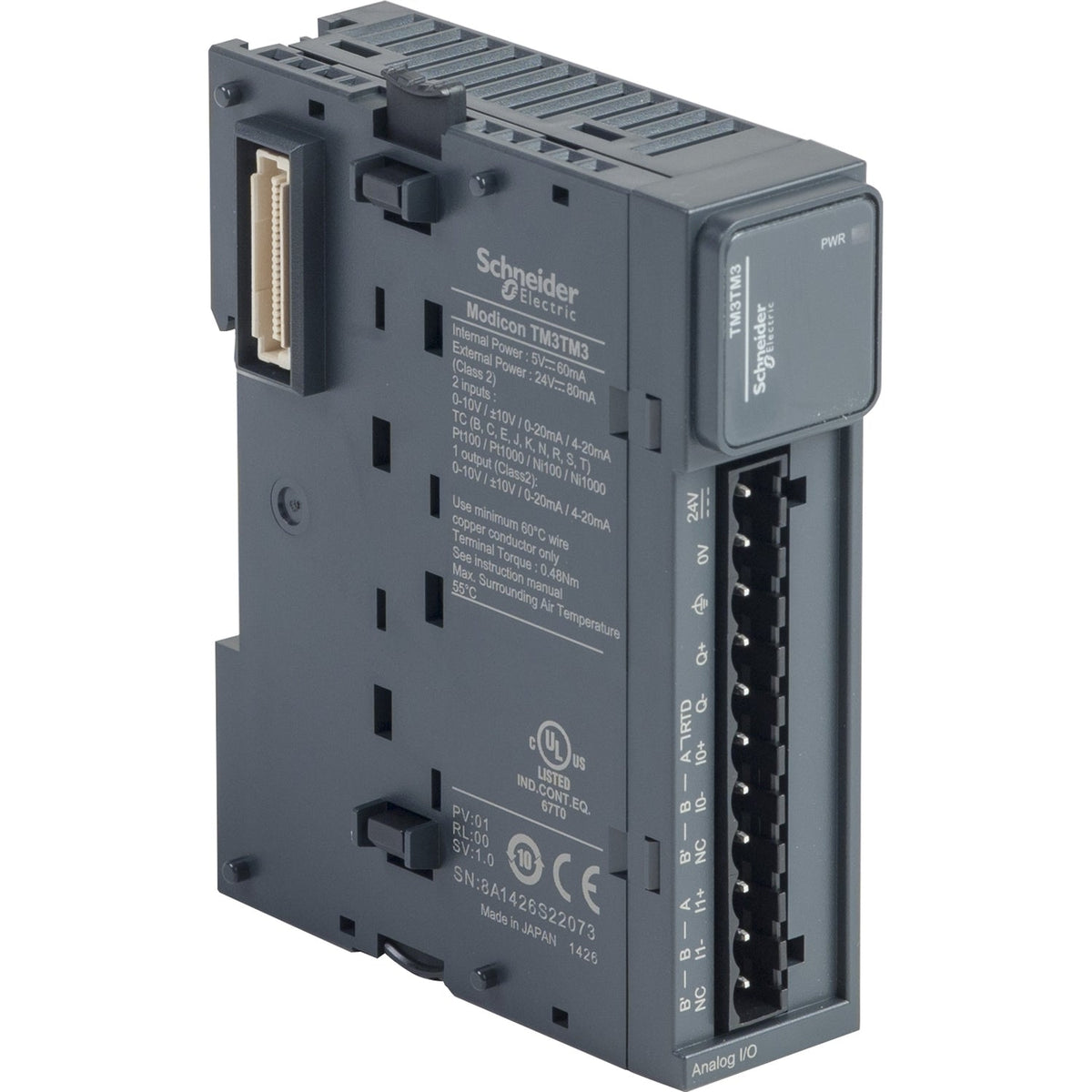

Schneider Electric TM3TM3 Modicon TM3 analog I/O module, 2 inputs 1 output
Schneider Electric TM3TM3 Modicon TM3 analog I/O module, 2 inputs 1 output

Schneider Electric TM3TM3 Modicon TM3 2 Analog Temperature Inputs 1 Analog Output PLC I/O Module

Brand: Schneider Electric
Reference No: TM3TM3
Catalog No: TM3TM3
Series: Modicon TM3
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$257.99

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3TM3 is a Modicon TM3 expansion module that combines 2 analog or temperature inputs (current, voltage, thermocouple or RTD, 16-bit) with 1 analog current/voltage output, adding mixed I/O to Modicon M221, M241, M251 and M262 logic controllers on a 24 V DC supply. Output resolution matches the inputs at 16-bit, with 0.1% full-scale accuracy on both channels at 25 degrees C.

Technical Specifications

Reference TM3TM3
GTIN 3606480649042
Brand Schneider Electric
Range Modicon TM3
Product Type Input/output analog module
Range Compatibility Modicon M221, M241, M251, M262
Analogue Input Number 2
Analogue Output Number 1
Analogue Input Type Current 0/4-20 mA, Voltage 0-10V / -10-10V, Thermocouple J/K/R/S/B/T/N/E/C, RTD Ni100/Ni1000, Pt100/Pt1000
Analogue Output Type Current 0/4-20 mA, Voltage 0-10V / -10-10V
Analogue Input Resolution 16-bit / 15-bit + sign
Absolute Accuracy Error plus or minus 0.1% FS at 25 degrees C (voltage/current input and output); varies by thermocouple type
Repeat Accuracy plus or minus 0.5% FS (input)
Load Impedance 1 kilohm (voltage output) / 300 ohm (current output)
Electrical Connection Removable screw terminal, 5.08 mm pitch
Insulation Input/output-to-supply 1500 V AC, input/output-to-logic 500 V AC
Current Consumption 55/60 mA at 5V DC, 55/80 mA at 24V DC
Mounting TH35-15 / TH35-7.5 DIN rail, panel mount
Dimensions (W x D x H) 23.6 x 70 x 90 mm
Net Weight 0.115 kg
IP Degree of Protection IP20
Operating Temperature -10...35 C vertical / -10...55 C horizontal

Certifications & Standards

  • CE
  • UKCA
  • RCM
  • EAC
  • cULus
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

The TM3TM3 combines input and output channels on a single module, useful when a panel needs both a sensor reading and a control signal, for example a VFD speed reference, without using two separate TM3 slots. Pick a dedicated input-only or output-only TM3 module instead when the application only needs one signal direction.

Technical Details

Short Description
Modicon TM3 expansion module, 2 analog/temperature inputs, 1 analog output, 16-bit.
Mounting Type
TH35-15 / TH35-7.5 DIN rail, panel mount
Protection Type
IP20
Catalog No
TM3TM3
Delivery Date (Days)
30 days
Model Number
TM3TM3
Tariff Code
853710
