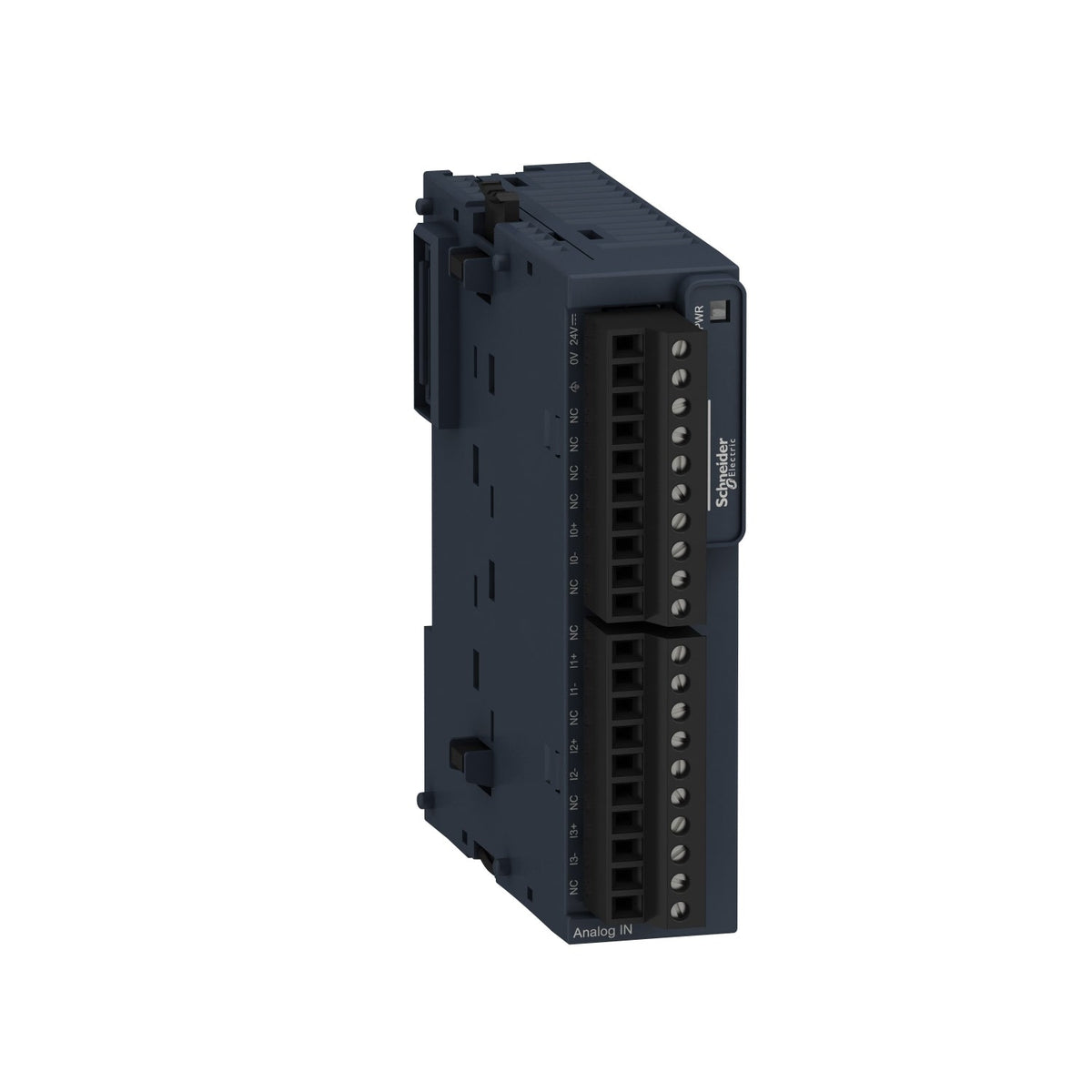

The Schneider Electric TM3TI4 is a Modicon TM3 expansion module that adds 4 analog inputs configurable for current, voltage, thermocouple or RTD temperature sensing, at 16-bit (or 15-bit plus sign) resolution, to Modicon M221, M241, M251 and M262 logic controllers running on a 24 V DC supply. Input impedance is 50 ohms on current ranges and 1 megohm on voltage ranges, with 0.2% full-scale accuracy at 25 degrees C.
Pick the TM3TI4 when the application needs only 4 channels, or a mix of current, voltage and thermocouple/RTD signal types on a single module. The TM3TI8T in the same range offers 8 dedicated temperature channels instead, so choose it when more temperature inputs are needed and current/voltage inputs are not.
| Range of Product | Modicon TM3 |
|---|---|
| Product or Component Type | Analog input module |
| Range Compatibility | Modicon M221, Modicon M241, Modicon M251, Modicon M262 |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA, Current 0...20 mA, Voltage 0...10 V, Voltage - 10...10 V, Thermocouple - 200...1000 °C thermocouple J, Thermocouple - 200...1300 °C thermocouple K, Thermocouple 0...1760 °C thermocouple R, Thermocouple 0...1760 °C thermocouple S, Thermocouple 0...1820 °C thermocouple B, Thermocouple - 200...400 °C thermocouple T, Thermocouple - 200...1300 °C thermocouple N, Thermocouple - 200...800 °C thermocouple E, Thermocouple 0...2315 °C thermocouple C, Temperature probe - 60...180 °C Ni 100/Ni 1000, Temperature probe - 200...850 °C Pt 100, Temperature probe - 200...600 °C Pt 1000 |
|---|---|
| Analogue input resolution | 16 bits, 15 bits + sign |
| Permissible continuous overload | 13 V voltage, 40 mA current |
| Input impedance | <= 50 Ohm, >= 1 MOhm |
| Sampling duration | 10 ms |
| Conversion time | 100 ms + 100 ms per channel + 1 controller cycle time thermocouple |
| Absolute accuracy error | +/- 0.2 % of full scale at 77 °F (25 °C) for analogue input voltage/current, +/- 0.2 % of full scale at 77 °F (25 °C) for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe, +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple C 0...2315 °C, +/- 6 °C at 77 °F (25 °C) for thermocouple R, S 0...200 °C, +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple R, S 200...1760 °C, +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple B 300...1820 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple K - 200...0 °C, +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple J - 200...0 °C, +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple E - 200...0 °C, +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple T - 200...0 °C, +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple N - 200...0 °C, +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple N 0...1300 °C |
| Repeat accuracy | +/-0.5 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| LSB value | 2.44 mV, 0...10 V, 4.88 mV, - 10...10 V, 4.88 µA, 0...20 mA, 3.91 µA, 4...20 mA, 0.1 °C |
| Insulation | Between output and supply 1500 V AC, Between output and internal logic 500 V AC |
| Immunity to microbreaks | 10 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Non-linearity | +/- 0.2 %FS |
| Typical current consumption | 45 mA 5 V DC, 50 mA 5 V DC, 35 mA 24 V DC, 40 mA 24 V DC |
| Local signalling | 1 LED green PWR |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Width | 0.9 in (23.6 mm) |
| Depth | 2.8 in (70 mm) |
| Net Weight | 0.24 lb(US) (0.11 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE |
| Product certifications | CE, UKCA, RCM, EAC, CULus, CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) horizontal installation), 14…95 °F (-10…35 °C) vertical installation) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn 11 ms |
| Part number | TM3TI4 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480649004 |
| Warranty (in months) | 18 |
|---|
| Country of origin | JP |
|---|---|
| Shipping weight | 0.11 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TM3TI4 is 853710.
The EAN (GTIN) of TM3TI4 is 3606480649004.
TM3TI4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
