Schneider Electric TM3DQ32TK Modicon TM3 32 Transistor Source HE10 PLC I/O Module

% $-396.33

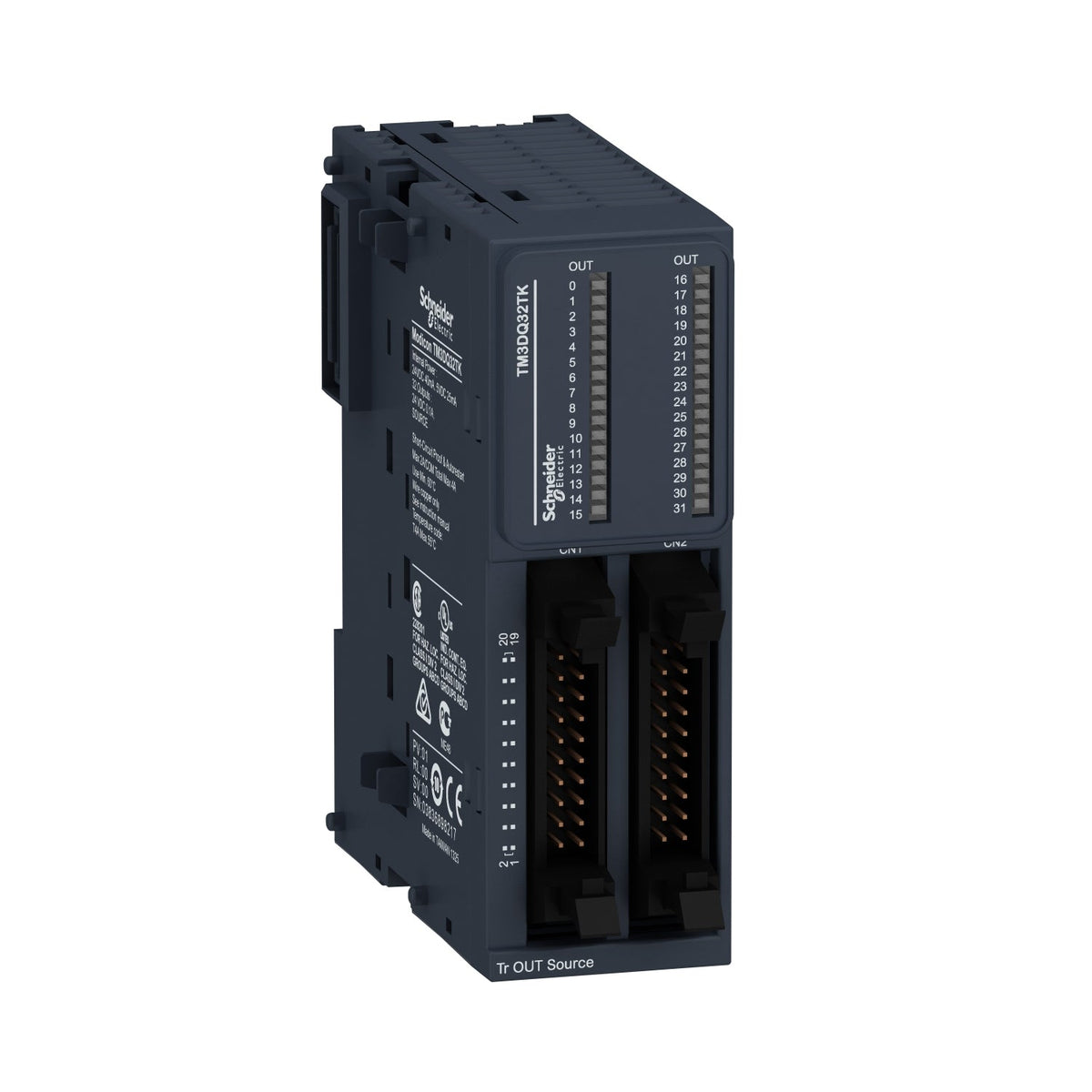

Schneider Electric TM3DQ32TK Modicon TM3 32 PNP transistor output module – HE10
Schneider Electric TM3DQ32TK Modicon TM3 32 PNP transistor output module – HE10

Schneider Electric TM3DQ32TK Modicon TM3 32 Transistor Source HE10 PLC I/O Module

Brand: Schneider Electric
Reference No: TM3DQ32TK
Catalog No: TM3DQ32TK
Series: Modicon TM3
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$396.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3DQ32TK is a Modicon TM3 discrete output module that adds 32 PNP (source) transistor outputs, rated 100 mA at 24V DC, to a Modicon M221, M241, M251 or M262 logic controller through a single HE10 connector. Each channel switches in 450 µs and carries an IP20 rating.

Technical Specifications

Reference TM3DQ32TK
Brand Schneider Electric
Range Modicon TM3
GTIN 3606480611513
Product Type Discrete output module
Compatibility Modicon M221, M241, M251, M262
Discrete Output Number 32 transistor, positive logic (source/PNP)
Discrete Output Voltage 24 V DC
Discrete Output Current 100 mA per transistor output
Response Time (On/Off) 450 µs / 450 µs max.
Maximum Leakage Current 0.1 mA
Maximum Voltage Drop < 0.4 V
Maximum Tungsten Load < 1.2 W
Electrical Connection HE-10 connector
Isolation (channels/bus) 500 V AC
IP Degree of Protection IP20
Dimensions (W x D x H) 33.5 x 81.3 x 90 mm
Net Weight 0.112 kg
Ambient Operating Temperature -10...35 °C vertical / -10...55 °C horizontal

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

The TM3DQ32TK doubles the TM3DQ16TK's channel count to 32 PNP transistor outputs in a single HE10 connector, at the same 100 mA per-channel and 450 µs response - useful for driving large solenoid banks or multiplexed indicator arrays without adding a second output module. The 33.5 mm housing is wider than the 16-channel module to accommodate the extra connector pins. For sinking (NPN) logic at the same 32-channel density, the TM3DQ32UK is the matching module.

Technical Details

Short Description
TM3DQ32TK: Modicon TM3 32-output PNP transistor module, 100mA, HE10 connector, IP20.
Mounting Type
35 mm DIN rail (TH35-15/TH35-7.5) or panel mount with fixing kit
Protection Type
IP20
Catalog No
TM3DQ32TK
Delivery Date (Days)
30 days
Model Number
32-Output Transistor Source (PNP) Module (HE10)
Tariff Code
853710
