Part number
TM3DQ16UK
$158.13 On request Dispatch — · From TürkiyeGet a Quote
Modicon TM3

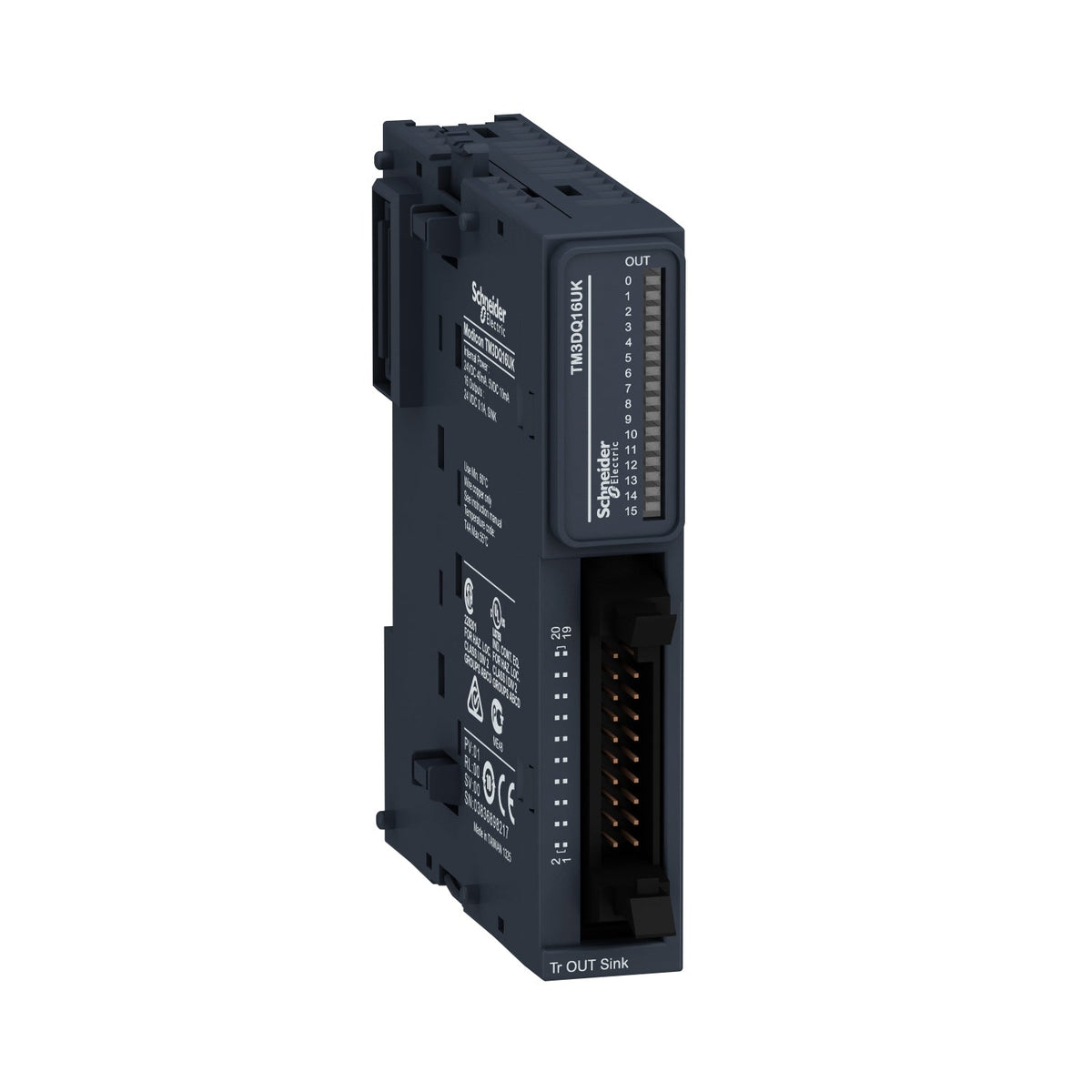

Schneider Electric TM3DQ16UK Modicon TM3 16 Transistor Sink HE10 PLC I/O Module

TM3DQ16UK: Modicon TM3 16-output NPN transistor module, 100mA, HE10 connector, IP20.

Range of Product
Modicon TM3
Product or Component Type
Discrete output module
Range Compatibility
Modicon M241, Modicon M251, Modicon M221, Modicon M262
Device Application
Industrial Application
Discrete output number
16
Discrete output logic
Negative logic (sink)
EAN
3606480611605
Description

About the TM3DQ16UK

The Schneider Electric TM3DQ16UK is a Modicon TM3 discrete output module that adds 16 NPN (sink) transistor outputs, rated 100 mA at 24V DC, to a Modicon M221, M241, M251 or M262 logic controller through a single HE10 connector. Each channel switches in 450 µs and carries an IP20 rating.

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

The TM3DQ16UK pairs NPN (sink) transistor logic with an HE10 connector for panels wired with a pre-made ribbon cable instead of screw terminals - the same 16-channel, 100 mA rating as the PNP TM3DQ16TK but with negative logic. Cable distance is limited to 5 m unshielded, shorter than the 30 m allowed on the screw-terminal TM3DQ16U. For source (PNP) logic in the same HE10 form factor, the TM3DQ16TK is the matching module.

Specification

Full specification

50 values · Last verified 30 Oct 2026

Main 7

Range of Product Modicon TM3
Product or Component Type Discrete output module
Range Compatibility Modicon M241, Modicon M251, Modicon M221, Modicon M262
Device Application Industrial Application
Discrete output number 16
Discrete output logic Negative logic (sink)
Discrete output voltage 24 V DCtransistor

Complementary 18

Discrete output number 16 transistor
Discrete output current 100 mA transistor output
Response time on output 450 µs maximum (turn on), 450 µs maximum (turn off)
Maximum leakage current 0.1 mA
Maximum voltage drop <0.4 V
Safety reliability data MTBF = 110 years 40 °C
Power supply type Electronic powered by internal bus
Typical current consumption 5 mA 5 V DC, 0 mA 24 V DC, 20 mA 5 V DC, 10 mA 24 V DC
Electrical connection HE-10 connector for outputs
Maximum cable distance between devices Unshielded cable <16.4 ft (5 m) transistor output
Isolation between channels and bus 500 V AC
Local signalling 1 LED per channel (green) for output status
Housing Colour Grey
Mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Height 3.5 in (90 mm)
Width 0.8 in (21.4 mm)
Depth 3.2 in (81.3 mm)
Net Weight 0.245 lb(US) (0.111 kg)

Environment 12

IP Degree of Protection IP20
Protective treatment None
Marking CE
Product certifications CE, CULus, UKCA, RCM, EAC, CULus HazLoc
Standards IEC 61131-2
Ambient air temperature for operation 14…95 °F (-10…35 °C) vertical installation), 14…131 °F (-10…55 °C) horizontal installation)
Ambient air temperature for storage -13…158 °F (-25…70 °C)
Relative humidity 10…95 % without condensation for operation, 10…95 % without condensation for storage
Operating altitude 0...6561.68 ft (0...2000 m)
Pollution degree 2
Vibration resistance 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail, 3.5 mm 5…8.4 Hz) on panel mounting, 3 gn 8.4…150 Hz) on panel mounting
Shock resistance 15 gn 11 ms
Show all 50 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number TM3DQ16UK
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480611605

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin TW
Shipping weight 0.111 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TM3DQ16UK

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • EAC
  • IEC 61131-2
Quick answers

Questions about the TM3DQ16UK

What is the HS code of TM3DQ16UK for customs?

The tariff (HS) code on file for TM3DQ16UK is 853710.

What is the EAN of TM3DQ16UK?

The EAN (GTIN) of TM3DQ16UK is 3606480611605.

Where does TM3DQ16UK ship from, and how fast?

TM3DQ16UK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
