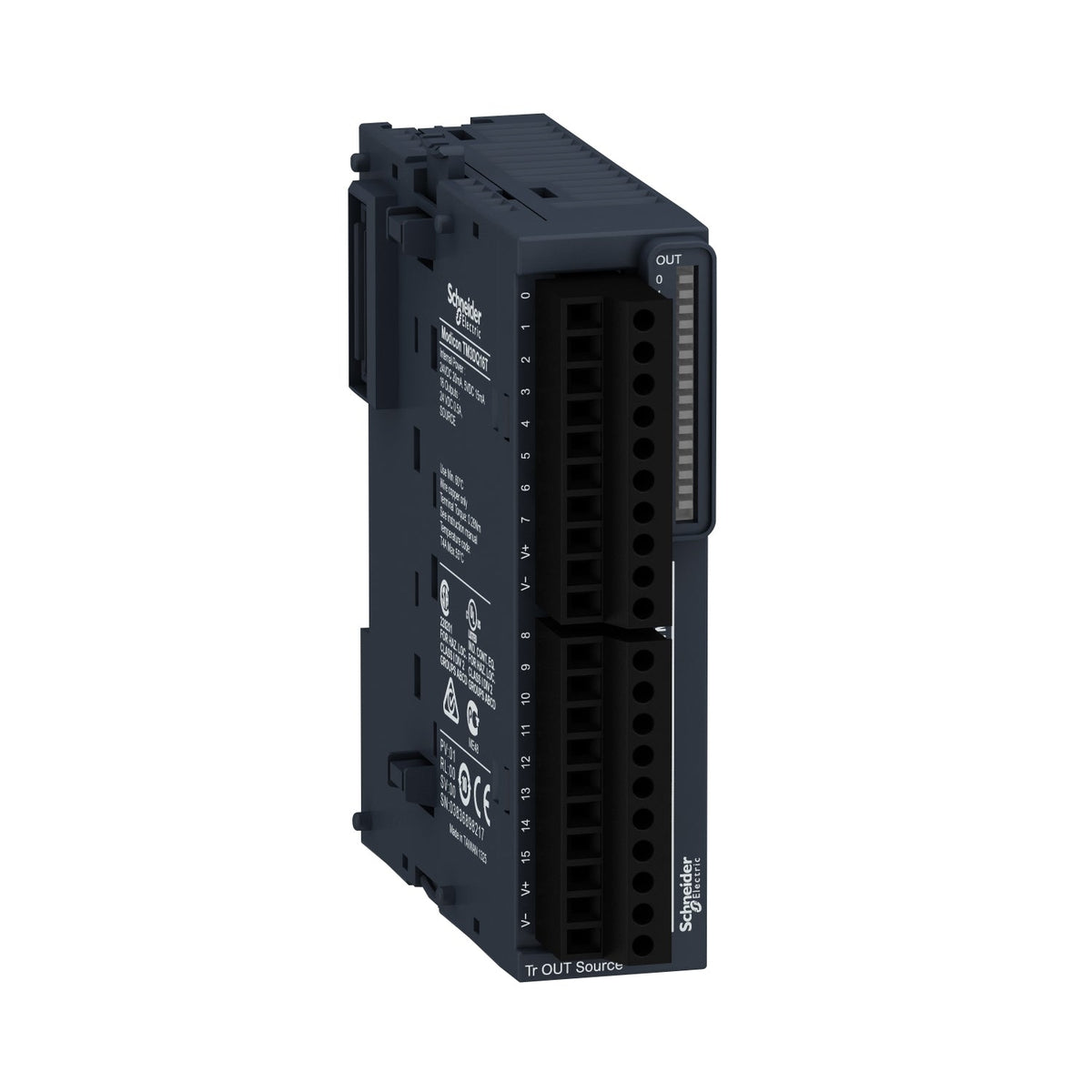

Schneider Electric TM3DQ16T Modicon TM3 16 Transistor Source Screw Terminal PLC I/O Module

TM3DQ16T: Modicon TM3 16-output PNP transistor module, 500mA, source logic, screw terminal, IP20.

Range of Product
Modicon TM3
Product or Component Type
Discrete output module
Range Compatibility
Modicon M241, Modicon M251, Modicon M221, Modicon M262
Device Application
Industrial Application
Discrete output number
16
Discrete output logic
Positive logic (source)
EAN
3606480611483
Description

About the TM3DQ16T

The Schneider Electric TM3DQ16T is a Modicon TM3 discrete output module that adds 16 PNP (source) transistor outputs, rated 500 mA at 24V DC, to a Modicon M221, M241, M251 or M262 logic controller. Each channel switches in 450 µs and wires through a removable screw terminal block with 3.81 mm pitch.

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

The TM3DQ16T sources current from each of its 16 transistor outputs (PNP), switching 500 mA per channel in 450 µs - fast enough for stepper/servo step-and-direction lines or high-cycle-rate pilot devices that a relay module's 10 ms response can't match. Its 57-year MTBF at 40 °C reflects the higher switching duty of transistor outputs versus the relay-output TM3DQ16R. For sinking (NPN) loads instead, the TM3DQ16U provides the same 16-channel count with negative logic; for an HE10 ribbon-cable connection with the same PNP logic, the TM3DQ16TK is the matching module.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 7

Range of Product Modicon TM3
Product or Component Type Discrete output module
Range Compatibility Modicon M241, Modicon M251, Modicon M221, Modicon M262
Device Application Industrial Application
Discrete output number 16
Discrete output logic Positive logic (source)
Discrete output voltage 24 V DCtransistor

Complementary 20

Discrete output number 16 transistor
Discrete output current 500 mA transistor output
Response time on output 450 µs maximum (turn on), 450 µs maximum (turn off)
Maximum leakage current 0.1 mA
Maximum voltage drop <0.4 V
Maximum tungsten load <3 W transistor
Safety reliability data MTBF = 57 years 40 °C
Power supply type Electronic powered by internal bus
Typical current consumption 5 mA 5 V DC, 0 mA 24 V DC, 20 mA 5 V DC, 10 mA 24 V DC
Electrical connection 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs
Maximum cable distance between devices Unshielded cable <98.4 ft (30 m) transistor output
Isolation between channels and bus 500 V AC
Local signalling 1 LED per channel (green) for output status
Housing Colour Grey
AWG gauge 0.0002…0.002 in² (0.14…1.5 mm²) / 26 AWG...16 AWG with solid cable
Mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Height 3.5 in (90 mm)
Width 1.08 in (27.4 mm)
Depth 3.3 in (84.6 mm)
Net Weight 0.24 lb(US) (0.11 kg)

Environment 12

IP Degree of Protection IP20
Protective treatment None
Marking CE
Product certifications CE, CULus, UKCA, RCM, EAC, CULus HazLoc
Standards IEC 61131-2
Ambient air temperature for operation 14…95 °F (-10…35 °C) vertical installation), 14…131 °F (-10…55 °C) horizontal installation)
Ambient air temperature for storage -13…158 °F (-25…70 °C)
Relative humidity 10…95 % without condensation for operation, 10…95 % without condensation for storage
Operating altitude 0...6561.68 ft (0...2000 m)
Pollution degree 2
Vibration resistance 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail, 3.5 mm 5…8.4 Hz) on panel mounting, 3 gn 8.4…150 Hz) on panel mounting
Shock resistance 15 gn 11 ms
Show all 52 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number TM3DQ16T
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480611483

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin TW
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
