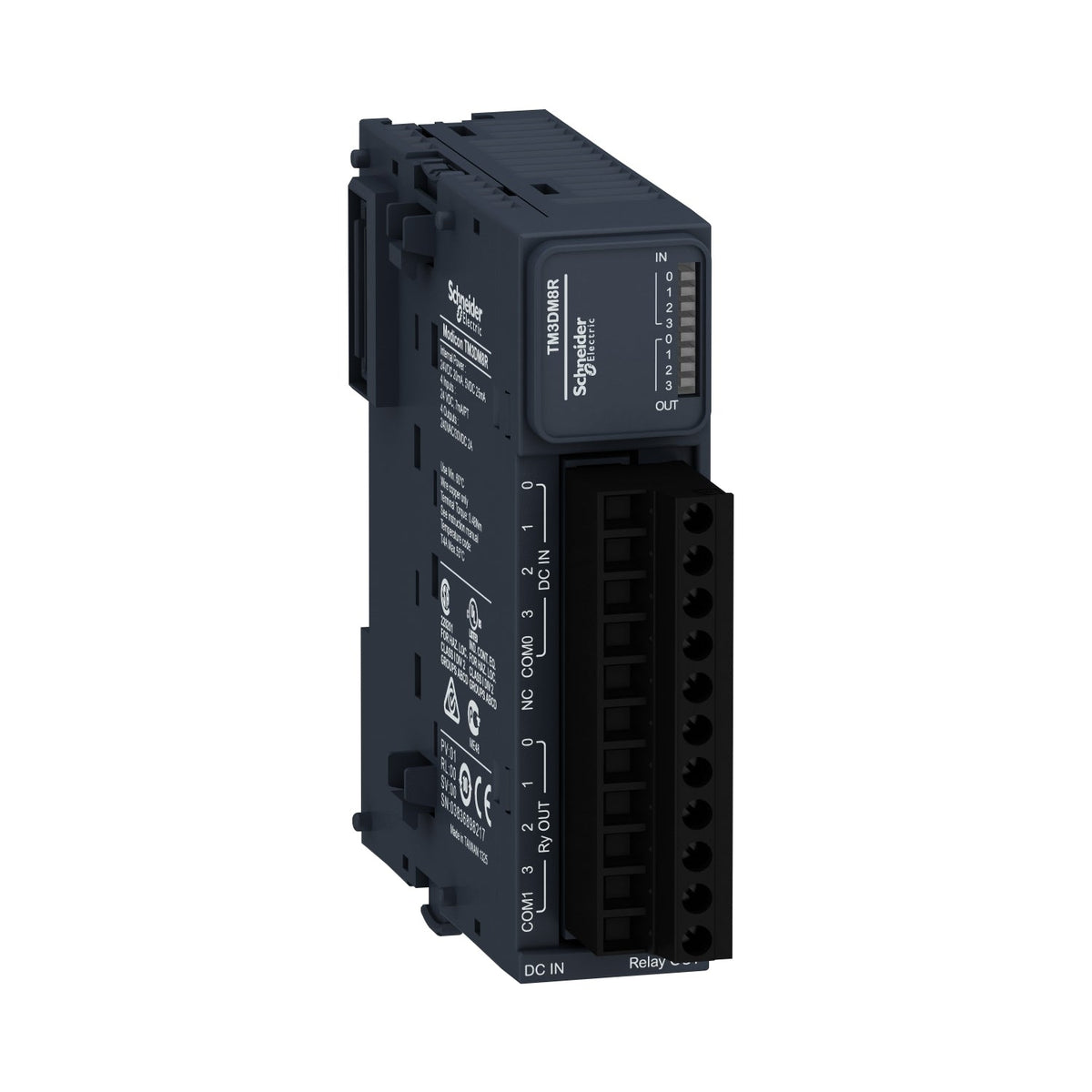

The Schneider Electric TM3DM8R is a Modicon TM3 mixed I/O module that adds 4 sink/source 24V DC inputs and 4 relay outputs (2 A) to a Modicon M221, M241, M251 or M262 logic controller. It wires through a removable screw terminal block with 5.08 mm pitch shared by inputs and outputs, and carries an IP20 rating.
The TM3DM8R suits applications that need only a small mixed block - 4 inputs plus 4 relay outputs on a single 27.4 mm module - instead of the larger 16DI/8DO TM3DM24R. Its relay outputs switch small contactors or indicator loads directly from the module. Where the machine needs more than 4 inputs or 4 outputs, the TM3DM24R provides the higher-density 16DI/8DO option in the same product family.
| Range of Product | Modicon TM3 |
|---|---|
| Product or Component Type | Discrete I/O module |
| Range Compatibility | Modicon M241, Modicon M251, Modicon M221, Modicon M262 |
| Device Application | Industrial Application |
| Discrete input number | 4 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete output number | 4 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V ACrelay outputs, 240 V DCrelay outputs |
| Discrete input compatibility | 4 conforming to IEC 61131-2 Type 1 |
|---|---|
| Discrete input current | 7 mA |
| Voltage state 1 guaranteed | Input 15...28.8 V DC |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 1 guaranteed | >= 2.5 mA input |
| Current state 0 guaranteed | <= 1 mA input |
| Input impedance | 3.4 kOhm |
| Response time on input | 4 ms (maximum (turn on)), 4 ms (maximum (turn off)) |
| Discrete output number | 4 relay normally open |
| Discrete output current | 2000 mA relay output |
| Minimum switching current | 10 mA 5 V DC |
| Response time on output | <= 10 ms maximum (turn on), <= 5 ms maximum (turn off) |
| Mechanical durability | 20000000 cycles |
| Safety reliability data | MTBF = 310 years 40 °C |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 5 mA 5 V DC, 0 mA 24 V DC, 65 mA 5 V DC |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) regular input |
| Local signalling | 1 LED per channel (green) for I/O state |
| Housing Colour | Grey |
| AWG gauge | 0.0003…0.004 in² (0.2…2.5 mm²) / 24 AWG...14 AWG with solid cable |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Width | 1.08 in (27.4 mm) |
| Depth | 3.3 in (84.6 mm) |
| Net Weight | 2.09 lb(US) (0.95 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE, CULus, UKCA, RCM, EAC, CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | 14…95 °F (-10…35 °C) vertical installation), 14…131 °F (-10…55 °C) horizontal installation) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 % without condensation for operation, 10…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail, 3.5 mm 5…8.4 Hz) on panel mounting, 3 gn 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn 11 ms |
| Part number | TM3DM8R |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480611520 |
| Warranty (in months) | 18 |
|---|
| Country of origin | TW |
|---|---|
| Shipping weight | 0.95 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
