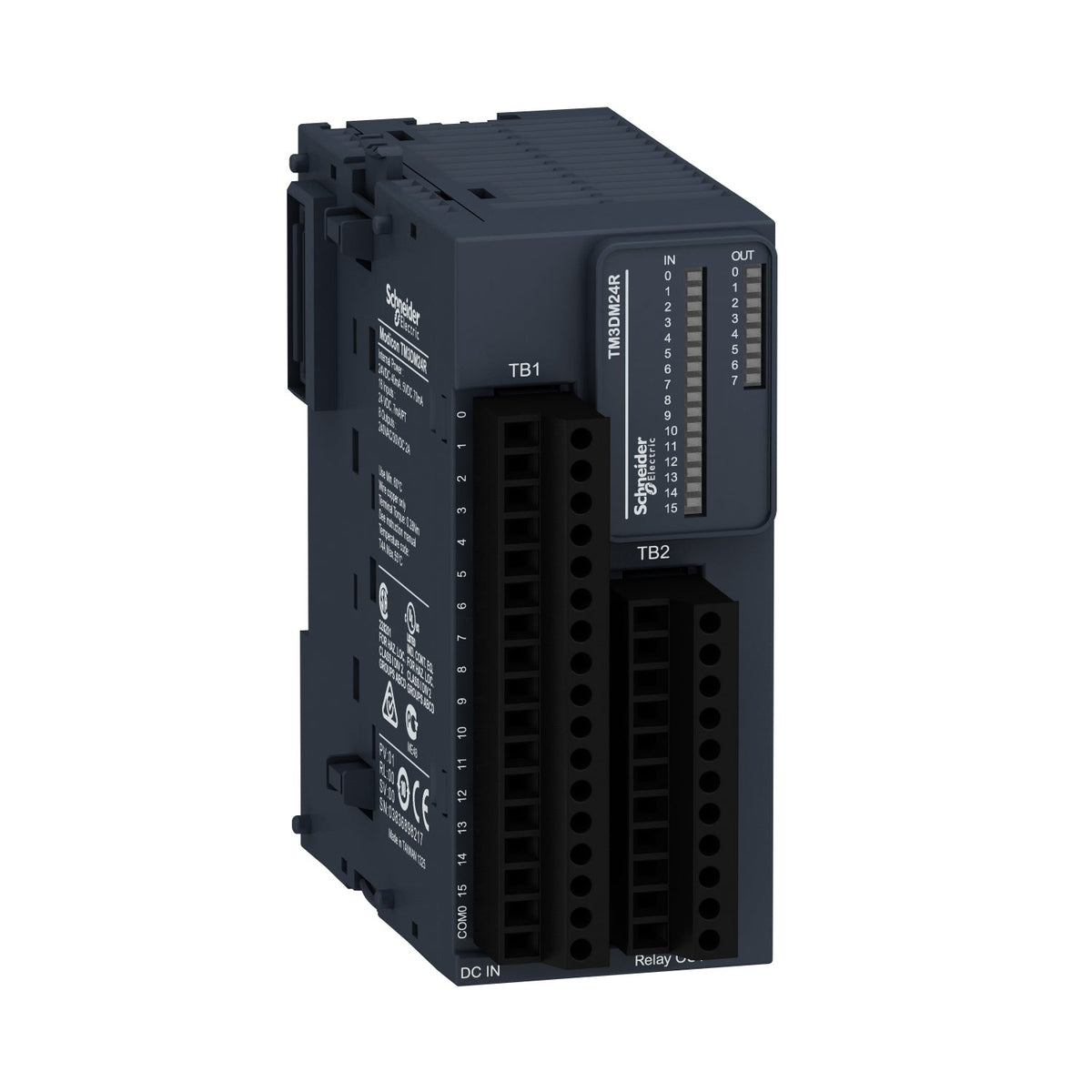

Schneider Electric TM3DM24R Modicon TM3 16DI/8DO Relay Screw Terminal PLC I/O Module

TM3DM24R: Modicon TM3 16 DI (24V DC) + 8 relay DO mixed I/O module, screw terminal, IP20.

Range of Product
Modicon TM3
Product or Component Type
Discrete I/O module
Range Compatibility
Modicon M241, Modicon M251, Modicon M221, Modicon M262
Device Application
Industrial Application
Discrete input number
16
Discrete input logic
Sink or source (positive/negative)
EAN
3606480611544
Description

About the TM3DM24R

The Schneider Electric TM3DM24R is a Modicon TM3 mixed I/O module that adds 16 sink/source 24V DC inputs and 8 relay outputs (2 A) to a Modicon M221, M241, M251 or M262 logic controller. It wires through removable screw terminal blocks with 3.81 mm pitch and carries an IP20 rating.

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

The TM3DM24R combines 16 inputs with 8 relay outputs in one module, useful where a machine needs both digital sensing and dry-contact switching - for example driving contactor coils or pilot lights - without pairing a separate DI and DO module on the rail. Its 2 A relay outputs can switch contactors directly, and the 3.81 mm screw terminals match the same wiring pitch as the TM3DI16 input module for consistent panel wiring. For a smaller mixed module, the TM3DM8R covers 4 inputs and 4 relay outputs instead.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 9

Range of Product Modicon TM3
Product or Component Type Discrete I/O module
Range Compatibility Modicon M241, Modicon M251, Modicon M221, Modicon M262
Device Application Industrial Application
Discrete input number 16
Discrete input logic Sink or source (positive/negative)
Discrete output number 8
Discrete output logic Positive or negative
Discrete output voltage 24 V DCrelay outputs, 240 V ACrelay outputs

Complementary 25

Discrete input compatibility 16 conforming to IEC 61131-2 Type 1
Discrete input current 7 mA
Voltage state 1 guaranteed Input 15...28.8 V DC
Voltage state 0 guaranteed 0...5 V input
Current state 1 guaranteed >= 2.5 mA input
Current state 0 guaranteed <= 1 mA input
Input impedance 3.4 kOhm
Response time on input 4 ms (maximum (turn on)), 4 ms (maximum (turn off))
Discrete output number 8 relay normally open
Discrete output current 2000 mA relay output
Minimum switching current 10 mA 5 V DC
Response time on output <= 10 ms maximum (turn on), <= 5 ms maximum (turn off)
Mechanical durability 20000000 cycles
Safety reliability data MTBF = 130 years 40 °C
Power supply type Electronic powered by internal bus
Typical current consumption 5 mA 5 V DC, 0 mA 24 V DC, 65 mA 5 V DC
Electrical connection 17 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, 11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs
Maximum cable distance between devices Unshielded cable <98.4 ft (30 m) regular input
Local signalling 1 LED per channel (green) for I/O state
Housing Colour Grey
AWG gauge 0.0003…0.002 in² (0.2…1.5 mm²) / 26 AWG...16 AWG with solid cable
Mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Height 3.5 in (90 mm)
Width 1.7 in (42.9 mm)
Depth 3.3 in (84.6 mm)

Environment 12

IP Degree of Protection IP20
Protective treatment None
Marking CE
Product certifications CE, CULus, UKCA, RCM, EAC, CULus HazLoc
Standards IEC 61131-2
Ambient air temperature for operation 14…95 °F (-10…35 °C) vertical installation), 14…131 °F (-10…55 °C) horizontal installation)
Ambient air temperature for storage -13…158 °F (-25…70 °C)
Relative humidity 10…95 % without condensation for operation, 10…95 % without condensation for storage
Operating altitude 0...6561.68 ft (0...2000 m)
Pollution degree 2
Vibration resistance 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail, 3.5 mm 5…8.4 Hz) on panel mounting, 3 gn 8.4…150 Hz) on panel mounting
Shock resistance 15 gn 11 ms
Show all 59 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number TM3DM24R
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480611544

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin TW
Shipping weight 0.276 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
