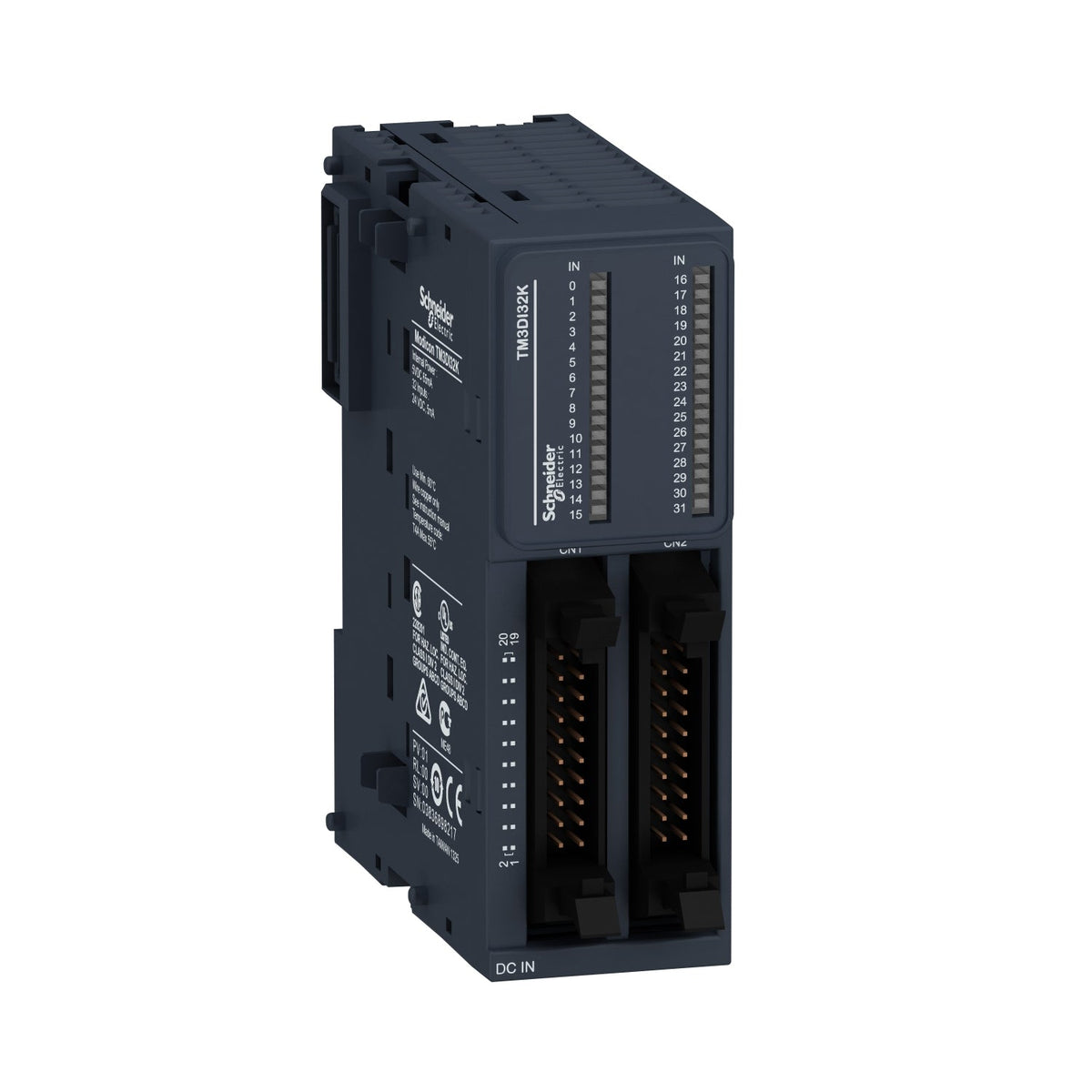

The Schneider Electric TM3DI32K is a Modicon TM3 discrete input module that adds 32 sink/source 24V DC inputs to a Modicon M221, M241, M251 or M262 logic controller through a single HE10 connector. Each channel conforms to IEC 61131-2 Type 3, switches in 4 ms, and draws 5 mA.
Specify the TM3DI32K where the machine needs 32 24V DC inputs on a single HE10 connector rather than stacking two 16-input modules - it halves the module count on the DIN rail for high-channel-count applications. MTBF drops to 130 years at 40 °C versus 250 years on the 16-input TM3DI16K because of the doubled channel density. Where only 16 inputs are needed, the TM3DI16K or screw-terminal TM3DI16 are the smaller alternatives.
| Range of Product | Modicon TM3 |
|---|---|
| Product or Component Type | Discrete input module |
| Range Compatibility | Modicon M241, Modicon M251, Modicon M221, Modicon M262 |
| Device Application | Industrial Application |
| Discrete input number | 32 |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input compatibility | 32 conforming to IEC 61131-2 type 3 |
|---|---|
| Discrete input current | 5 mA |
| Voltage state 1 guaranteed | 15...28.8 V DC |
| Voltage state 0 guaranteed | 0...5 V DC |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1 mA |
| Input impedance | 4.4 kOhm |
| Response time on input | 4 ms (maximum (turn on)), 4 ms (maximum (turn off)) |
| Safety reliability data | MTBF = 130 years 40 °C |
| Sensor power supply | 19.2…28.8 V |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 34 mA 5 V DC, 5 mA |
| Electrical connection | HE-10 connector for inputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) regular input |
| Isolation between group | 500 V AC |
| Isolation between channels and bus | 500 V AC |
| Local signalling | 1 LED per channel (green) for input status |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Width | 1.3 in (33.5 mm) |
| Depth | 3.2 in (81.3 mm) |
| Net Weight | 0.2 lb(US) (0.1 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE, CULus, UKCA, RCM, EAC, CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | 14…95 °F (-10…35 °C) vertical installation), 14…131 °F (-10…55 °C) horizontal installation) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 % without condensation for operation, 10…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail, 3.5 mm 5…8.4 Hz) on panel mounting, 3 gn 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn 11 ms |
| Part number | TM3DI32K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480611414 |
| Warranty (in months) | 18 |
|---|
| Country of origin | TW |
|---|---|
| Shipping weight | 0.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
